Quick Hitches
Quick Hitches

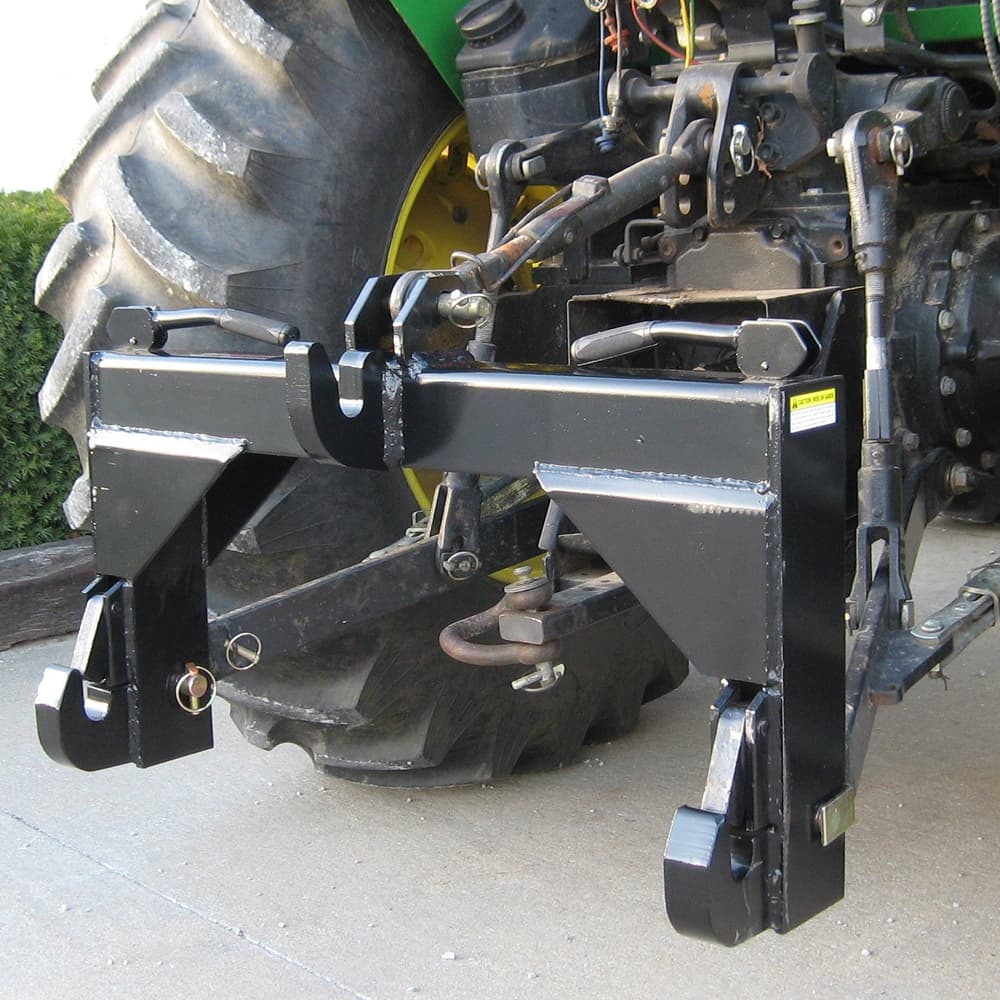

Worksaver Quick Hitches are built for fast, reliable and easy connection (or disconnection) of 3-pt. implements. These Quick Hitches are built to work with implements built to ASAE 3-pt. hitch standards (Cat. I, II, or III). All Quick Hitches feature high strength tubing for torsional strength.
Over-center spring-loaded mechanism provides a positive lock yet easy release. A tapered top hitch point bracket allows for easier connection.

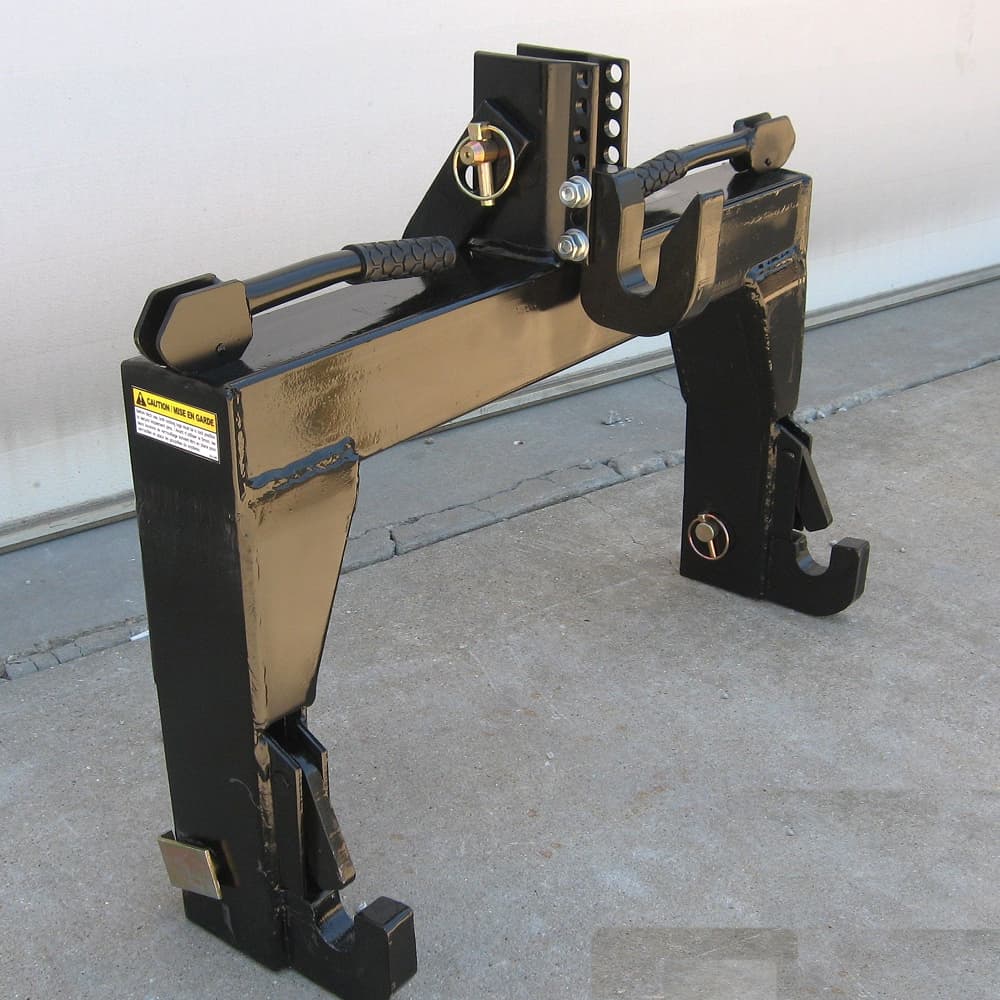

QH-101 Cat. I Quick Hitch

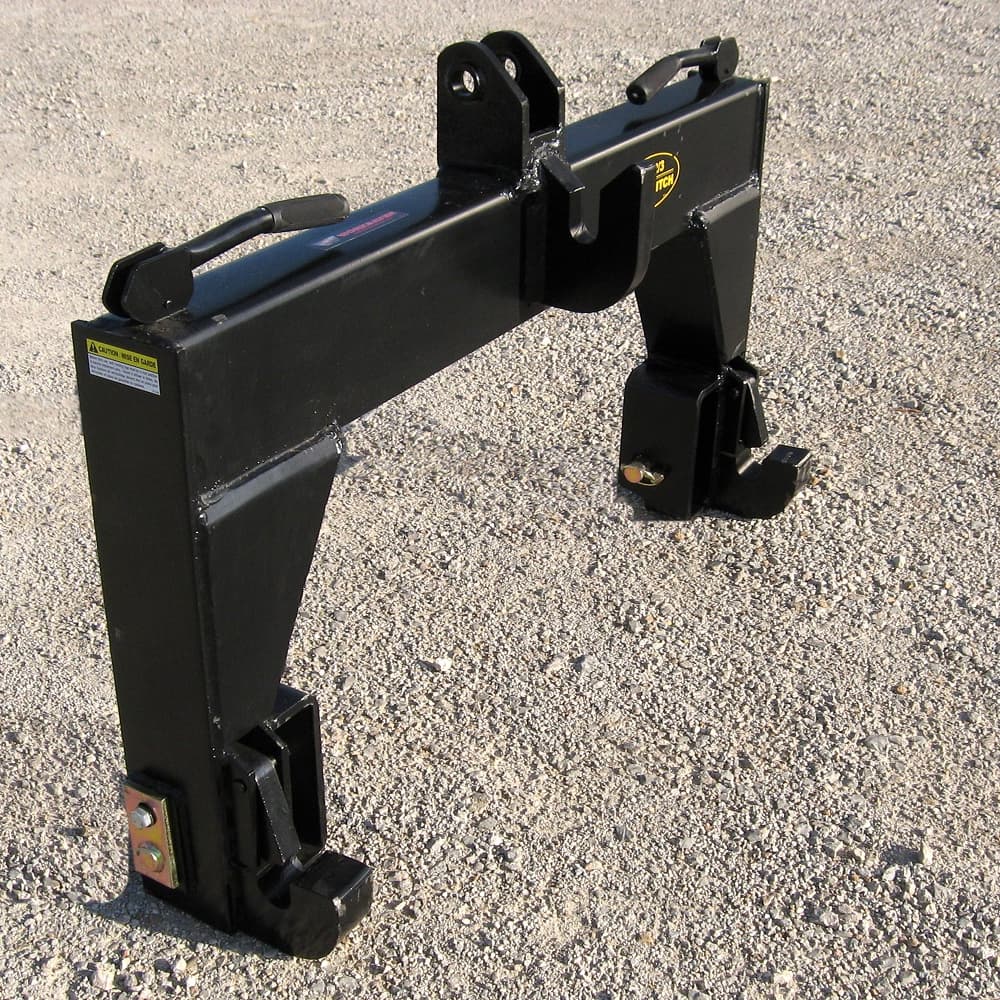

QH-1023 Cat. II to Cat. III Quick Hitch

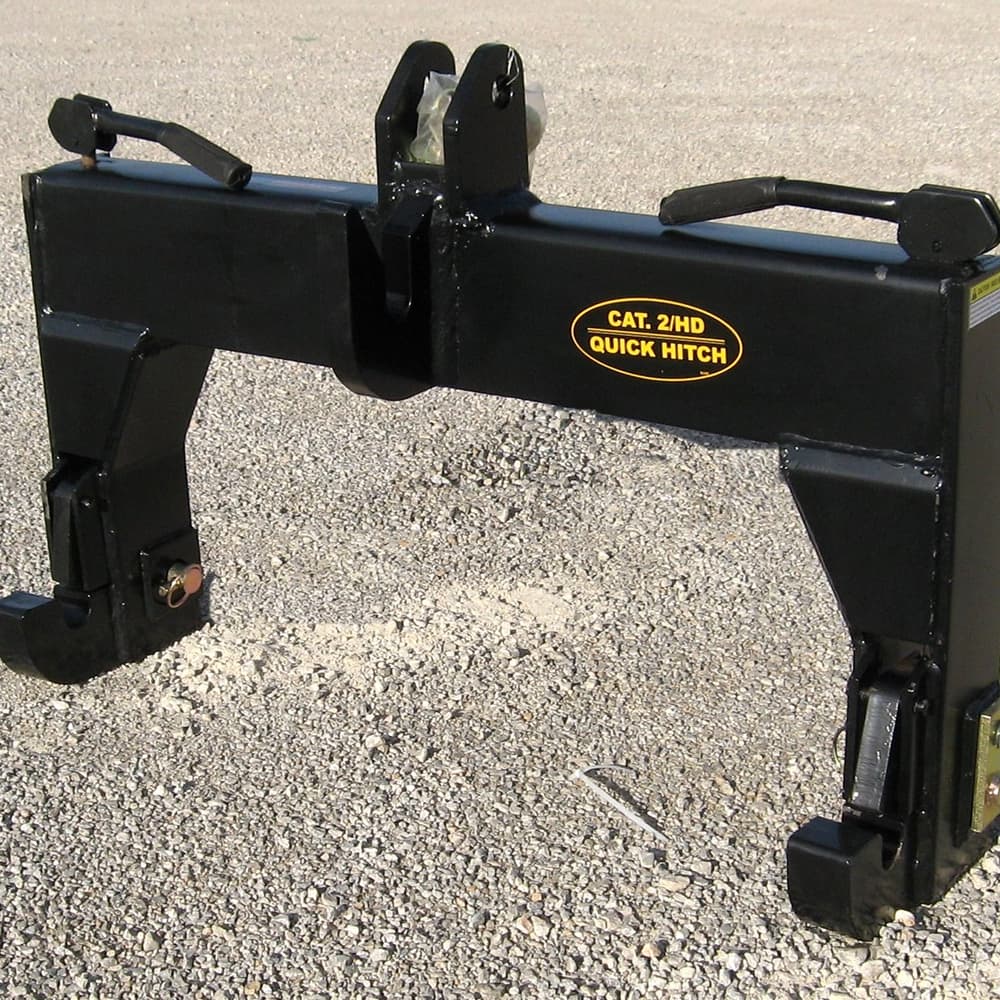

QH-107HD Cat. II Quick Hitch
Quick Hitch Model Specific Details
Model
Item #
Description
Weight
QH-101
862840
Cat. I - with adapter (up to 50HP)
76 lbs.
QH-102
862845
Cat. II - with adapter (up to 100HP)
134 lbs.
QH-107HD
862850
Cat. II HD - with adapter (up to 150HP)
160 lbs.
QH-103
862855
Cat. III - (up to 225HP)
182 lbs.
QH-106N
862860
Cat. III Narrow - (up to 225HP)
176 lbs.
QH-1023
862880
Allows the use of the Cat. III implements on tractors with Cat. II hitches
185 lbs.
Bushing Kit
862500
Cat. I adapter bushing kit (7/8" to 1-7/16") for use with QH-101, includes two bushings and roll pins
3.20 lbs.
Bushing Kit
862530
Cat. II adapter bushing kit (1-1/8" to 1-7/16") for use with QH-102 & QH-107HD, includes two bushings and roll pins
3 lbs.

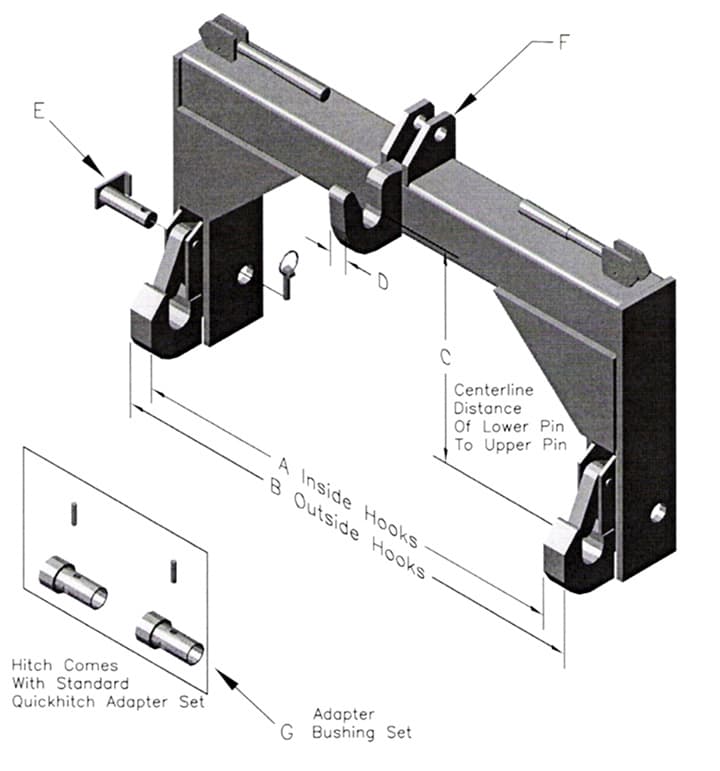

Quick Hitch Specifications
Model
A
B
C
D
E
F
G
Weight
QH-101
27.25
29.50
14.50 - 17.50
1.25
7/8
3/4
7/8" to 1-7/16"
76 lbs.
QH-102
32.75
36.25
14.88
1.25
1-1/8
1
1-1/8" to 1-7/16"
134 lbs.
QH-107HD
32.50
37.75
14.88
1.25
1-1/8
1-1/4
1-1/8" to 1-7/16"
160 lbs.
QH-103
38.50
42.75
19.00
1.25
1-7/16
1-1/4
Not Required
182 lbs.
QH-106N
33.25
37.50
19.00
1.25
1-7/16
1-1/4
Not Required
176 lbs.
QH-1023
38.50
42.75
19.00
1.25
1-7/16
1-1/4
Not Required
185 lbs.
NOTICE: Worksaver Inc. has a corporate policy of continous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
