Telehandler Attachments

Integrated-frame bale spears manufactured to mount to select OEM telehandler mounts, for handling round and rectangular bales.

Download the Brochure

JCB Telehandlers with JCB Q-Fit Quick Attach

For Models JCB 525, 530, 532, 536, 540, 550, 5508, 505-19, 505-22, 506-36, 508-40,506-23TC, 508-66TC, 509-23STC, 509-45STC, 510-44STC, 510-55STC, 512-26TC, 526-56AGRI, 527-58AGRI, 535-95AGRI, 536-60AGI, 536-60AGRI Plus, 541-70AGRI Plus, 560-80AGRI Plus & old style 520, 525

Model

Description

X-152JCBQ

Single spear bale spear for JCB Q-Fit. Single 55 mm spear with useable length of 52-inches for round bales. Rated at 3,000 lbs. Item # 833580, weight 319 lbs.

X-242JCBQ

Dual bolt-in forged spears spaced 34” apart, with useable length of 42”. Fits JCB Q-Fit Rated at 3,800 lbs. For round bales. Item # 833585, weight 275 lbs.

X-326JCBQ

Triple bolt-in forged spears spaced 26” apart, useable length of 26”. Fits JCB Q-Fit Rated at 3,000 lbs. For Mid-size square bales. Item # 833590, weight 272 lbs.

X-342JCBQ

Triple bolt-in forged spears spaced 26” apart, useable length of 42”. Fits JCB Q-Fit Rated at 4,000 lbs. For large square bales. Item # 833594 weight 295 lbs.

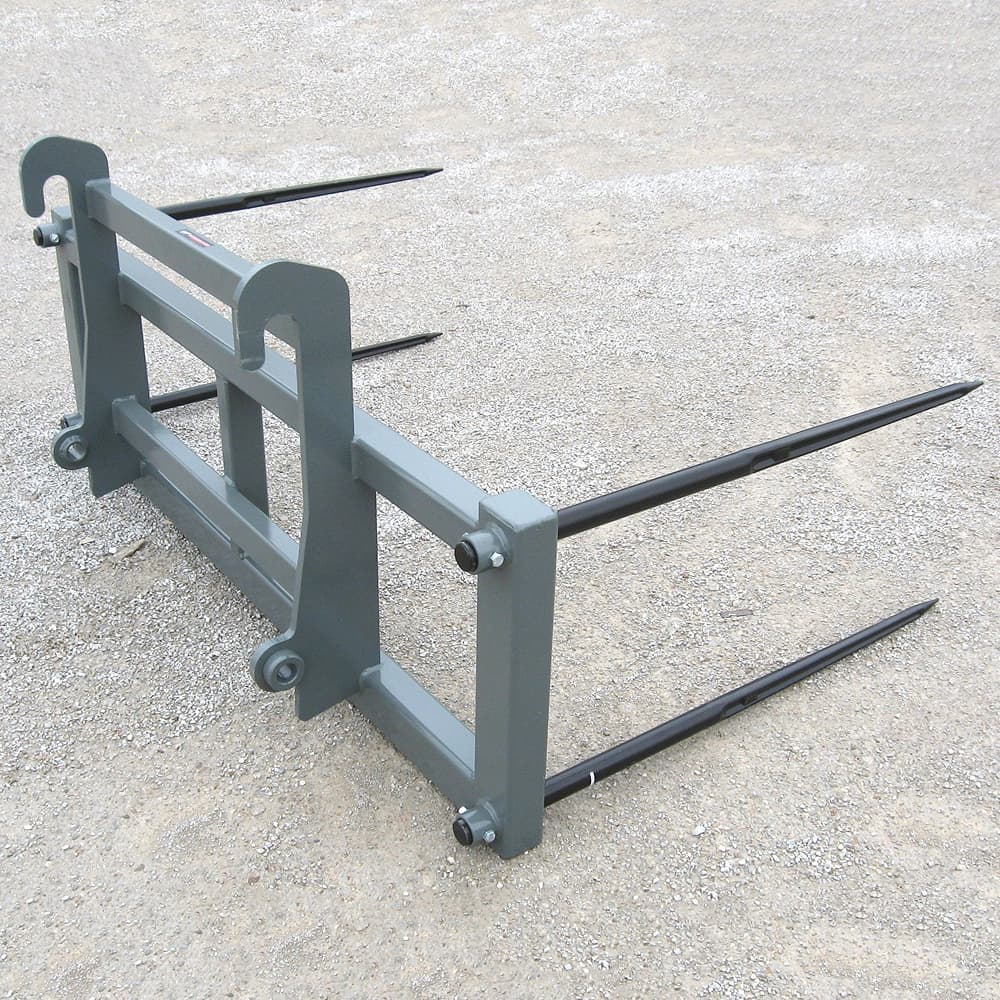

X-642JCBQ

Transport two 6’ diameter bales at once Frame size 76”x 24” w/ 4-bolt-in spears, useable length 42” for JCB Q-Fit. Item # 833595, weight 358 lbs.

Manitou Telehandlers with OEM Quick Attach

For Manitou models MLT-625, MLT-634, MLT-840, MLT-960, Also fits Gehl Models CT-516, CT-618, CT-723. Also fits New Holland Models LM-435 (Blue), LM-5040, LM-5050, LM-5060

Model

Description

X-152M

Single spear bale spear for Manitou. Single 55 mm spear with useable length of 52-inches for round bales. Rated at 3,000 lbs. Item # 833400, weight 259 lbs.

X-242M

Dual bolt-in forged spears spaced 34” apart with useable length of 42”. Fits Manitou Rated at 3,800 lbs. For Round Bales. Item # 833415, weight 215 lbs.

X-326M

Triple bolt-in forged spears spaced 26” apart, useable length of 26”. Fits Manitou Rated at 3,000 lbs. For Mid-size square bales. Item # 833434, weight 212 lbs.

X-342M

Triple bolt-in forged spears spaced 26” apart, useable length of 42”. Fits Manitou Rated at 4,000 lbs. For large square bales. Item # 833430, weight 235 lbs.

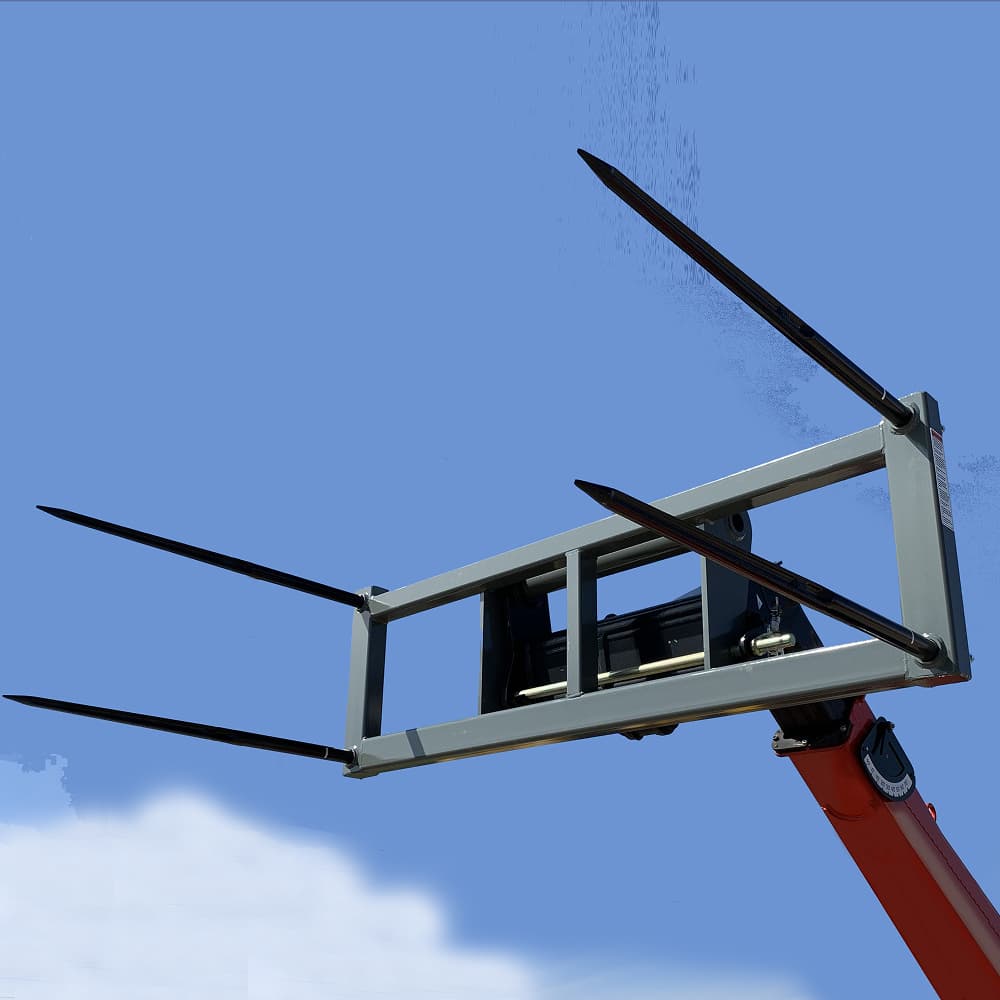

X-642M

Transport two 6’ diameter bales at once. Frame size 76” x 24” w/ 4-bolt-in spears, useable length 42” for Manitou. Item # 833445, weight 298 lbs.

John Deere Wheel Loaders

For JD Models 244J & 304J with OEM Quick Attach

Model

Description

X-152JDWL

Single spear bale spear for JD Wheel Loader. Single 55 mm spear with useable length of 52-inches for round bales. Rated at 3,000 lbs. Item # 833560, weight 274 lbs.

X-242JDWL

Dual bolt-in forged spears spaced 34” apart, with useable length of 42”. Fits JD Wheel Loader Rated at 3,800 lbs. For round bales. Item # 833565, weight 230 lbs.

X-326JDWL

Triple bolt-in forged spears spaced 26” apart, useable length of 26”. Fits JD Wheel Loader Rated at 3,000 lbs. Mid-size square bales. Item # 833570, weight 227 lbs.

X-342JDWL

Triple bolt-in forged spears spaced 26” apart, useable length of 42”. For JD Wheel Loader Rated at 4,000 lbs. For large square bales. Item # 833574, weight 250 lbs.

X-642JDWL

Transport two 6’ diameter bales at once. Frame size 76”x 24” w/ 4-bolt-in spears, useable length 42” Rated at 6,000 lbs. Item # 833575, weight 315 lbs.

Designed for Telehandlers & Wheel Loaders

Manufactured to use "Universal" Skid Steer Style Mount

Model

Description

X-152SS

Single spear bale spear for Telehandler & Wheel Loaders with Skid Steer Mount Single 55 mm spear with useable length of 52-inches for round bales. Rated at 3,000 lbs. Item # 833410, weight 191 lbs.

X-242SS

Dual bolt-in forged spears spaced 34” apart, with useable length of 42”. For Telehandlers & Wheel Loaders with Skid Steer Mount Rated at 3,800 lbs. For round bales. Item # 833425, weight 147 lbs.

X-326SS

Triple bolt-in forged spears spaced 26” apart, useable length of 26”. For Telehandlers & Wheel Loaders with Skid Steer Mount. Rated at 3,000 lbs. Mid-size square bales. Item # 833440, weight 158 lbs.

X-342SS

Triple bolt-in forged spears spaced 26” apart, useable length of 42”. Fits Telehandlers & Wheel Loaders with Skid Steer Mount. Rated at 4,000 lbs. For large square bales. Item # 833444, weight 179 lbs.

X-642SS

Transport two 6’ diameter bales at once Frame size 76” x 24” w/ 4-bolt-in spears, useable length 42”. Fits Telehandlers & Wheel Loaders with Skid Steer Mount. Rated at 6,000 lbs. Item # 833455, weight 244 lbs.

NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
