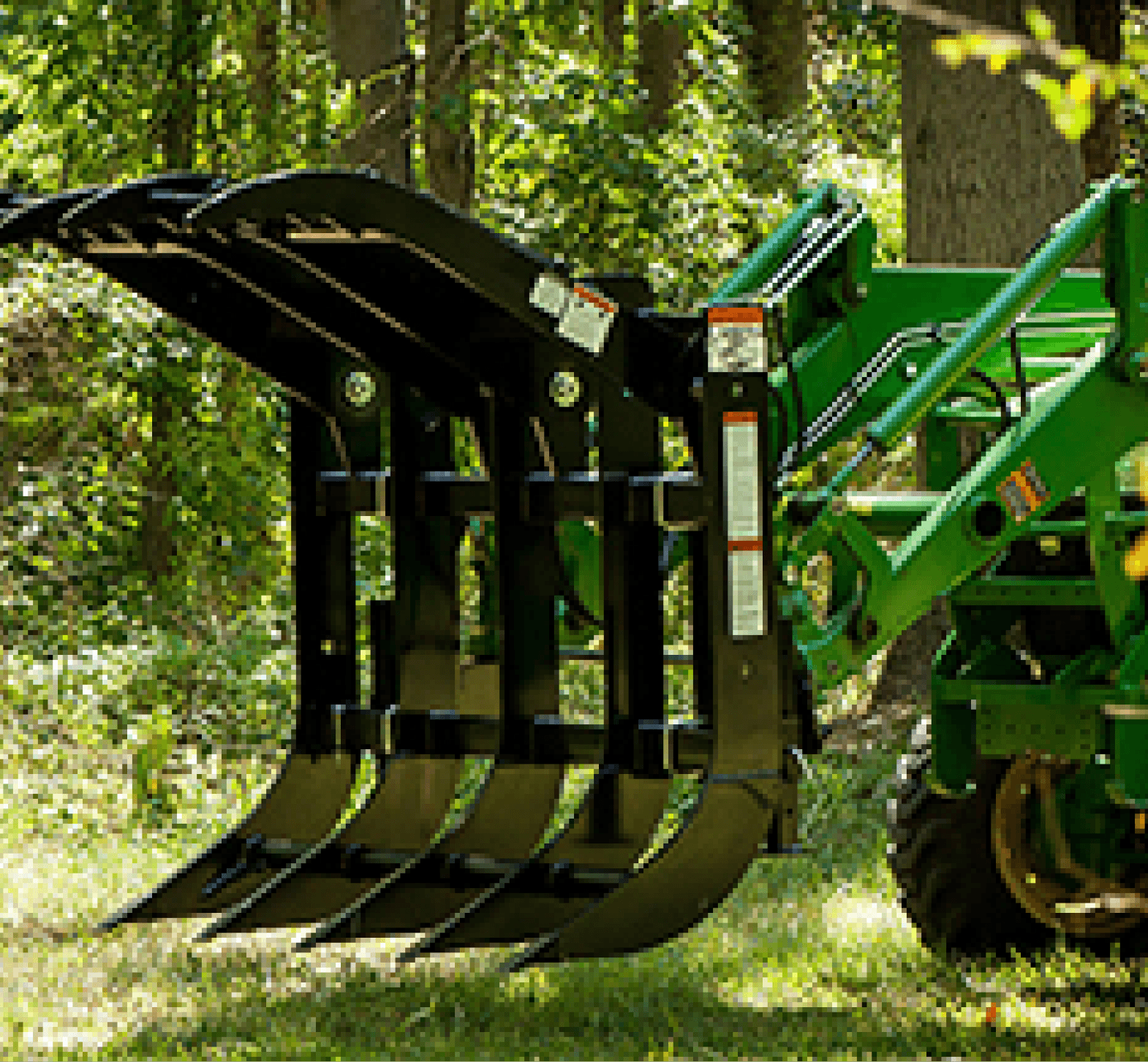

Split-Top Grapple Rake
Split-Top Grapple Rake
Designed for today’s modern skid steer and tractor front loaders. Available in 62” or 77” width, the split top design provides dual upper grapples for picking up brush and other debris while leaving the dirt behind. Ideal for loading logs, orchard prunings, piling brush and moving hard to handle materials.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
See the Split Top Grapple Rake in Action
A unique design with weld-on tine points
- Tine design allows operator to go under logs/brush for easy clean pick up.
- Interfacing quick-attach brackets available for most tractor loader models including
- John Deere, AGCO, CNH, Bush Hog and others.
- Greaseable pivot points on upper clamps for long service life.
- Shield Plate in upper clamps provides protection for hydraulic cylinders.
Model
FLGR-262 / SSGR-262 / FLGR-262-G
FLGR-277 / SSGR-277 / FLGR-277-G
Overall Width (in/mm)
62 / 1575
77 / 1956
Overall Depth (in/mm)
25 / 635
25 / 635
Overall Height Closed (in/mm)
54 / 1372
54 / 1372
Grapple Opening (in/mm)
50 / 1270
50 / 1270
Upper Grapple Widths (in/mm)
19.25 / 489
19.25 / 489
Tine Spacing (in/mm)
15 / 381
15 / 381
Number of Tines/Grapples (lower/upper)
5 / 4
6 / 4
Reinforcing Tubes Between Lower Tines
Yes
Yes
Number of Hydraulic Cylinders
2
2
Cylinder Bore (in/mm)
2 / 50.8
2 / 50.8
Cylinder Stroke (in/mm)
10 / 254
10 / 254
Cylinder Rod Diameter (in/mm)
1.125 / 28.57
1.125 / 28.57
Cylinder Pressure Rating (psi/bar)
3000 / 206.9
3000 / 206.9
Mounting for Tractor Loader (FLGR)
Mgt. Brt. Available*
Mgt. Brt. Available*
Weight FLGR Model (lbs/kg)
811 / 368
884 / 401
Mounting for Skid Steer (SSGR)
“Universal” Skid Steer
“Universal” Skid Steer
Weight SSGR Model (lbs/kg)
812 / 368
943 / 428
Mounting for FLGR–G Models
Euro / Global
Euro / Global
Weight FLGR–G Models (lbs/kg)
827 / 375
970 / 440
Horsepower Rating (maximum)
95 PTO HP
150 PTO HP
Product No. FLGR Models (loader)
811380
811400
Product No. SSGR Models (skid steer)
811435
811440
Product No. FLGR–G Models (Euro/Global)
811495
811490
