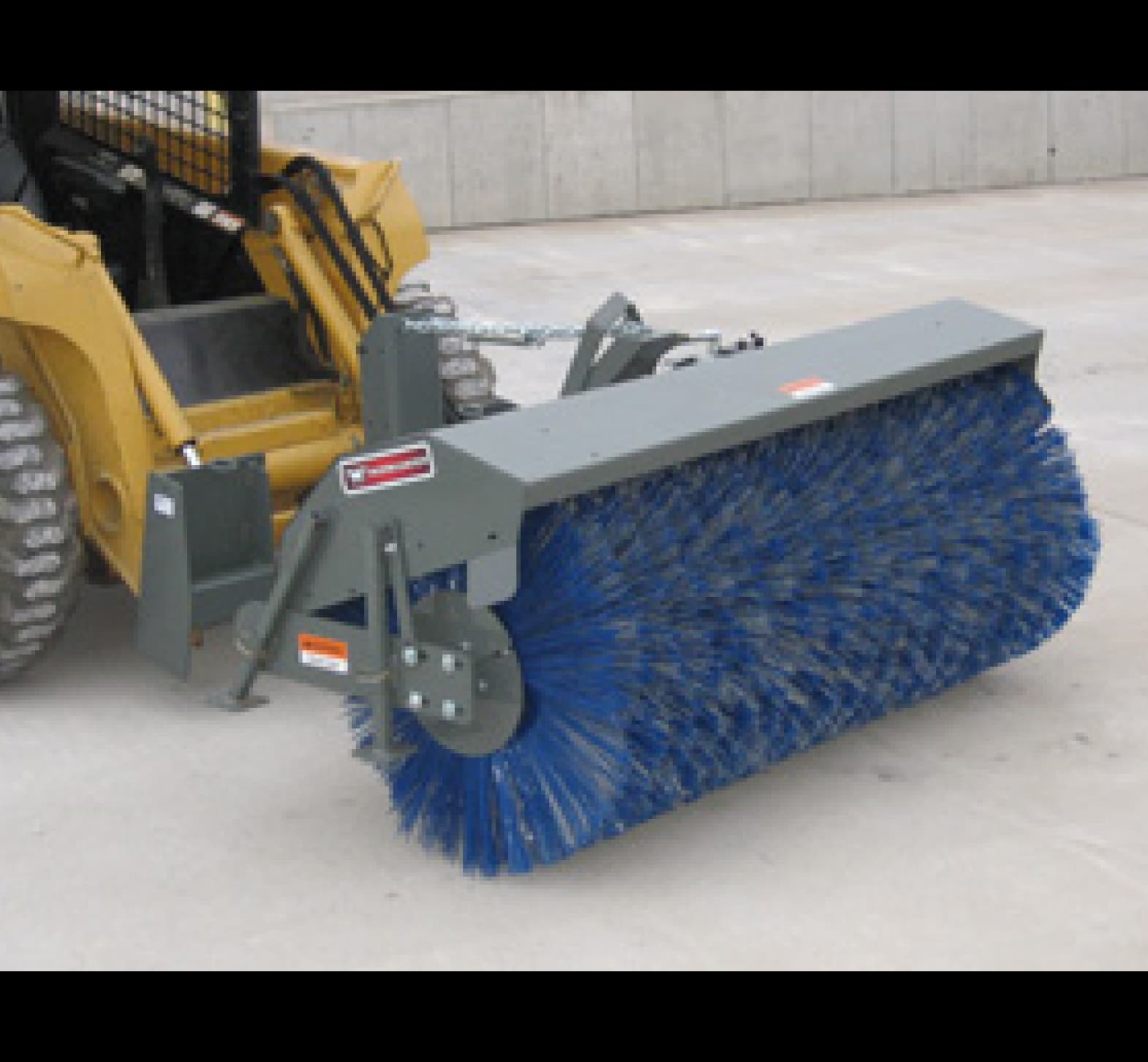

Skid Steer Rotary Brooms

Hydraulically driven skid steer models in 5-ft., 6-ft., and 7-ft. widths with 32" diameter brushes with variable flow control valve for optimum broom speed.

Download the Brochure

Product Features

Designed for use by contractors, municipalities, institutions, and farmers.
Hydraulically driven skid steer models in 5-ft., 6-ft., and 7-ft. widths with 32" diameter brushes.
Variable flow control valve for optimum broom speed.
Step-through mount design for easy in/out of skid steer cab.
Optional electric solenoid hydraulic angle kit also offered
Optional electrical wiring kits to connect (optional) electric solenoid control to most OEM skid steer auxiliary controls.
4.36/1 chain drive ratio provides job matched torque to get through tough conditions.
32 inch diameter convoluted brushes available in Poly (P) or both Poly and Wire (PW).
Remove dirt, sand, gravel and trash from construction entrances, parking lots, bridges, driveways and sidewalks.
Remove thatch and prepare turf for the growing season.
Clean snow or leaves from streets, driveways, and building entrances.
Excellent for general clean up before sealing or repairing pavement.
Broom angles up to 30° right or left. Optional manual or hydraulic angle adjustment kits available.
Height adjustment chains maintain an even operating position.
Parking stands included as standard equipment.

See Skid Steer Rotary Brooms in Action

Skid Steer Rotary Broom Specifications

Description

SSMB-325P

SSMB-325PW

SSMB-326P

SSMB-326PW

SSMB-327P

SSMB-327PW

Overall Width (in/cm)

69 / 175

81 / 206

93 / 236

Brush Diameter (in/cm)

32 / 81

Sweeping Width (in/cm)

60 / 152

72 / 183

84 / 213

Width @ 30° Angle (in/cm)

53 / 135

64 / 163

76 / 193

Mounting System

Skid Steer

Brush Material

Poly

Poly / Wire

Poly

Poly / Wire

Poly

Poly / Wire

Hydraulic Motor Rating

16 GPM

Oil Flow Requirement (gpm/lpm)

12-30 / 45-114

Dirt Deflector

Optional

Weight (lbs/kg)

720 / 327

714 / 324

780 / 354

774 / 351

840 / 381

833 / 378

Product No.

610961

610960

610966

610965

610971

610970

Skid Steer Rotary Broom Manual and Parts List

Download the Manual

View the Skid Steer Rotary Broom Parts List

Angle Adjustment Kits

Item #

Description

Item #610702

Manual Angle Adjustment Kit for either skid steers or tractor 3-pt.

Item #610703

3-pt. Hydraulic Angle Adjustment Kit - includes cylinder & hoses less tips.

Item #610940

Skid Steer Hydraulic Angle Adjustment Kit - includes elec. hydraulic solenoid control valve. For skid steer brooms used on units with only one set of remotes. Includes cylinder, hoses, valve, & flat-faced couplers. Factory installed.

Angle Adjustment Kits Parts List

View Optional Manual Angle Kit Parts List

View Optional Hydraulic Angle Kit Parts List

View Optional Hydraulic Angle Solenoid Valve Parts List

Electric Solenoid Kit Specs

Item #

Description

Item #610950

Field installed electric hydraulic solenoid valve kit - fits #610703 hydraulic angle kit above.

Electric Solenoid Kit Parts List

View Hydraulic Angle Solenoid Valve Parts List

Optional Electrical Wiring Kits for Skid Steers

Item

Description

Item #2507024

ASV Skid Steer 8 Pin Wiring Kit

Item #2507026

Bobcat Skid Steer 14 Pin Wiring Kit

Item #2507027

Case Skid Steer 14 Pin Wiring Kit

Item #2507024

Caterpillar Skid Steer 8 Pin Wiring Kit

Item #2507028

Caterpillar Skid Steer 14 Pin Wiring Kit

TBA

Gehl Skid Steer 14 Pin Wiring Kit

Item #2507029

JCB Skid Steer 14 Pin Wiring Kit

Item #2507030

John Deere Skid Steer 14 Pin Wiring Kit

Item #2507031

Kubota Skid Steer 14 Pin Wiring Kit

Item #2507027

New Holland Skid Steer 14 Pin Wiring Kit

TBA

Mustang Skid Steer 14 Pin Wiring Kit

Item #2507029

Volo Skid Steer 14 Pin Wiring Kit

Item #2507031

Wacker Neuson Skid Steer 14 Pin Wiring Kit

To connect our electric/hydraulic solenoid control when installed on our Rotary Brooms (or Power Landscape Rakes) into OEM Skid Steer auxiliary electric controls, allows operating the electric/hydraulic solenoid valve from the operator seat with the buttons on the hand control.

NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
