SATG Sweep Action Tine Grapple
SATG Sweep Action Tine Grapple

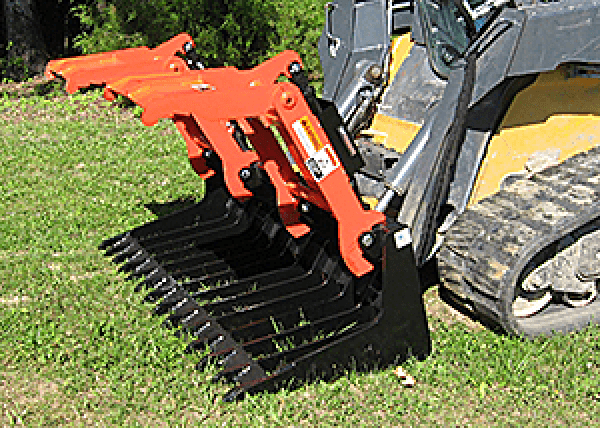

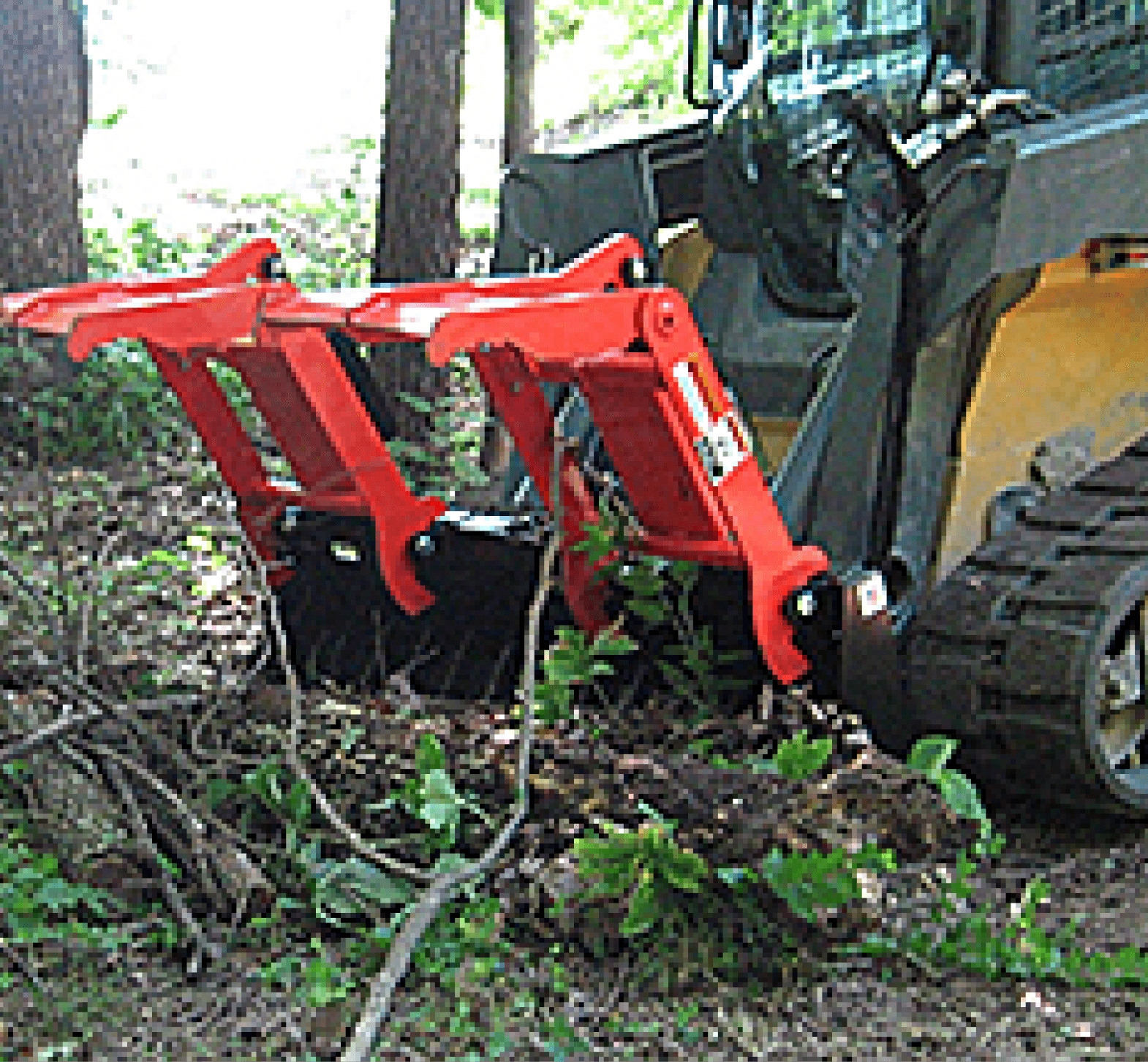

The patent pending design keeps the front rake of the sweep clamp open during use until the rear section of the clamp is either closed or contacts the material being handled. The cylinder then overcomes the spring pressure causing the front rake to rotate towards the bucket in a sweeping motion moving material in and retaining it in the bucket.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
See the SATG Sweep Action Tine Grapple in Action
Grapple Opening of 37 Inches
The SATG Sweep Action Tine Grapple is available in 72", 78" and 84" widths.
SATG Sweep Action Tine Grapple
Description
SATG-72
SATG-78
SATG-84
Overall Width (in/mm)
72 / 1829
78 / 1981
84 / 2134
Bucket Depth (in/mm)
31 / 787
31 / 787
31 / 787
Upper Grapple Width (in/mm)
21 / 533
21 / 533
21 / 533
Length of Front Sweep Clamp (in/mm)
21.5 / 546
21.5 / 546
21.5 / 546
Degrees of Sweep
44
44
44
Grapple Opening (in/mm)
37.13 / 943
37.13 / 943
37.13 / 943
Tine Material
1/2 Steel
1/2 Steel
1/2 Steel
Tine Spacing (in/mm)
5 / 127
5 / 127
5 / 127
Number of Tines
14
15
16
Hose Routing
Inside the Frame
Inside the Frame
Inside the Frame
Cylinder Pressure Rating (psi/bar)
3000 / 207
3000 / 207
3000 / 207
Flat-face Couplers are Standard
1/2 / 13 Body
1/2 / 13 Body
1/2 / 13 Body
Mount Type
Universal Skid Steer
Universal Skid Steer
Universal Skid Steer
Weight (lbs/kg)
847 / 384
893 / 405
923 / 419
Product No.
812540
812560
812580
