SARG® Sweep Action Rock Grapple - for Mini Skid Steer
SARG® Sweep Action Rock Grapple - for Mini Skid Steer

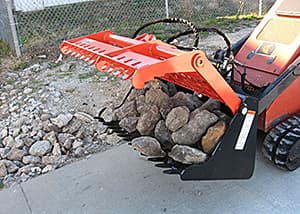

Rocks are no problem…the 42-inch Sweep Action Rock Grapple with it’s 39-inch wide upper grapple sweeps rocks into the tine bucket and retains them there. The bucket features tines of solid 1” material spaced on 3” centers to retain rocks while allowing the dirt to be sifted out.
Made for a variety of mini skid steer models
- Universal mini skid steer mount – fits Toro-Dingo, Boxer, Ditch Witch, Ramrod, Vermeer and others, SARG-42 B/G fits Bobcat MT & Gehl 1640E.
- Hoses and flat-face couplers are standard equipment.
- Bolt-on side plates are standard to help retain smaller rocks if needed.
- Optional bolt-in solid bottom available to retain smaller materials.
SARG-42 Specifications
Description
SARG-42
SARG-42 B/G
Overall Width (in/mm)
42/ 1067
42/ 1067
Bucket Depth (in/mm)
26 / 660
26 / 660
Upper Grapple Width (in/mm)
39 / 991
39 / 991
Degrees of Sweep
66
66
Grapple Opening (in/mm)
21 / 533
21 / 533
Cylinder Size (in/mm)
2 x 8 / 51 x 203
2 x 8 / 51 x 203
Tine Diameter (in/mm)
1 / 25.4
1 / 25.4
Tine Spacing (in/mm)
3 / 1.36
3 / 1.36
Removable End Plate
Standard
Standard
Mount Type
"Universal" Skid Steer
Bobcat MT-Series
Weight (lbs/kg)
445 / 202
450 / 204
Product No.
812230
812270
Optional Bolt-in Bottom Product No.
812265
812265
SARG® Sweep Action Rock Grapple - for Mini Skid Steer Manual and Parts List
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
