Replacement Forged Spears & Spear Kits
Replacement Forged Spears & Spear Kits
We carry a variety of replacement forged spears and spear kits for your bale handling equipment. Find the part that's right for you.
Model 831290
1,800 lbs. Tapered forged Conus II replacement spear with nut. 49" long (44" useable length) 22 lbs.
Model 831273
2,200 lbs. Tapered forged Conus II replacement spear with nut. 49" long (44" useable length) 22 lbs.
Model 830928
2,200 lbs. Bolt-in (42mm dia.) replacement spear. 47" long (42" useable length) 21 lbs.
Model 830924
2,200 lbs. Bolt-in (42mm dia.) replacement spear. 31.5" long (26" useable length) 11 lbs.

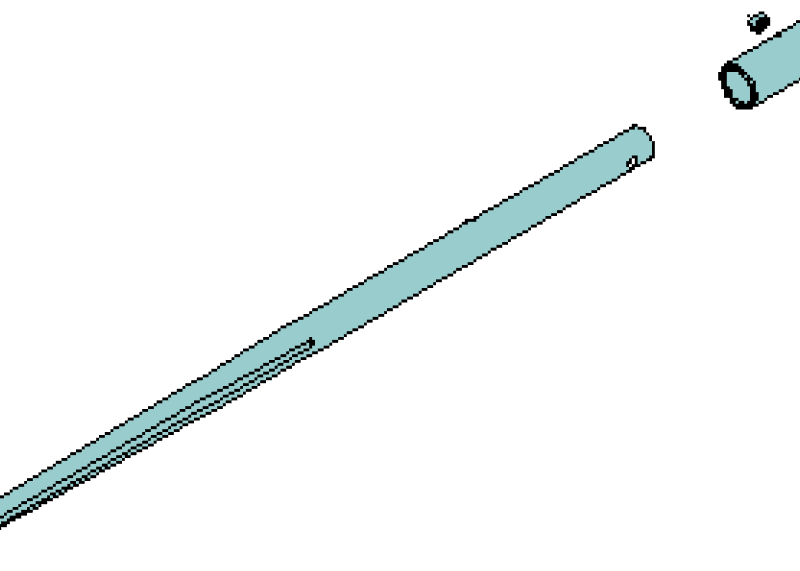

Model 832217
Replacement spear kit. Rated at 2,200 lbs. Kit includes bolt-in spear, sleeve and bolt. Spear is 47" long (42" useable). Weld in sleeve is 2.25" O.D., 26 lbs.
Model 832216
Replacement short spear kit. Kit includes bolt-in spear, sleeve and bolt. Spear is 31.5" long (26" useable). Weld in sleeve is 2.25" O.D.
Model 832215
Replacement spear kit with cast steel weld-on socket and bolt-in spear. Rated at 2,200 lbs. Spear is 47" long (42" useable), casting welds to 3" x 3" or larger square frame. 29 lbs.

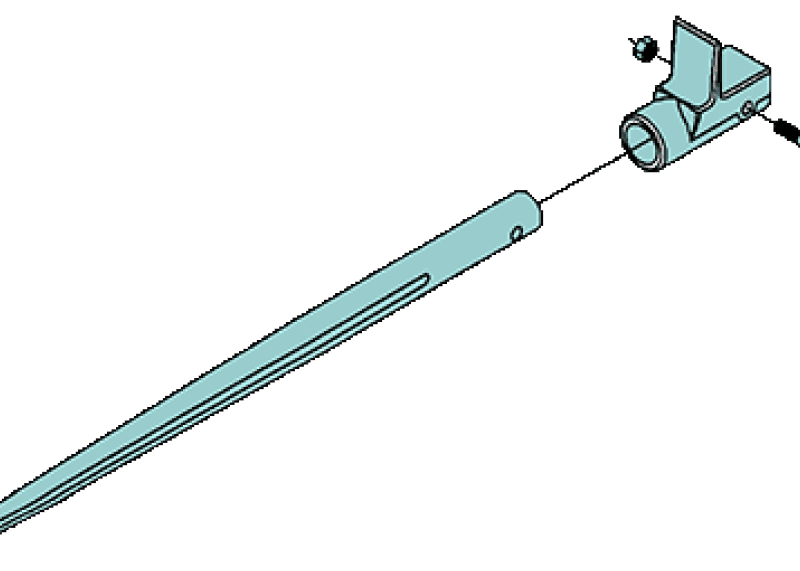

Model 832214
Replacement short spear kit with cast steel weld-on socket and bolt-in spear. Spear is 31.5" long (26" useable), casting welds to 3" x 3" or larger square frame.

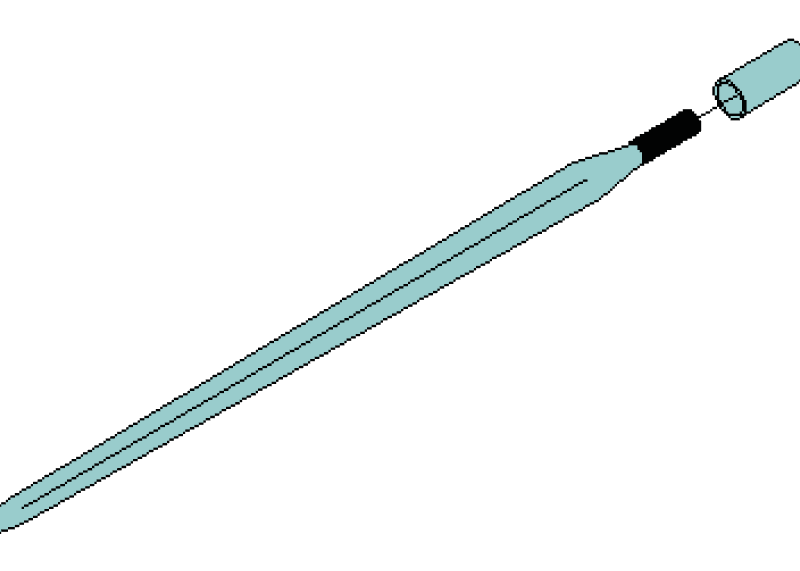

Model 831180
Replacement spear kit. Rated at 1,800 lbs. Kit includes spear, nut and sleeve. Spear is 49" long (44" useable). Weld in sleeve is 2" O.D., 23 lbs.
Model 831190
Replacement spear kit. Rated at 2,200 lbs. Kit includes spear, nut and sleeve. Spear is 49" long (44" useable). Weld in sleeve is 2" O.D., 20 lbs.

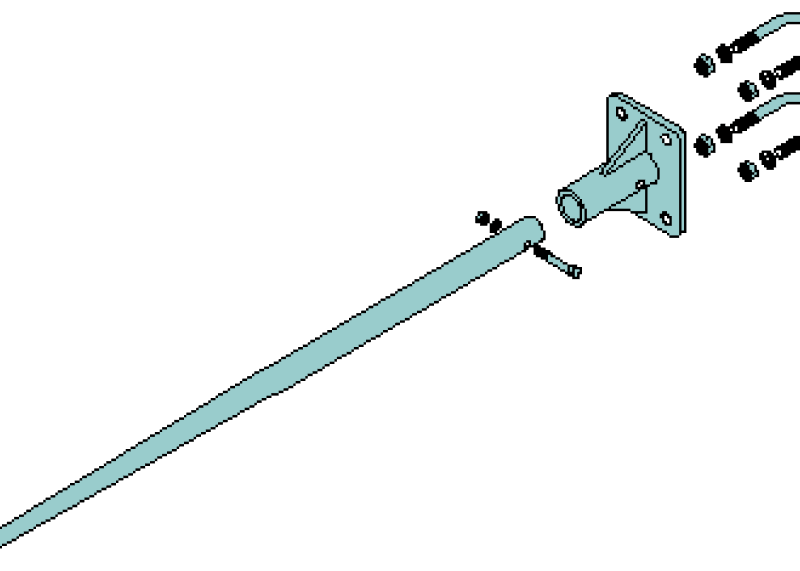

Model 830925
Bolt-on replacement spear kit. Rated at 2,200 lbs. Mounting plate is designed to be U-bolted to 3" x 3" square tubing frame. Includes mounting plate, U-bolts, bolt-in spear 47" long (42" useable) and bolt.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
