Models 714HC, 724HC Bolt-on Hydraulic Post Hole Digger
Models 714HC, 724HC Bolt-on Hydraulic Post Hole Digger

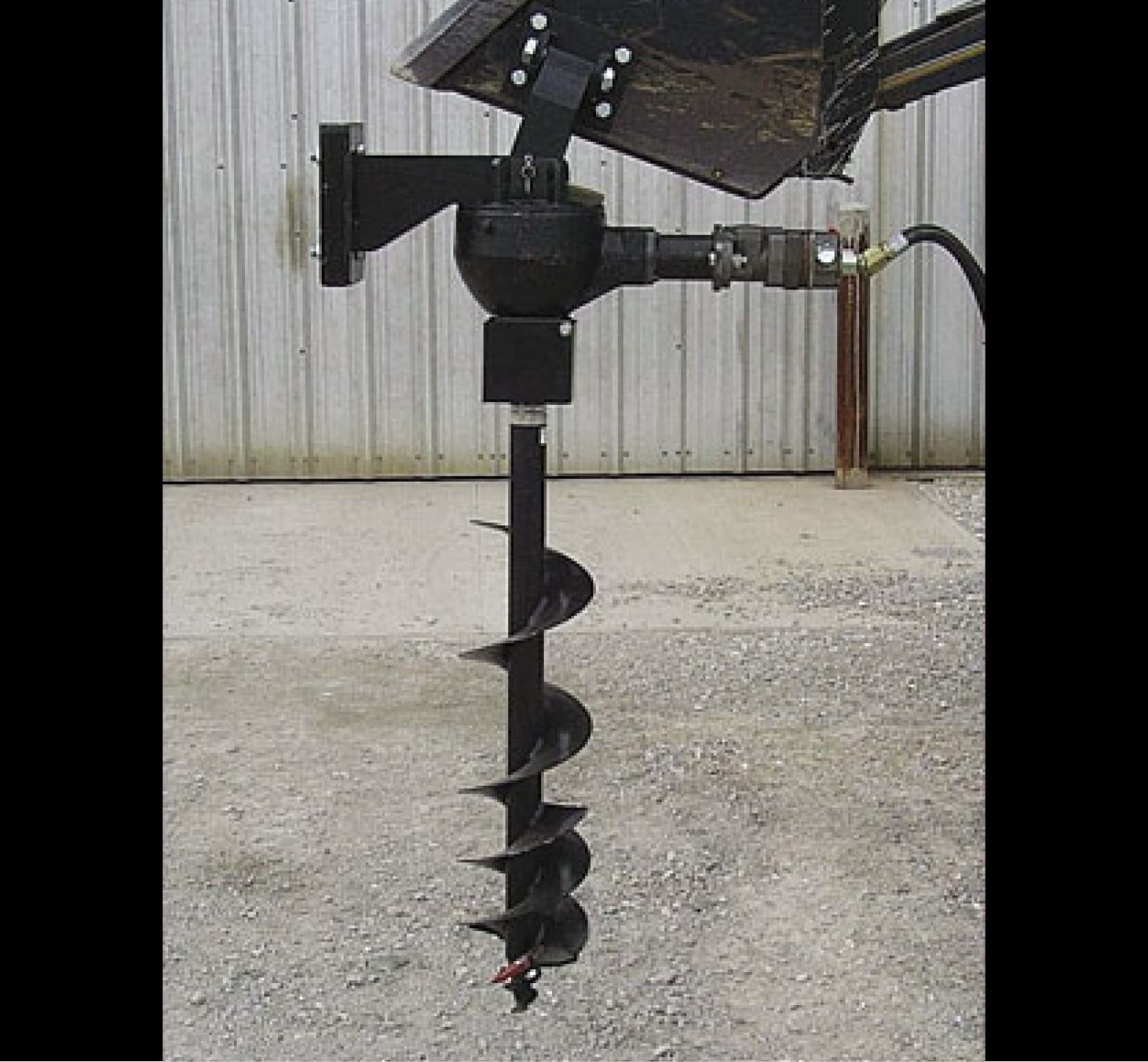

Increase productivity with these bolt-on hydraulic diggers. Mounts to side of any loader bucket allowing the operator an unobstructed view of the task at hand. Counter weights assure the digger maintains its vertical position while the loader provides the down force for reliable digging.
Models 714HC, 724HC Bolt-on Hydraulic Post Hole Digger Specifications
Model
714HC
724HC
Mount Type
Bolt-on
Bolt-on
Gearbox Ratio
3.18:1
3.18:1
Gearbox Output Shaft
2"
2"
Gearbox Bearings
Tapered Roller
Tapered Roller
Gearbox Seals
Double lip, spring loaded
Double lip, spring loaded
Drive Type
Hydraulic
Hydraulic
Gearbox Ltd. Warranty
5-yrs.
5-yrs.
Hyd. Requirement
5-10 GPM
10-20 GPM
Hyd. Pressure psi
1500-3000
1500-3000
Auger Sizes
6” thru 14"
6” thru 24"
Auger Length
42"
42"
Auger Type
STD, HDSF, HDDF
STD, HDSF, HDDF
Auger Point - Bolt-in
Fish Tail
Fish Tail
12" Auger Ext.
Opt. (170705)
Opt. (170705)
Weight (lbs.)
125
127
Product Number
702100
702105
Models 714HC, 724HC Bolt-on Hydraulic Post Hole Digger Manual and Parts List
Worksaver 714HC, 724HC Augers
Model
Item #
Description
6" STD
170585
6" Standard Duty Single Flight Auger with Teeth
9" STD
170710
9" Standard Duty Single Flight Auger with Teeth
12" STD
170720
12" Standard Duty Single Flight Auger with Teeth
6" HDSF
706150
6" HD Single Flight Auger with Teeth
6" HDDF
706155
6" HD Double Flight Auger with Teeth
9" HDSF
706109
9" HD Single Flight Auger with Teeth
9" HDDF
706009
9" HD Double Flight Auger with Teeth
12" HDSF
706112
12" HD Single Flight Auger with Teeth
12" HDDF
706012
12" HD Double Flight Auger with Teeth
14" HDSF
706033
14" HD Single Flight Auger with Teeth
14" HDDF
706037
14" HD Double Flight Auger with Teeth
18" HDDF
706070
18" HD Double Flight Auger with Teeth
24" HDDF
706075
24" HD Double Flight Auger with Teeth
Standard Duty Augers: use for lighter soils free of stones, roots, etc.
Heavy Duty Single Flight Augers: use for tougher digging or where stones, roots, etc. may be present.
Heavy Duty Double Flight Augers: use for loose soil such as sand/gravel to help carry soil to the surface.
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
