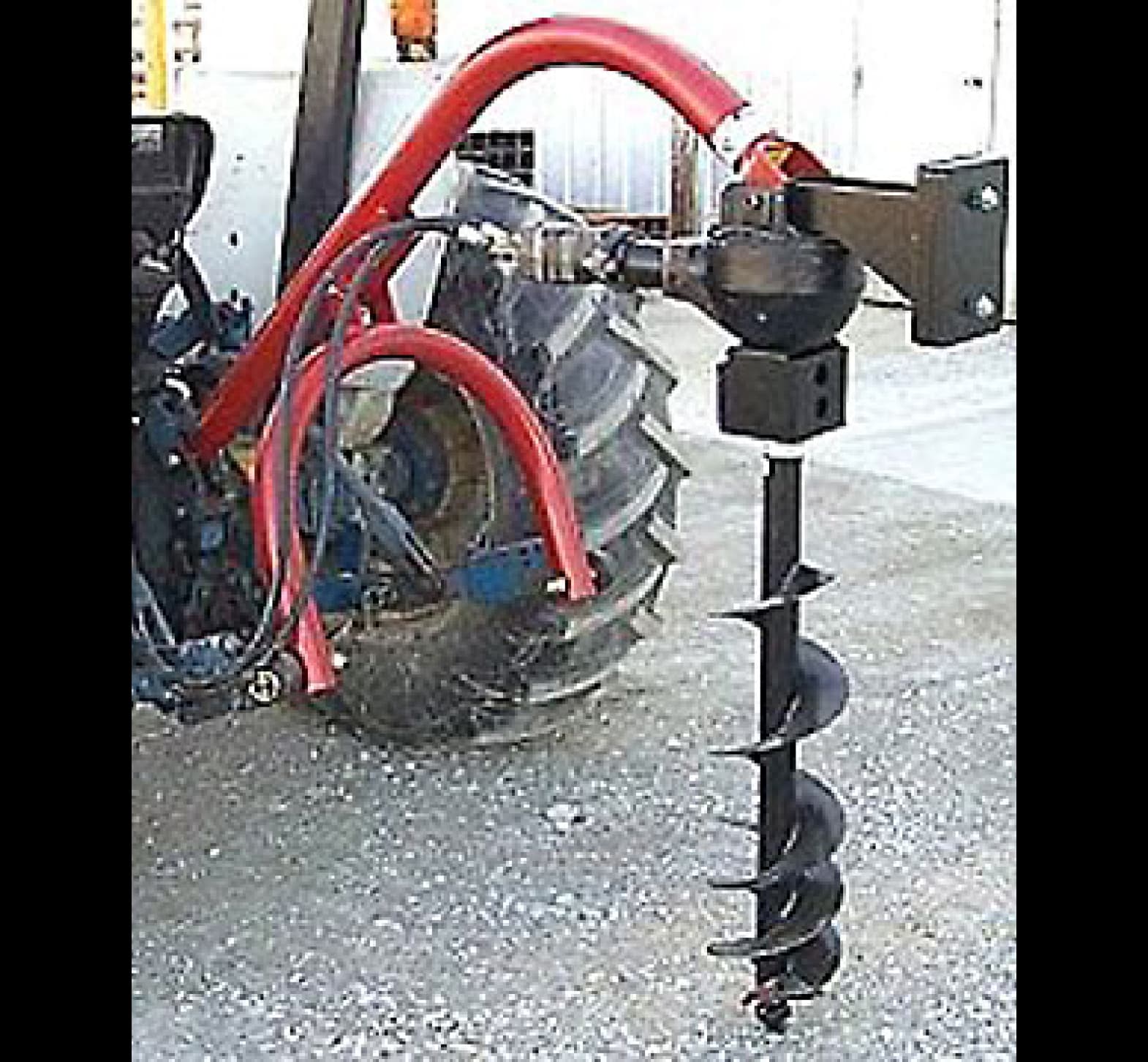

Models 614HC, 624HC 3-pt. Hydraulic Post Hole Digger
Models 614HC, 624HC 3-pt. Hydraulic Post Hole Digger
Increased performance is offered in the models 614HC & 624HC hydraulic 3-pt post hole diggers. Designed for Cat. I/II (7/8” Pins) three point hitches, they offer all the features of our 3-pt diggers with power provided by a field proven hydraulic drive motor and gearbox combination for a smooth transfer of power to the auger. Counter weights assure the digger maintains its vertical position for true-vertical holes.
Models 614HC, 624HC 3-pt. Hydraulic Post Hole Digger Specifications
Model
614HC
624HC
Boom Size (O.D.)
3-1/2”
3-1/2”
Yoke Size
3”
3”
Boom Positions
3
3
Mount Type
Cat. I/II
Cat. I/II
Gearbox Ratio
3.18:1
3.18:1
Gearbox Output Shaft
2"
2”
Gearbox Bearings
Tapered Roller
Tapered Roller
Gearbox Seals
Double lip, spring loader
Double lip, spring loader
Drive Type
Hydraulic
Hydraulic
Gearbox Ltd. Warranty
5-yrs.
5-yrs.
Hyd. Requirement
5-10 GPM
10-20 GPM
Hyd. Pressure psi
1500-3000
1500-3000
Optional Down Force Kit
Yes, DFK-70
Yes, DFK-70
Auger Sizes
6” thru 14”
6” thru 24”
Auger Length
42"
42”
Auger Type
STD, HDSF, HDDF
STD, HDSF, HDDF
Auger Point - Bolt-in
Fish Tail
Fish Tail
12" Auger Ext.
Opt. (170705)
Opt. (170705)
Parking Stand Kit
Opt. (102165)
Opt. (102165)
Weight (lbs.)
180
182
Product Number
702090
702095
Models 614HC, 624HC 3-pt. Hydraulic Post Hole Digger Manual and Parts List
Worsaver 614HC, 624HC Augers
Model #
Part #
Description
6" STD
170585
6" Standard Duty Single Flight Auger with Teeth
9" STD
170710
9" Standard Duty Single Flight Auger with Teeth
12" STD
170720
12" Standard Duty Single Flight Auger with Teeth
6" HDSF
706150
6" HD Single Flight Auger with Teeth
6" HDDF
706155
6" HD Double Flight Auger with Teeth
9" HDSF
706109
9" HD Single Flight Auger with Teeth
9" HDDF
706009
9" HD Double Flight Auger with Teeth
12" HDSF
706112
12" HD Single Flight Auger with Teeth
12" HDDF
706012
12" HD Double Flight Auger with Teeth
14" HDSF
706033
14" HD Single Flight Auger with Teeth
14" HDDF
706037
14" HD Double Flight Auger with Teeth
18" HDDF
706070
18" HD Double Flight Auger with Teeth
24" HDDF
706075
24" HD Double Flight Auger with Teeth
Standard Duty Augers: use for lighter soils free of stones, roots, etc.
Heavy Duty Single Flight Augers: use for tougher digging or where stones, roots, etc. may be present.
Heavy Duty Double Flight Augers: use for loose soil such as sand/gravel to help carry soil to the surface.
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
