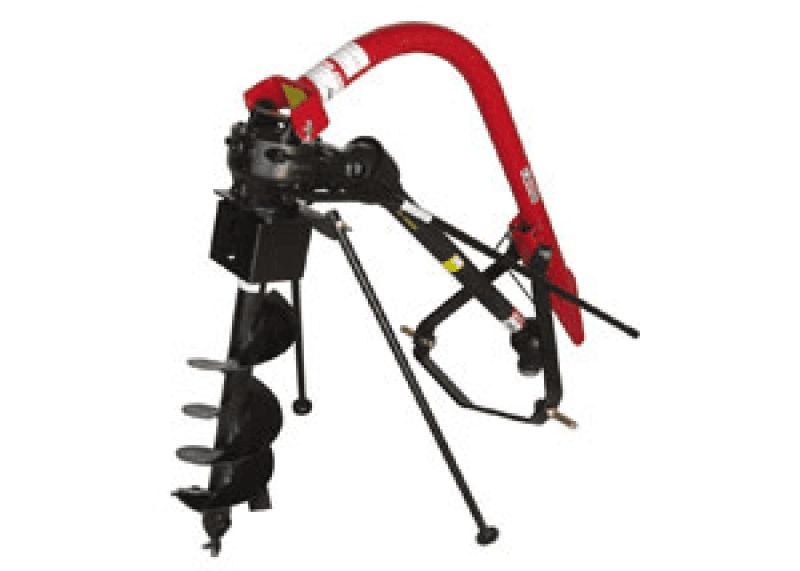

Model 300 Digger for Sub-compact Tractors
Model 300 Digger for Sub-compact Tractors
Ideal for the small acreage owners, Model 300 mates to most sub-compact tractors with a Cat. 0 or limited Cat. I three point hitches with 7/8" pins. Standard positioning handle allows the operator to place the digger from the tractor seat. Due to the low height profile of these sub-compact tractors, augers 30” in length are offered in 6”, 9” and 12” diameters providing versatility when digging holes.
Model 300 Digger for Sub-compact Tractors Specifications
Description
Model 300
Boom Size (O.D.)
2.875”
Yoke Size
1/2" x 3” HRF
Boom Positions
3
Mount Type
Cat. 0 (7/8” pins) or Limited Cat. I
Gearbox Ratio
3:01
Gearbox Output Shaft
2"
Gearbox Bearings
Tapered Roller
Gearbox Seals
Double lip, spring loader
Drive Type
PTO, 540 RPM
Shear Bolt
Yes, Grade 2
Gearbox Ltd. Warranty
5-yrs.
Tractor hp
up to 25 hp
Auger Sizes
6” thru 12"
Auger Length
30”
Auger Type
STD
Auger Point - Bolt-in
Fish Tail
Parking Stand Kit
Opt. (102160)
Weight (lbs.)
149
Product Number
170545
Model 300 Digger for Sub-compact Tractors Manual and Parts List
Worksaver Augers - 30" Length for Model 300 Digger
Model
Item #
Description
6" STD
170575
6" Std. Duty Single Flight Auger
9" STD
170565
9" Std. Duty Single Flight Auger
12" STD
170570
12" Std. Duty Single Flight Auger
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
