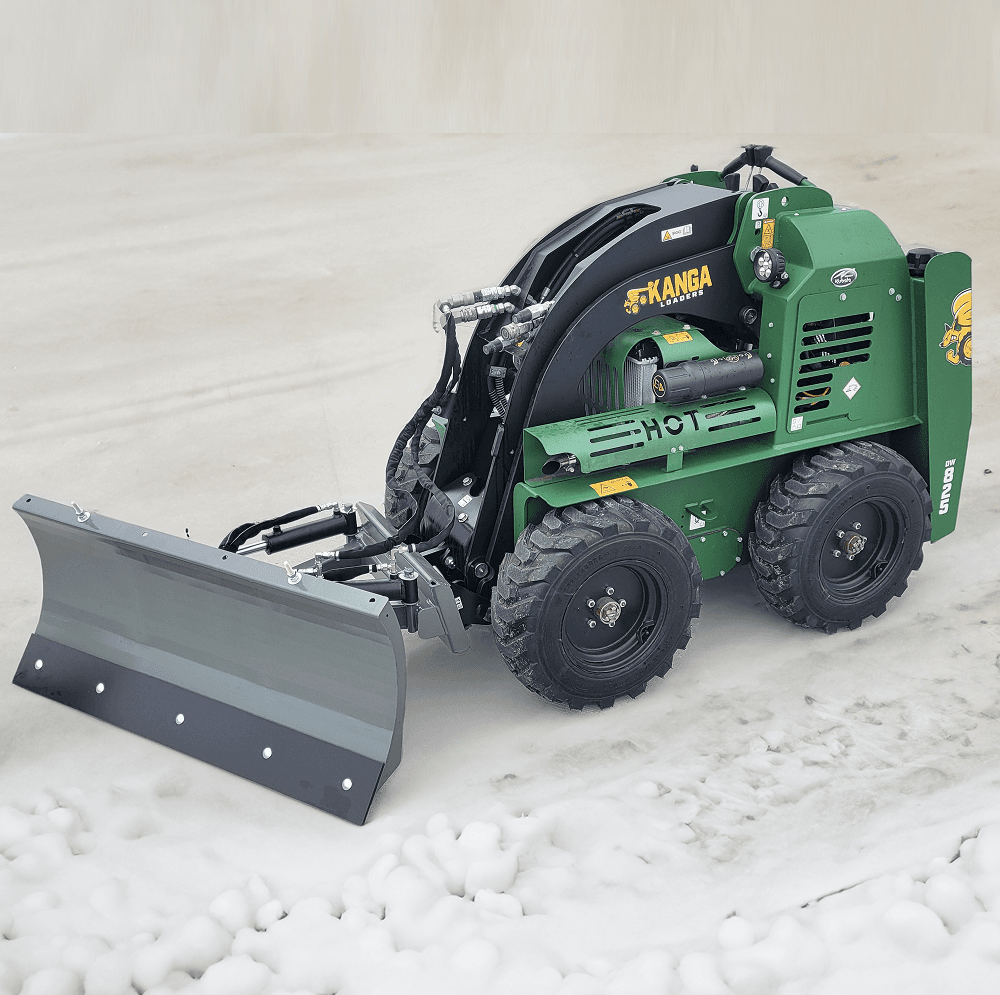

Mini Skid Steer Snow Blade
Mini Skid Steer Snow Blade
Designed for Mini Skid Steers this 50” snow blade is ideal for clearing sidewalks, eliminating hand shoveling. Incorporating many of the features of our larger snow blades, this blade consistently delivers the performance you demand
Product Features
- Ideal for residential or commercial snow removal. Great for use on driveways.
- Two trip springs for controlled break over in snow.
- 3/8" x 6" cutting edge of 1044 steel.
- Blade locks for light grading of loose dirt or gravel.
- Quick hook up on mini skid steers with “universal” mini mounting plate.
- Blade angles right or left.
- Adjustable skid shoes of AR steel are ½” thick and rotate for long life.
See Worksaver Snow Blades in Action
Mini Skid Steer Snow Blade Specifications
Description
SBMS-50
SBMS-50 B/G
Overall Width (in/cm)
50 / 127
50 / 127
Overall Height (in/cm)
21 / 53.34
21 / 53.34
Moldboard Thickness
10-gauge
10-gauge
Cutting Edge (in/cm)
3/8 x 6 / 0.9525 x 15.24
3/8 x 6 / 0.9525 x 15.24
Mount
Universal Mini Skid
Bobcat MT / Gehl*
Optional Hyd. Angle Kig
360172
360172
Weight (lbs/kg)
280 / 127
280 / 127
Product No.
360245
360260
* Note: Also for Bobcat S-70 & Gehl 1640 small cab type units.
Optional Interfacing Quick Attach Brackets Parts Lists
View Optional Hydraulic Angle Kit #360170 Parts List
View Optional Hydraulic Angle Kit #360165 Parts List
View Optional Hydraulic Angle Kit #360168 Parts List
View Crossover Relief Valve Kit #360165 Parts List
View Crossover Relief Valve Kit #360168 Parts List
View Option al Marker Kit Part List
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
