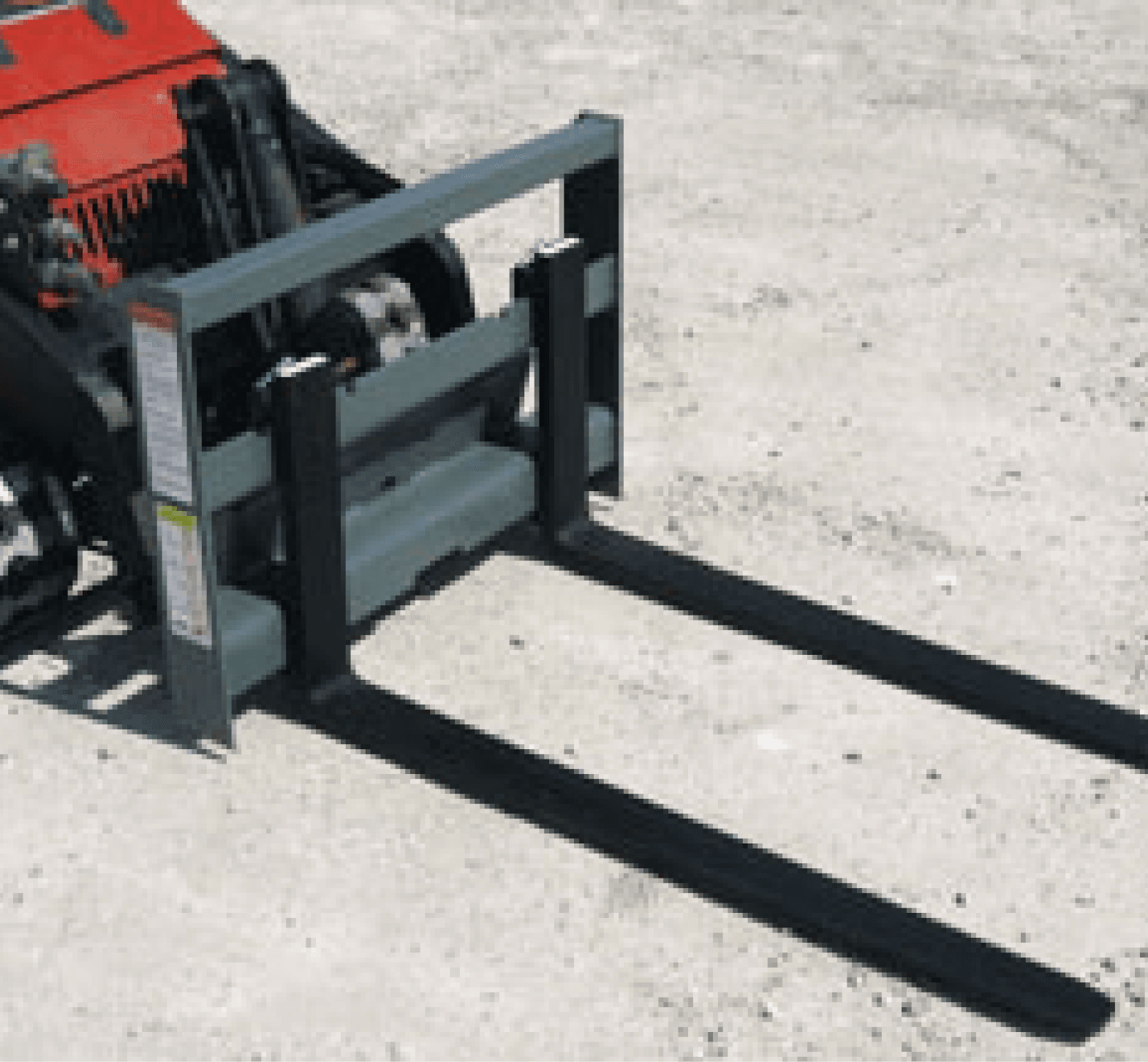

Mini Skid Steer Pallet Forks
Mini Skid Steer Pallet Forks
Pallet Forks designed for Mini Skid Steers / Compact Tool Carriers. These tools elevate the professional’s productivity while offering the large property owner increased flexibility.
Rated at either 1,200 lbs. or 2,000 lbs.
- All models utilize Class I solid steel alloy forks.
- Fits Toro-Dingo®, Ramrod, Boxer®, Ditch Witch® and others with “Universal” mounting system.
- Models available for Bobcat MT-Series (MT-50, MT-52, MT-55)
Mini Skid Steer Pallet Forks Specifications
Description
MPF-1200
MPF-1200 B/G
MPF-2000
MPF-2000 B/G
Equipment Used On
Mini Skid Steer
Bobcat MT-Series
Mini Skid Steer
Bobcat MT-Series
Weight Capacity (lbs/kg)
1,200 / 544
1,200 / 544
2,000 / 907
2,000 / 907
Frame Construction
Welded Steel
Welded Steel
Welded Steel
Welded Steel
Fork Carrier
Notched Rail
Notched Rail
Notched Rail
Notched Rail
Forks
1” x 3” x 36”
1” x 3” x 36”
1.18” x 3” x 42”
1.18” x 3” x 42”
Weight (lbs/kg)
178 / 81
188 / 85
215 / 98
225 / 102
Product No.
833310
833330
832640
832695
Note: Rated lift capacity is based on a pair of forks with no more than 1/2 - load per fork and load no more than halfway out on each fork.
Mini Skid Steer Pallet Forks Manual and Parts List
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
