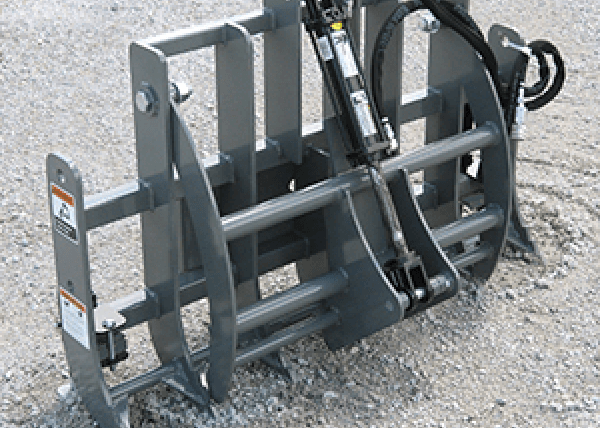

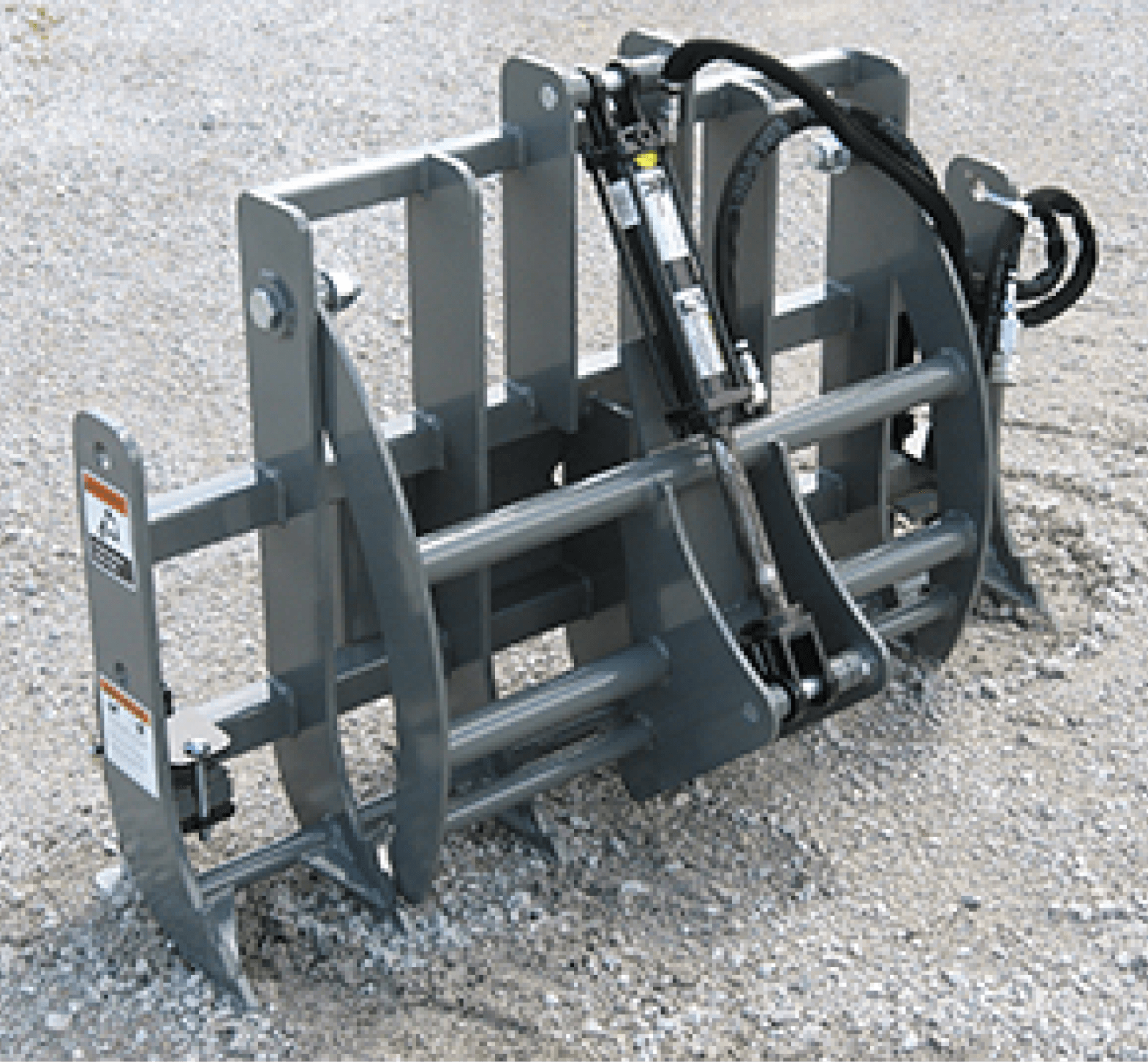

Mini Skid Steer/Compact Tool Carrier Grapple
Mini Skid Steer Compact Tool Carrier Grapple
This tool consistently delivers high performance while offering the owner a great return on investment. Model MGU-48 is designed to fit any unit with the “Universal Mini Mount” (Toro-Dingo®, Boxer®, Ditch Witch®, Ramrod, etc.).
Model MGB/G-48 is designed to fit the Bobcat® MT-Series as well as the Gehl 1640E. Overall unit width is 48”. Offers great versatility in clearing brush, piling limbs, orchard prunings or other hard to handle materials.
Durable and Powerful
- Single upper grapple provides clamping force to hold material securely.
- Mainframe design allows brush and other materials to be picked up while leaving the dirt.
- Good forward visibility for easy control in close quarters for increased productivity.
- Hoses and couplers are standard equipment.
Mini Skid Steer Compact Tool Carrier Grapple Specifications
Description
MGU-48
MGB/G-48
Overall Width (in/mm)
48 / 122
48 / 122
Overall Height Closed (in/mm)
32.75 / 832
32.75 / 832
Upper Grapple Width (in/mm)
31 / 787
31 / 787
Tine Spacing (in/mm)
7.5 / 191
7.5 / 191
Reinforcing Tubes Between Lower Tines
Yes
Yes
Number of Hydraulic Cylinders
1
1
Mounting Type
"Universal Mini Skid"
Bobcat MT-Series
Weight (lbs./kg.)
290 / 132
310 / 141
Product No.
811730
811740
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
