Low Profile Tine Grapple
Low Profile Tine Grapple

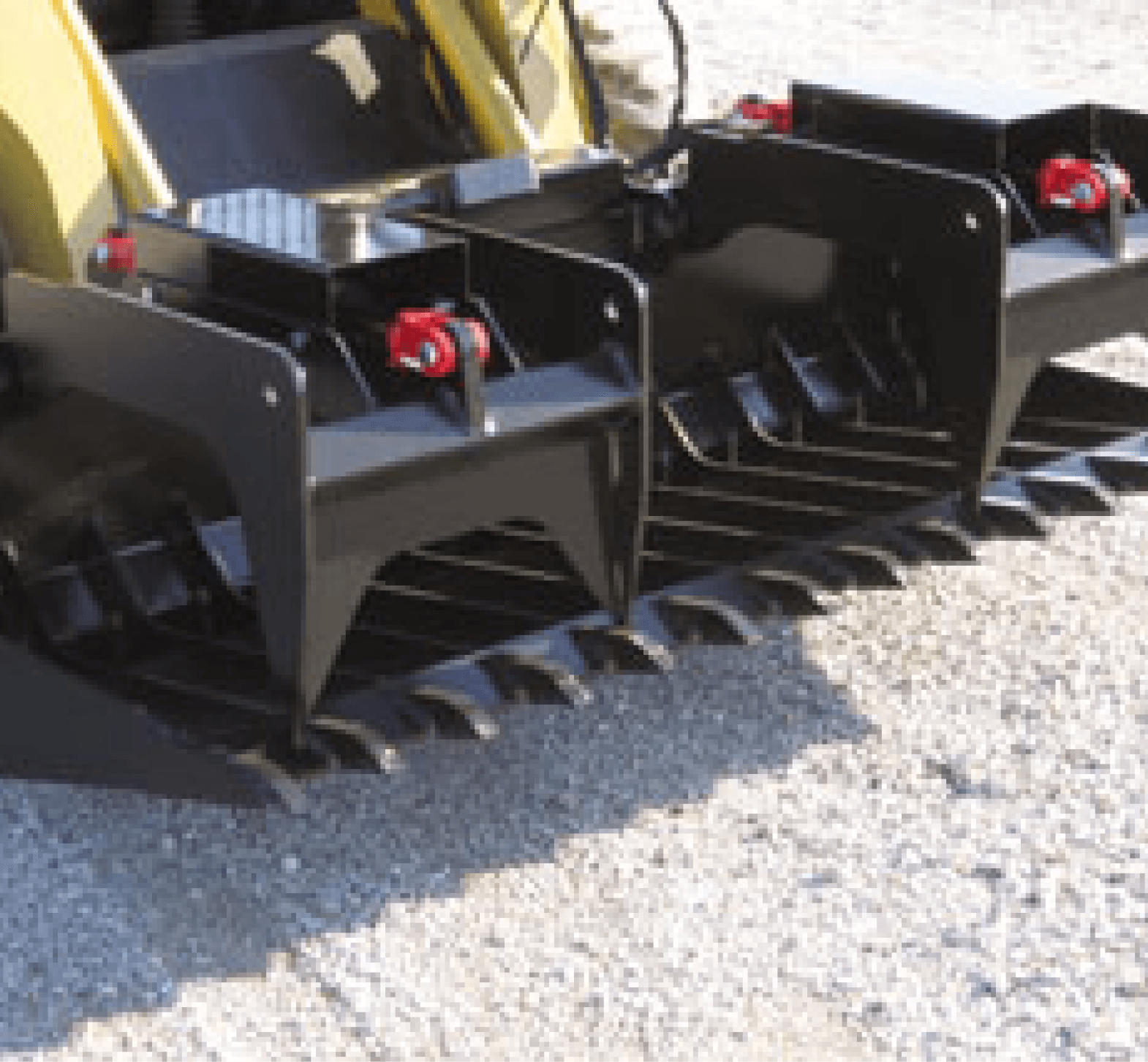

Designed for skid steers, the LPTG series tine grapple easily moves rocks, brush, wood, metal and other materials while leaving the dirt on the ground. The grapple is ideal for various applications including construction site demolition and clean-up, storm clean-up, and landscaping.

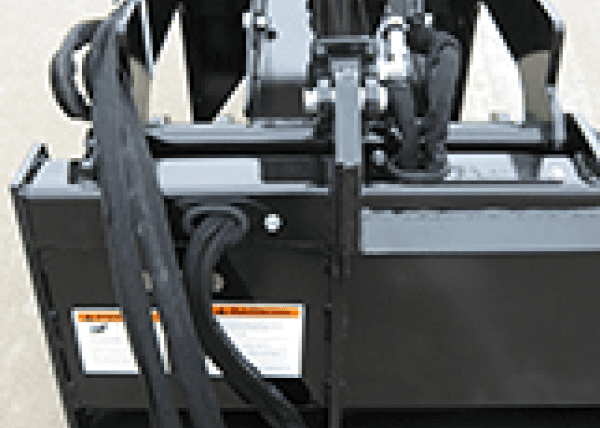

Hoses are routed through the tube to provide hose protection
Features include 5” tine spacing, 3,000 psi cylinders with cylinder guards to protect the cylinders and components. In addition hose routing down the left hand back of the bucket results in maximum dump and roll back as optimum hose length is maintained. Flat-face couplers are standard.
Low Profile Tine Grapple Specifications
Description
LPTG-72A
LPTG-78A
LPTG-84A
Overall Width (in/mm)
72 / 1829
78 / 1981
84 / 2134
Tine Spacing (in/mm)
5 / 127
5 / 127
5 / 127
Number of Tines
14
15
16
Bucket Depth (in/mm)
31 / 787
31 / 787
31 / 787
Grapple Opening (in/mm)
36.5 / 927
36.5 / 927
36.5 / 927
Cylinder Pressure Rating (psi/bar)
3000 / 207
3000 / 207
3000 / 207
Flat-face Couplers Standard
1/2 / 13 Body
1/2 / 13 Body
1/2 / 13 Body
Mount Type
Universal Skid Steer
Universal Skid Steer
Universal Skid Steer
Weight (lbs/kg)
820 / 372
864 / 392
896 / 406
Product No.
812535
812555
812575
Low Profile Tine Grapple Manual and Parts List
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
