Low Profile Scrap Bucket
Low Profile Scrap Bucket

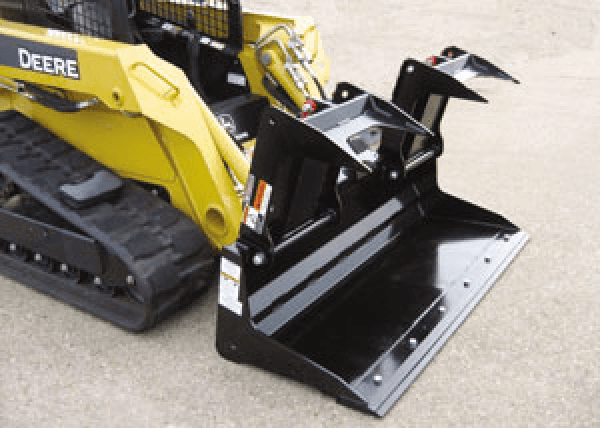

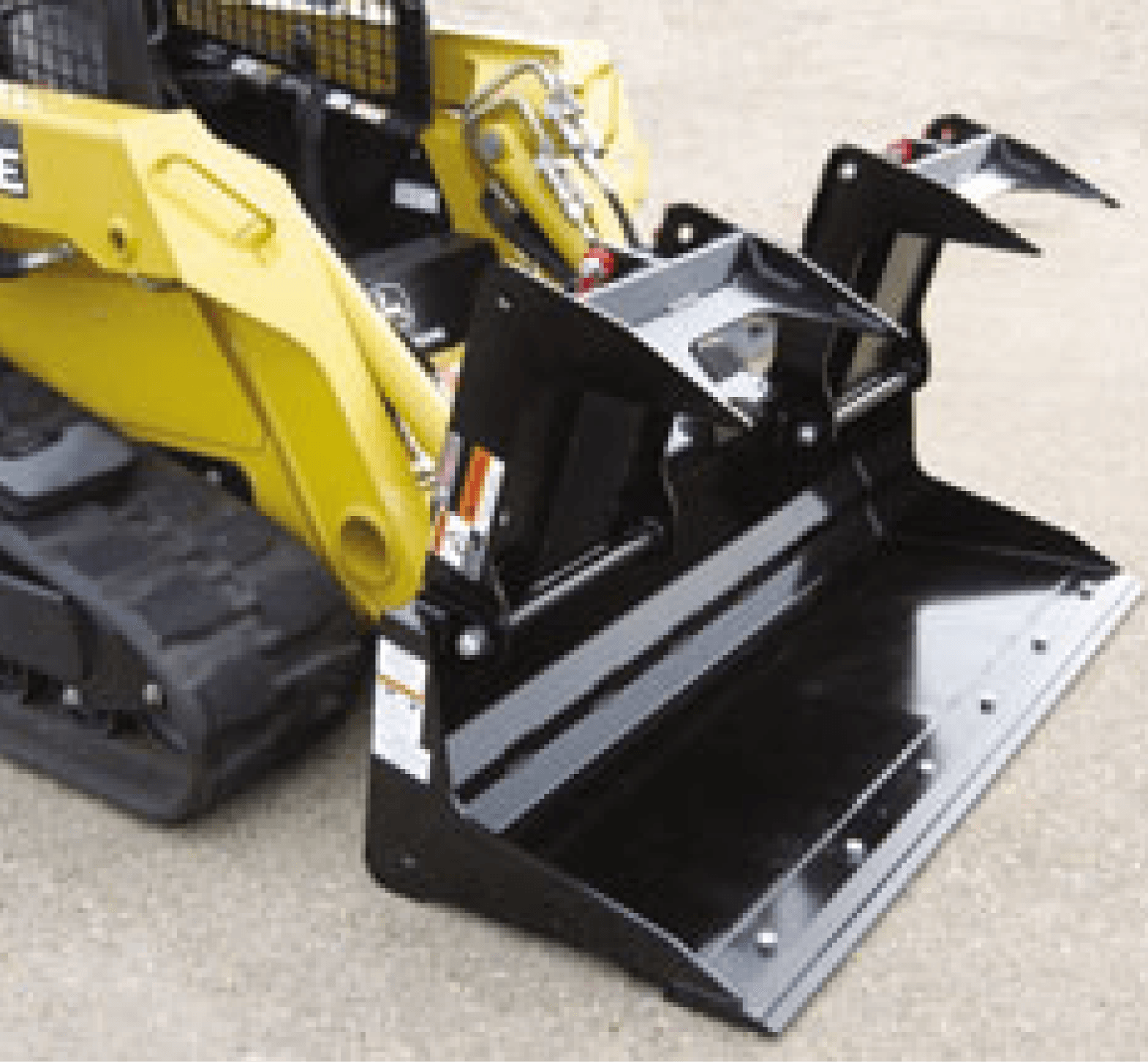

Designed for skid steers, the LPSB series scrap bucket provides material handling on the construction site for moving demolition debris, rocks, brush, and dirt. Ideal for storm clean-up, landscaping, or moving hard to handle materials.
Innovative Design. Exceptional Quality.
Features 3,000 psi cylinders with cylinder guards to protect the cylinders and components. Through the tube hose routing provides hose protection. In addition, hose routing down the left-hand back of the bucket results in maximum dump and roll back as optimum hose length is maintained. Hose routing can be reversed to right-hand side for JCB models. Flat-face couplers are standard. The scrap bucket’s cutting edge is drilled to accept an optional replaceable and reversible beveled cutting edge which provides increased bucket strength while extending bucket life.
Low Profile Scrap Bucket Specifications
Description
SPSB-72A
LPSB-78A
LPSB-84A
Overall Width (in/mm)
72 / 1829
78 / 1981
84 / 2134
Bucket Depth (in/mm)
30 / 762
30 / 762
30 / 762
Grapple Opening(in/mm)
36.5 / 930
36.5 / 930
36.5 / 930
Cylinder Pressure Rating (psi/bar)
3000 / 207
3000 / 207
3000 / 207
Flat-face Couplers Standard
1/2 / 13 Body
1/2 13 Body
1/2 13 Body
Mount Type
Universal Skid Steer
Universal Skid Steer
Universal Skid Steer
Weight (lbs/kg)
791 / 359
823 / 373
855 / 388
Product No.
812525
812545
812565
Optional Bot-on Reversible Cutting Edge (in/mm)
3/4 x 8 / 19 x 203 x Bucket Width
3/4 x 8 / 19 x 203 x Bucket Width
3/4 x 8 / 19 x 203 x Bucket Width
Optional Bolt-on Edge Product No.
811790
811830
811870
Bolt-on Cutting Edge Weight (lbs/kg)
115 / 52
125 / 57
135 / 61
Low Profile Scrap Bucket Manual & Parts List
Download the Manual
View Main Unit Parts List
View Hydraulic Unit Parts List
View Optional Bolt-on Cutting Edge Parts List
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
