Landscape Rakes MCR Series
Landscape Rakes MCR Series
Ideal for grading, leveling, spreading topsoil, removing stones as well as maintaining ball diamonds and horse exercise arenas.

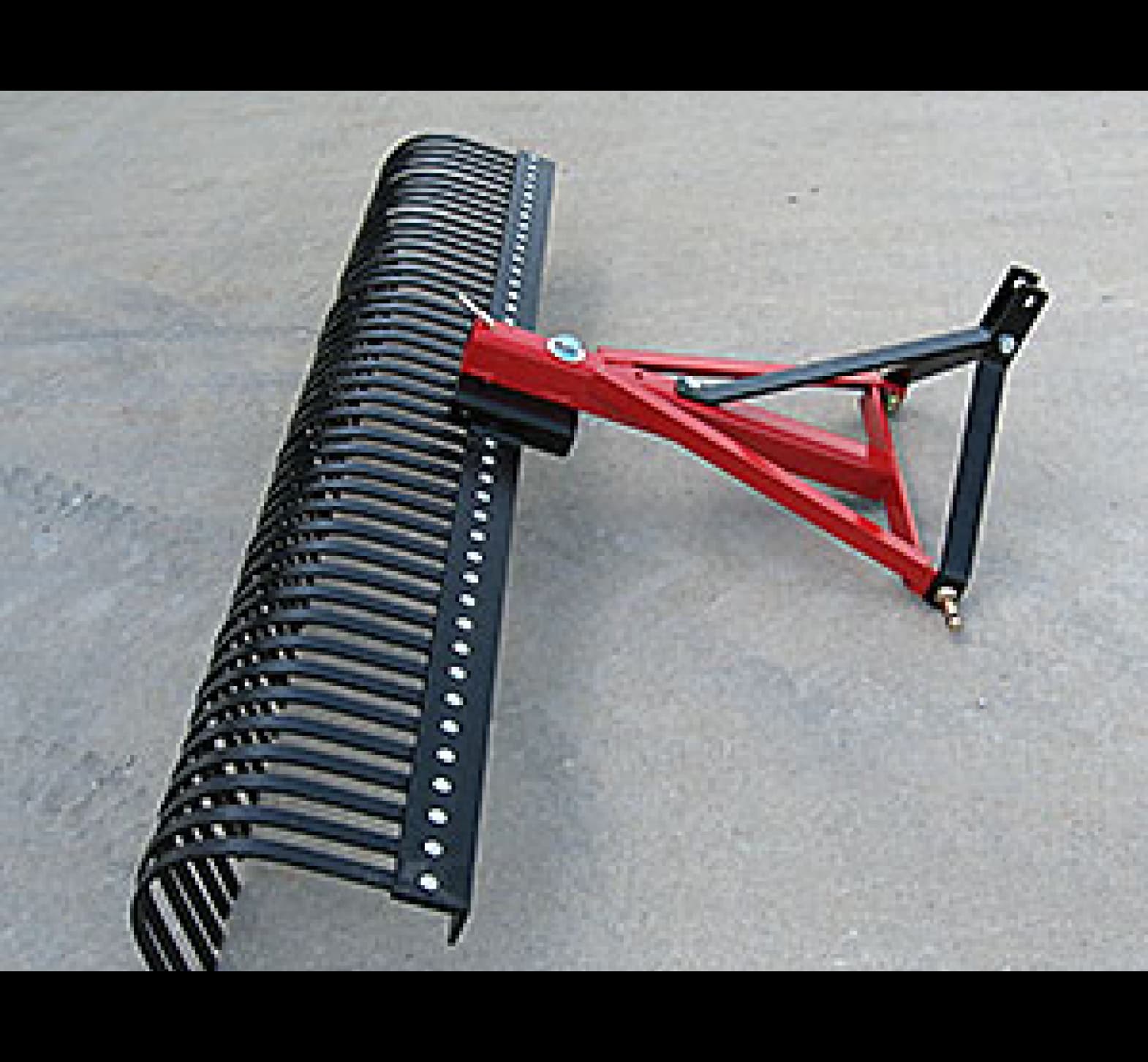

All units utilize 5/16" x 1" x 15" heat treated spring steel tines which are individually bolted to the tine bar and supported by a “waffle plate” for added strength. All models have a Cat. I (7/8" pins) 3-pt. hitch.
Landscape Rakes MCR Series Specifications
Description
MCR-6
MCR-7
Item No.:
341890
341880
Maximum HP:
40 hp
40 hp
Frame Size:
3 in. x 2.5 in. Formed Channel
3 in. x 2.5 in. Formed Channel
A-Frame:
Bolted Straps
Bolted Straps
3-pt. Hitch:
Cat. I
Cat. I
Rake Width:
6 ft.
7 ft.
Tine Bar Size:
3.5 in. x 2.5 in.
3.5 in. x 2.5 in.
Rake Positions:
3 forward/ 2 reverse
3 forward/ 2 reverse
Tine Size:
5/16 in. x 1 in.
5/16 in. x 1 in.
Weight (lbs):
187
199
Landscape Rakes MCR Series Manual and Parts List
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
