HPD-16 HSS, HPD-22Q HSS & HPD-26Q HSS Skid Steer Mounted, Hydraulic Post Drivers
HPD-16 HSS, HPD-22Q HSS & HPD-26Q HSS Skid Steer Mounted, Hydraulic Post Drivers

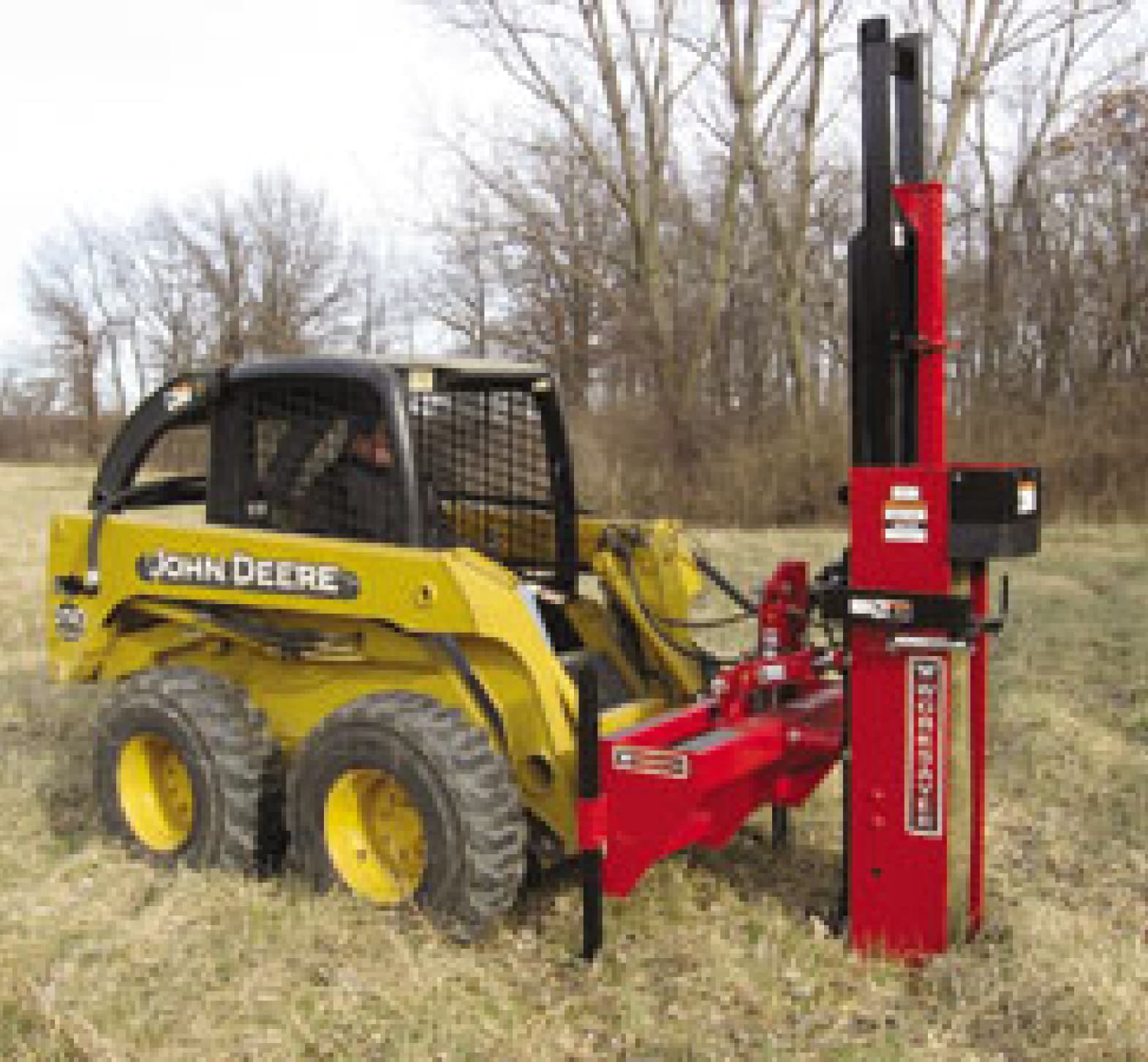

Want greater multi-task performance from your skid loader? Then connect it to a hydraulic skid steer mounted post driver. Models HPD-16 HSS, HPD-22Q HSS and HPD-26Q HSS are all hydraulic. This combination makes transport simple, enables maneuverability into areas not accessible with a tractor while increasing operator productivity and skid steer versatility.
Maximum Post Sizes:
HPD-16 HSS - 5” dia., 9’ length
HPD-22Q HSS - 8-3/4” dia., 10’ length
HPD-26Q HSS - 11” dia., 10’ length
HPD-16 HSS, HPD-22Q HSS & HPD-26Q HSS Skid Steer Mounted, Hydraulic Post Drivers Specifications
Model
HPD-16 HSS
HPD-22Q HSS
HPD-26Q HSS
Max. Post Size
5” x 9’
8-3/4” x 10’
11” x 10’
Impact at Full Stroke
32,000 lbs.
80,000 lbs.
110,000 lbs.
Impact at Half Stroke
16,000 lbs.
40,000 lbs.
55,000 lbs.
Mount Type
Skid Steer
Skid Steer
Skid Steer
Tilt Adj. Front/Back
17° each way
17° each way
17° each way
Tilt Adj. Side/Side
20° each way
20° each way
20° each way
Manual Adjust
No
No
No
Hydraulic Adjust
Yes
Yes
Yes
Adj. Cylinders/Size
(2) 3” x 6”
(2) 3” x 6”
(2) 3” x 6”
Stabilizer Legs
Standard
Standard
Standard
Big Foot
Yes
Yes
Yes
Slide Blocks Material
Nyrim
UHMW*
UHMW*
Spring Post Holder
Standard
Standard
Standard
Min. Hydraulic Req.
3-4 GPM
6-8 GPM
12 GPM
QuickChange Rod Seal
Yes
Yes
Yes
Q-springs
N/A
Yes
Yes
Valve(s)
Sgl./Dbl. Spool
Sgl./Dbl. Spool
Sgl./Dbl. Spool
Hoses less couplers
Standard
Standard
Standard
Weight (lbs.)
950
1245
1429
Product Number
814630
815320
815350
HPD-16 HSS, HPD-22Q HSS & HPD-26Q HSS Skid Steer Mounted, Hydraulic Post Drivers Manual and Parts List
Download HPD-16/22Q/26Q Manual
View HPD-16 Parts List
View HPD-22Q Parts List
View HPD-26Q Parts List
View HSS Hydraulic Skid Mount Parts List
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
