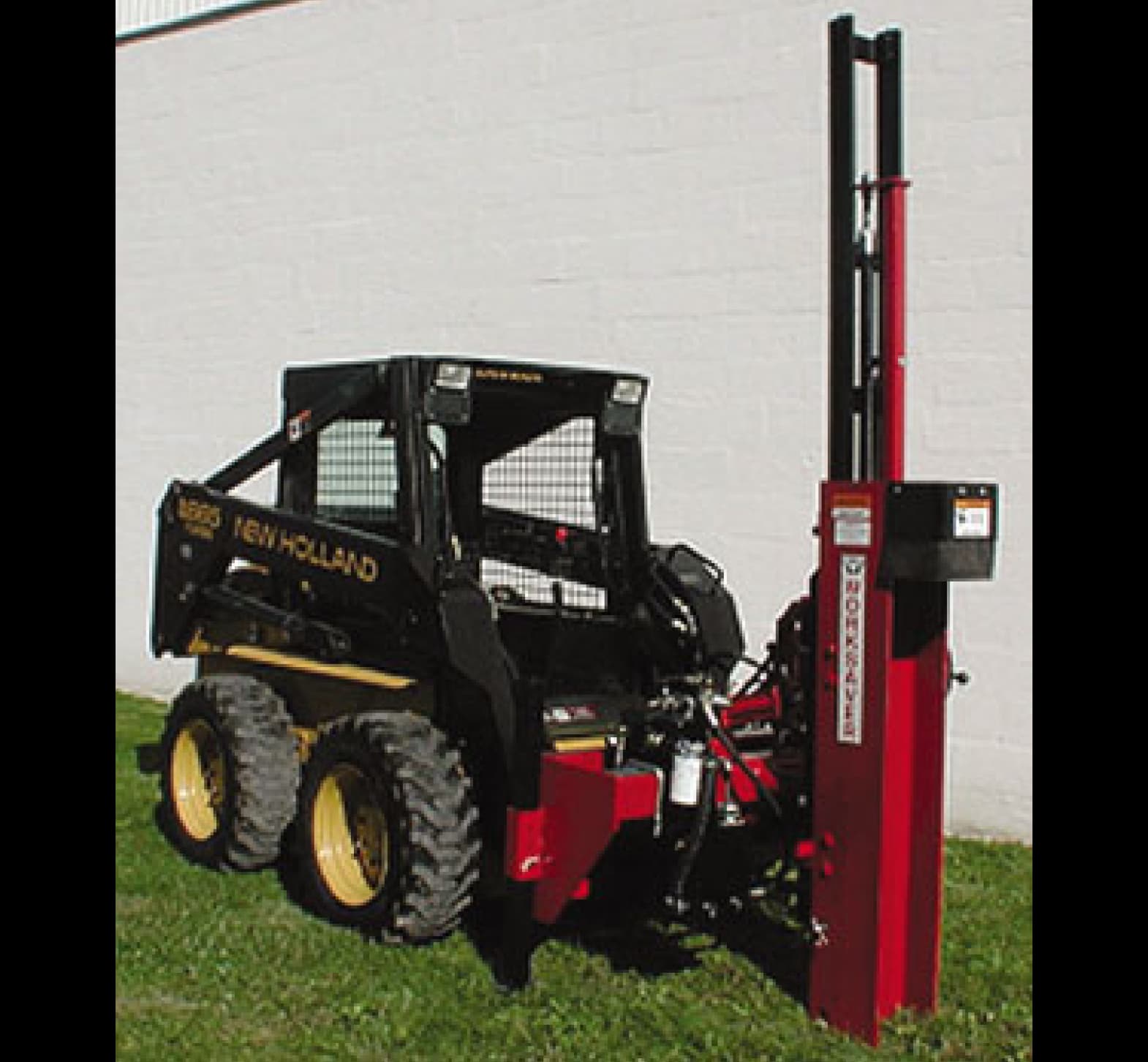

HPD-16/22Q/26Q HSS/P Self-contained, Skid Steer Mounted, Hydraulic Post Drivers
HPD-16/22Q/26Q HSS/P Self-contained, Skid Steer Mounted, Hydraulic Post Drivers
Save time by simplifying driver installation and removal with a self-contained hydraulic post driver. These skid steer post drivers feature their own hydraulic pump, motor and reservoir. No special return line fittings are required with these units. Gear pump is used to move the oil within the self-contained system providing reliable operation. Note: Some skid steer models require the Self-contained post driver – check with your dealer.
Maximum Post Sizes:
HPD-16 HSS/P - 5” dia., 9’ length
HPD-22Q HSS/P - 8-3/4” dia., 10’ length
HPD-26Q HSS/P - 11” dia., 10’ length
HPD-16/22Q/26Q HSS/P Self-contained, Skid Steer Mounted, Hydraulic Post Drivers Specifications
Model
HPD-16 HSS/P
HPD-22Q HSS/P
HPD-22Q HSS/P
Max. Post Size
5” x 9’
8-3/4” x 10’
11” x 10’
Impact at Full Stroke
32,000 lbs.
80,000 lbs.
110,000 lbs.
Impact at Half Stroke
16,000 lbs.
40,000 lbs.
55,000 lbs.
Mount Type
Skid Steer
Skid Steer
Skid Steer
Tilt Adj. Front/Back
17° each way
17° each way
17° each way
Tilt Adj. Side/Side
20° each way
20° each way
20° each way
Manual Adjust
No
No
No
Hydraulic Adjust
Yes
Yes
Yes
Adj. Cylinders/Size
(2) 3” x 6”
(2) 3” x 6”
(2) 3” x 6”
Stabilizer Legs
Standard
Standard
Standard
Big Foot
Yes
Yes
Yes
Slide Blocks Material
Nyrim
UHMW*
UHMW*
Spring Post Holder
Standard
Standard
Standard
Min. Hydraulic Req.
10 GPM
10 GPM
12 GPM
QuickChange Rod Seal
Yes
Yes
Yes
Q-springs
N/A
Yes
Yes
Valve(s)
Sgl./Dbl. Spool
Sgl./Dbl. Spool
Sgl./Dbl. Spool
Hoses less couplers
Standard
Standard
Standard
Self Contained Unit
Yes
Yes
Yes
Reservoir Capacity
5 Gallons
5 Gallons
5 Gallons
Pump Type
Gear
Gear
Gear
Pressure Relief Setting
2000 psi
2000 psi
2000 psi
Weight (lbs.)
1283
1385
1575
Product Number
815020
815325
815355
HPD-16/22Q/26Q HSS/P Self-contained, Skid Steer Mounted, Hydraulic Post Drivers Manual and Parts List
Download HPD-16/22Q/26Q HSS/P Manual
View Power Package Parts List
View Skid Steer Mount Parts List
View Hydraulic Valve Bracket Parts List
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
