Front Loader Large Rectangular Bale Carriage
Front Loader Large Rectangular Bale Carriage

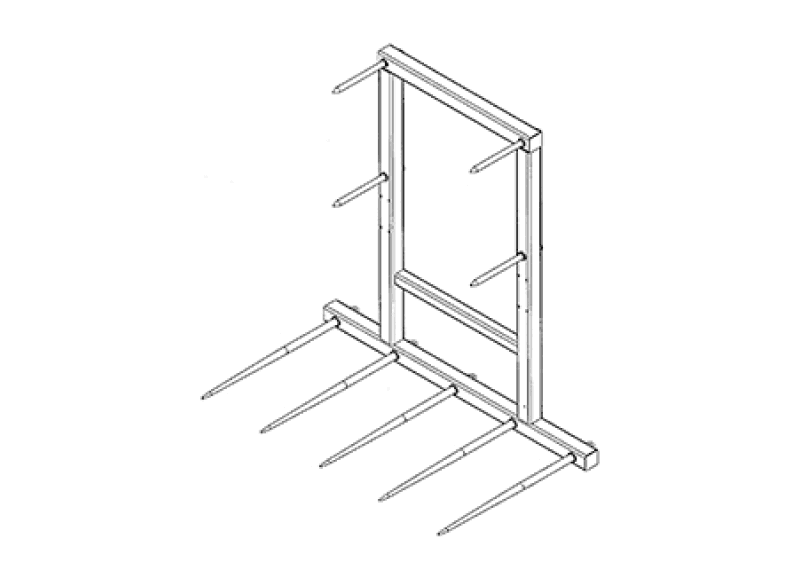

Engineered to handle and stack large rectangular bales either two 4' x 4' x 8' or three 3' x 3' x 8' rectangular bales. Rated at 6,000 lbs, these products feature four bolt in spears with usabvle lengths of 40.5" and two balance spears. The frame provides great visibility and measures 72" wide, 77 7/8" high, center is 46" wide.
See the Large Rectangular Bale Carriage in Action
Model RBH-4610E
Designed for tractor front loaders with Euro / Global quick attach. Designed to pick-up two 4' x 4' x 8' or three 3' x 3' x 8' rectangular bales. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 77-7/8” high, center is 46” wide.
Item #833635
Unit weight 552 lbs.
Model RBH-4620M
Designed for Manitou Telehandlers models MLT-625,MLT-634, MLT-840, MLT-960, Gehl CT-516, CT-618, CT-723, New Holland LM-435 (Blue), LM-5040, LM-5050, LM-5060. Designed to pick-up two 4’ x 4’ x 8’ or three 3’ x 3’ x 8' rectangular bales. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 77-7/8” high, center is 46” wide.
Item #833640
Unit weight 592 lbs.
Model RBH-4630ss
Designed for skid steers and tractor front loaders with “universal” skid steer quick attach. Designed to pick-up two 4’ x 4’ x 8’ or three 3’ x 3’ x 8' rectangular bales. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2-upper balance spears. Frame is 72” wide x 77-7/8” high, center is 46” wide.
Item #833645
Unit weight 539 lbs.
Model RBH-4640JCBQ
Designed for JCB Telehandlers with Q-fit, models, JCB-525, 530, 532, 536, 540, 550, 5508, 505-19, 505-22, 506-36, 508-40, 506-23TC, 508-66TC, 509-23STC, 509-45STC, 510-44STC, 510-55STC, 512-26STC, 526-56AGRI, 527-58AGRI, 535-95AGRI, 536-60AGRI-Plus, 541-70AGRI-Plus, 56-80AGRI-Plus. Designed to pick-up two 4’ x 4’ x 8’ or three 3’ x 3’ x 8' rectangular bales. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 77-7/8” high, center is 46” wide.
Item #833650
Unit weight 653 lbs.
Model RBH-4650JDWL
Designed for John Deere Wheel Loader, models 244J & 304J. Designed to pick-up two 4’ x 4’ x 8’ or three 3’ x 3’ x 8' rectangular bales. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 77-7/8” high, center is 46” wide.
Item #833655
Unit weight 552 lbs.
RBH-4670 JRB-416
Designed for wheel loaders equipped with JRB-416 coupler
Designed to pick-up two 4’ x 4’ x 8’ or three 3’ x 3’ x 8' rectangular bales. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 77-7/8” high, center is 46” wide.
Item #833665
Unit weight TBA lbs.
RBH-4660 JD Global Cat. 2
Designed for John Deere tractor front loaders with Global Category 2 carriers.
Designed to pick-up two 4’ x 4’ x 8’ or three 3’ x 3’ x 8' rectangular bales. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 77-7/8” high, center is 46” wide.
Item #833660
Unit weight TBA lbs.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
