Front Loader FLBS Series Attachments
Front Loader FLBS Series Attachments
The FLBS-Series is designed for use on pin-on type front loaders, they can be paired with a set of optional pin-on or interfacing quick-attach brackets available for most of today's loaders. Models available to handle round bales as well as large or mid-size rectangular bales.
Optional pin-on brackets or interfacing brackets for most popular quick-attach front loaders are available. Select models are convertible for use on a -pt. hitch with the addition of the optional bolt-on ear assembly (not Quick Hitch adaptable).

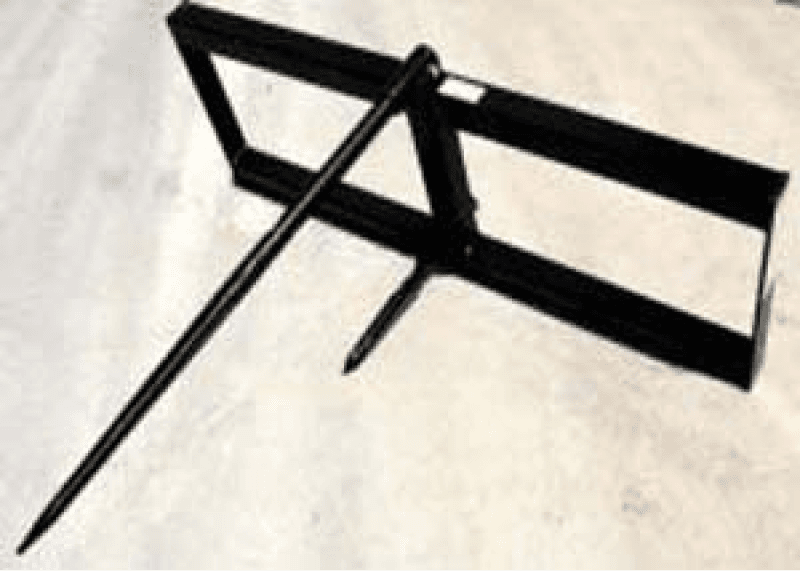

Model FLBS-2200
Loader Bale Spear rated at 2,200 lbs. Unit has a tapered spear with a useable length of 42". Designed for use on tractor front loaders. Features an all welded frame, cast steel weld-on spear sockets, and bolt-in spears for increased durability. Optional interfacing brackets for most loader quick attach systems are available. (will not accept 831110 brackets). Item #832380, 121 lbs. Instead of 831110 brackets, consider SSB-2200.

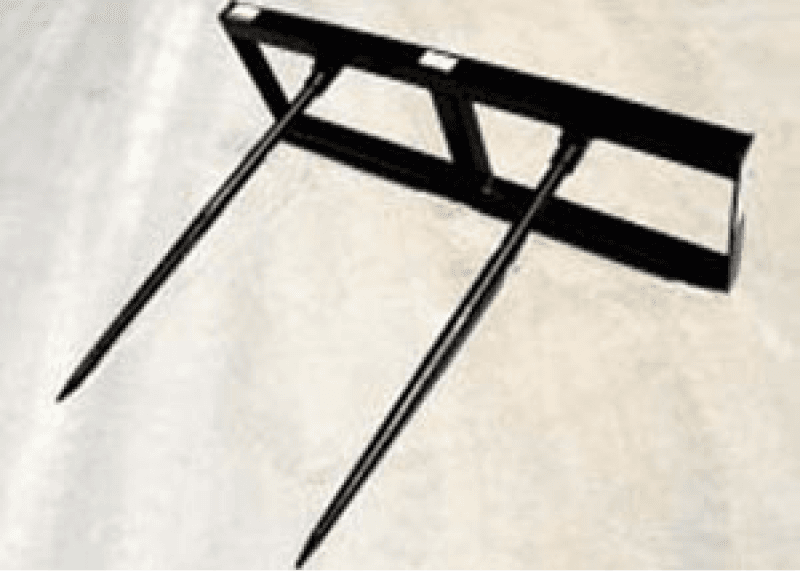

Model FLBS-3000
Loader Bale Spear rated at 3,000 lbs. Unit has a tapered spear with a useable length of 42". Designed for use on tractor front loaders. Features an all welded frame, cast steel weld-on spear sockets, and bolt-in spears for increased durability. Optional interfacing brackets for most loader quick attach systems are available. (will not accept 831110 brackets). Item #832385, 136 lbs. Instead of 831110 brackets, consider SSB-3000.
Model FLBS-6000
Front loader dual bale handler rated at 6,000 lbs. Designed to transport two rounded bales at once, reducing trips across the field. Unit is 76" x 24". Requires loader brackets be welded to the unit. Item #834160, 250 lbs.
Model FLBS-330
Loader Bale Spear rated at 3,000 lbs. Unit has three tapered spears spaced 26-1/2" apart with a useable length of 26". For Mid-Size Square bales. Designed for use on tractor front loaders. Features an all welded frame, cast steel weld-on spear sockets, and bolt-in spears for increased durability. Optional upright kit (831095) for handling two bales. Optional interfacing brackets for most loader quick attach systems are available. Item #832390, 164 lbs. Instead of 831110 brackets, consider SSRB-330.

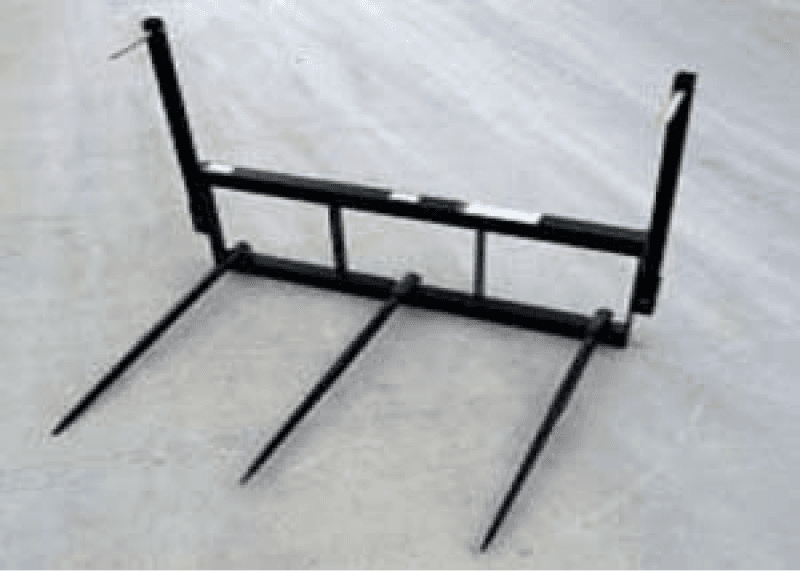

Model FLBS-340
Loader Bale Spear rated at 3,000 lbs. Unit has three tapered spears spaced 26-1/2" apart with a useable length of 26". For Mid-Size Square bales. Designed for use on tractor front loaders. Features an all welded frame, cast steel weld-on spear sockets, and bolt-in spears for increased durability. Optional upright kit (831095) for handling two bales. Optional interfacing brackets for most loader quick attach systems are available. Item #832390, 164 lbs. Instead of 831110 brackets, consider SSRB-330.

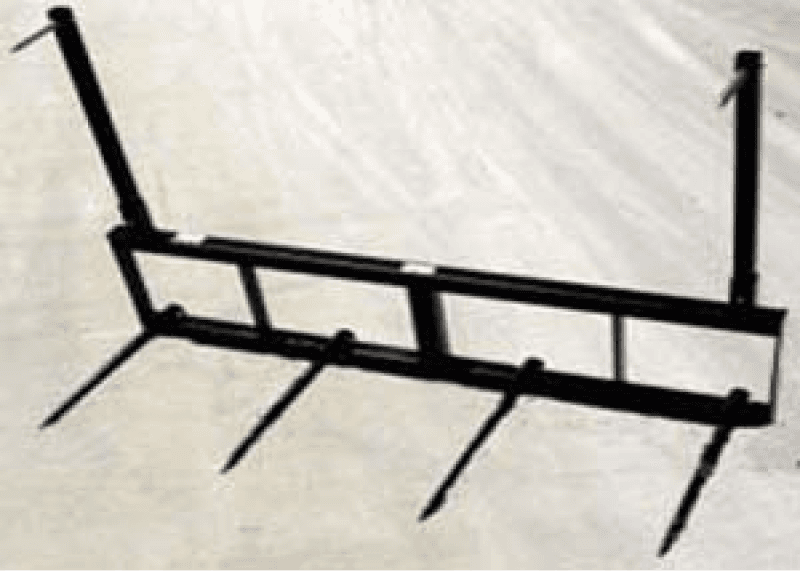

Model FLBS-432
Loader bale spear to handle Mid-Sized square bales. Features 79-1/2 “wide frame with four tapered spears with useable length of 26”, spaced 24” apart. Optional upright kit (831095) for handling two square bales. Optional interfacing brackets for most quick attach systems are
available. Item #832405, 169 lbs.

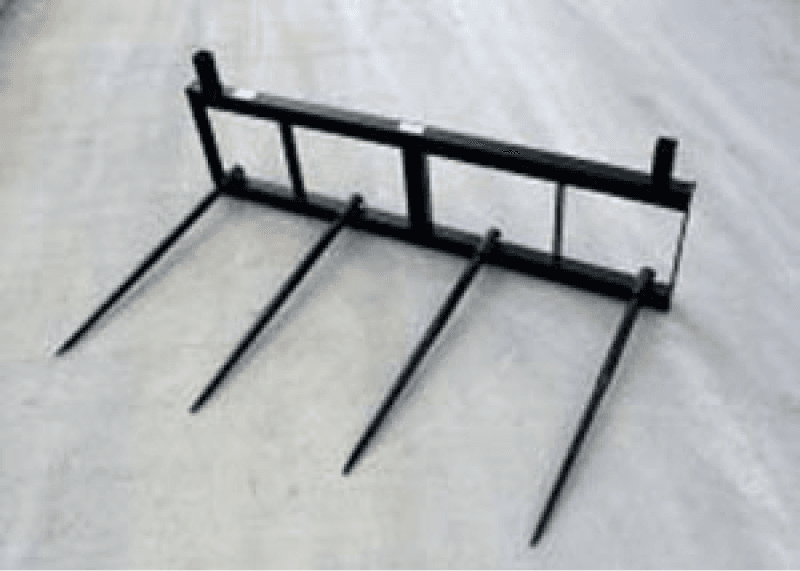

Model FLBS-449
o Loader bale spear to handle Large-Sized square bales. Features 79-1/2" wide frame with four tapered spears with useable length of 42", spaced 24” apart. Optional upright kit (831095) for handling two square bales. Optional interfacing brackets for most quick attach systems are available. Item #832410, 212 lbs.
Optional Kits
Item
Description
Optional Upright Kit (831095)
Optional bolt-in upright kit (831095) for FLBS models 330/340/432/449 to allow handling of two bales at once. 32 lbs.
Optional Upright Kit (831815)
Optional bolt-on assembly (831095) allows select FLBS models (will not fit FLBS-2200) to be used on a Cat. II 3-pt. hitch (requires 830345 standard brackets with 830358 bushing kit makes unit Quick Hitch compatible). 17 lbs.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
