Euro / Global Bale Spears
Euro / Global Bale Spears
These attachments feature all welded frame design, that incorporates the interfacing quick attach brackets welded to the unit. The attachments are loader model specific.

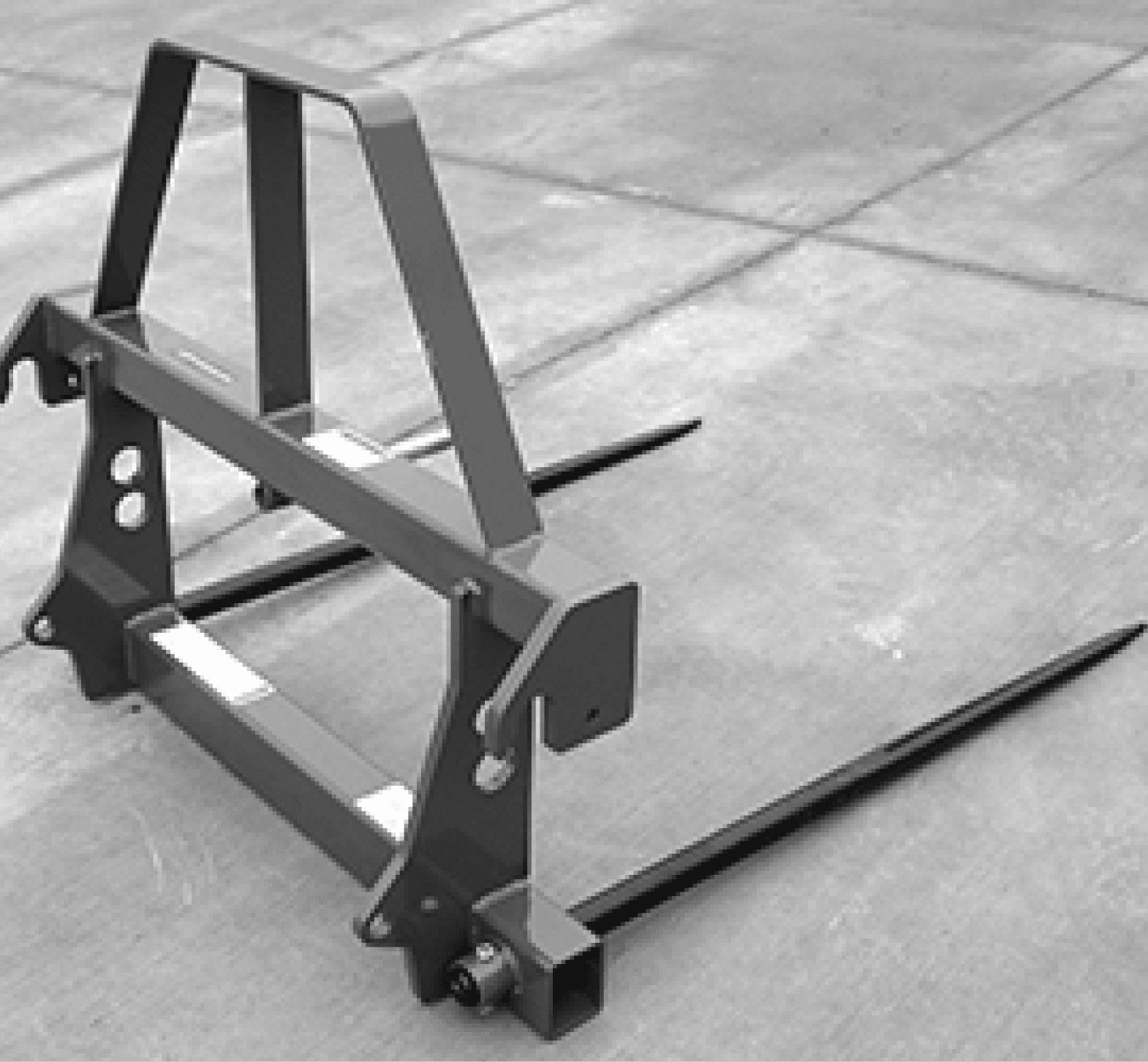

Euro/Global Style Integrated Frame Bale Spears - with Bolt-in Spears
All welded frame design that incorporates the Euro/Global interface. Designed to fit tractor loaders with the widely used Euro/Global tool carrier. Models are offered to handle round & rectangular bales. All units feature bolt-in forged spears for easy penetration of the bale.

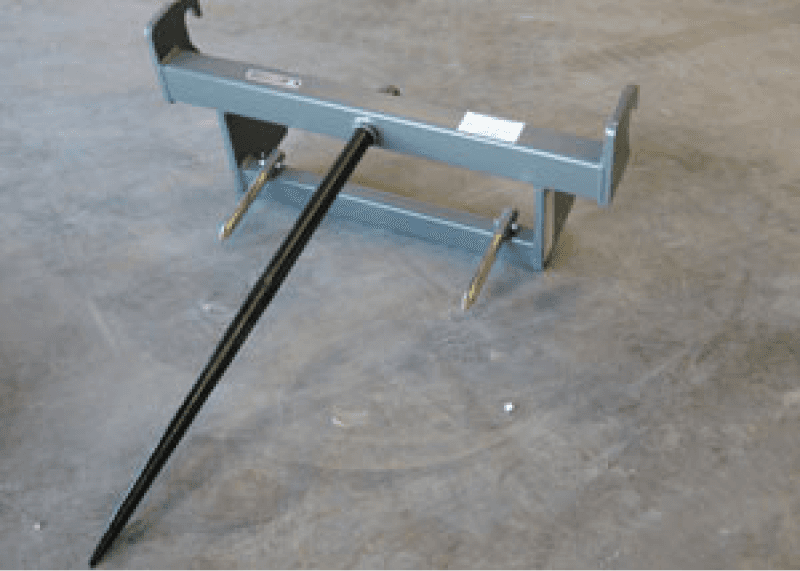

Model GLB-2200
Single bolt-in forged spear with useable length of 42". Designed to handle round bales. Rated at 2,200 lbs. Two balance spikes, 1" x 8-1/2" useable. Item #832205, 130 lbs.

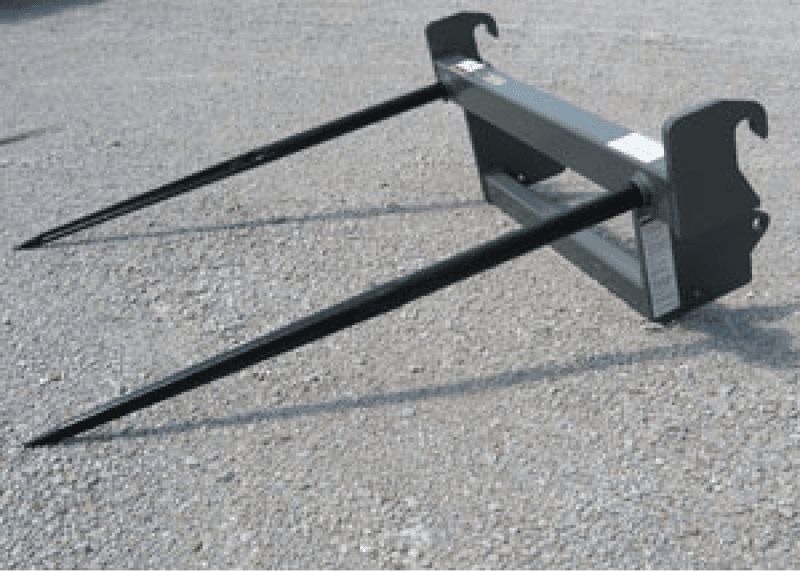

Model GLB-3000
Dual bolt-in forged spears spaced 30" apart, with useable length of 42". Designed to handle round bales. Rated at 3,000 lbs. Item #832220, 144 lbs.
Model ELB-330
Triple bolt-in forged spears spaced 26" apart, with usable length of 26". For handling single or double (with optional uprights #831095) large-size square bales. Rated at 3,000 lbs. Item #832365, 175 lbs.

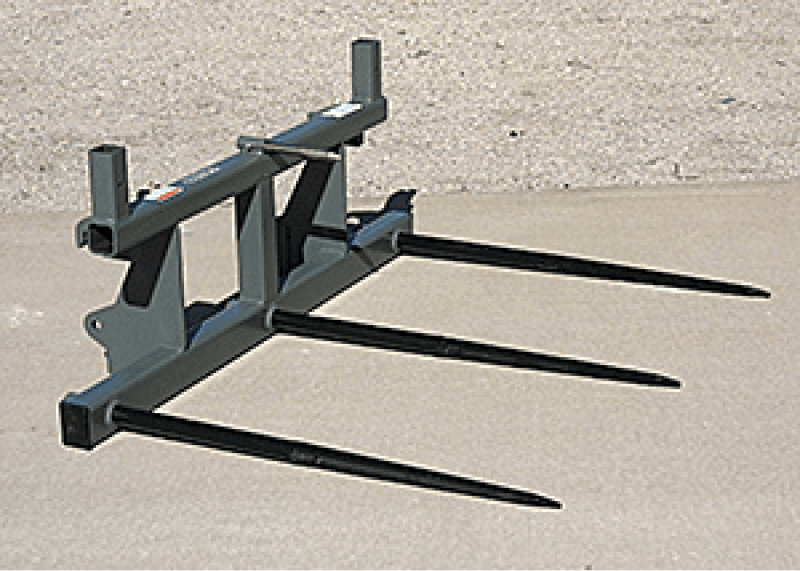

Model ELB-340
Triple bolt-in forged spears spaced 26" apart, with usable length of 42". For handling single or double (with optional uprights #831095) large-size square bales. Rated at 4,000 lbs. Item #832370, 200 lbs.

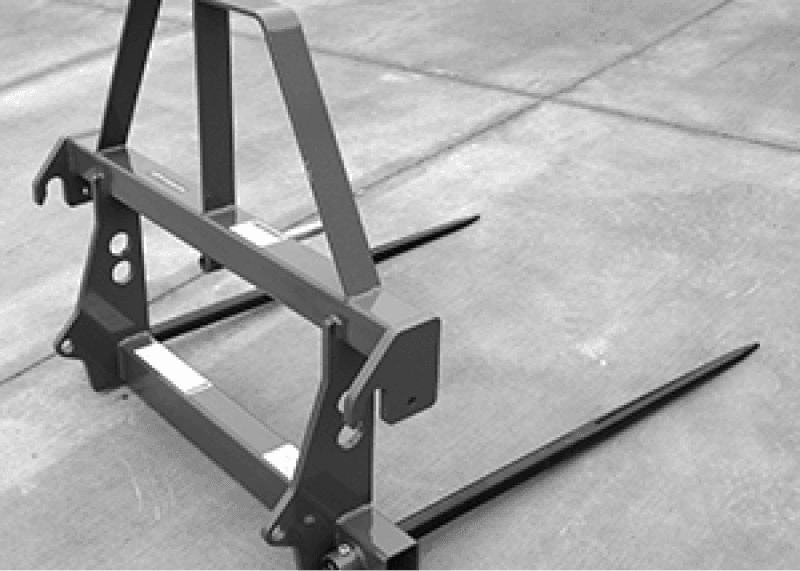

Model ELB-3000
Dual bale spear with bolt-in spears mounted in the lower tube for handling round bales. Spears have a useable length of 42". Frame is 41.5" wide and 35.2" high. Unit is rated at 3,000 lbs. Note: Spears must be inserted into bale, DO NOT USE spears as pallet forks, or go under the bale. Item #832195, 168 lbs.

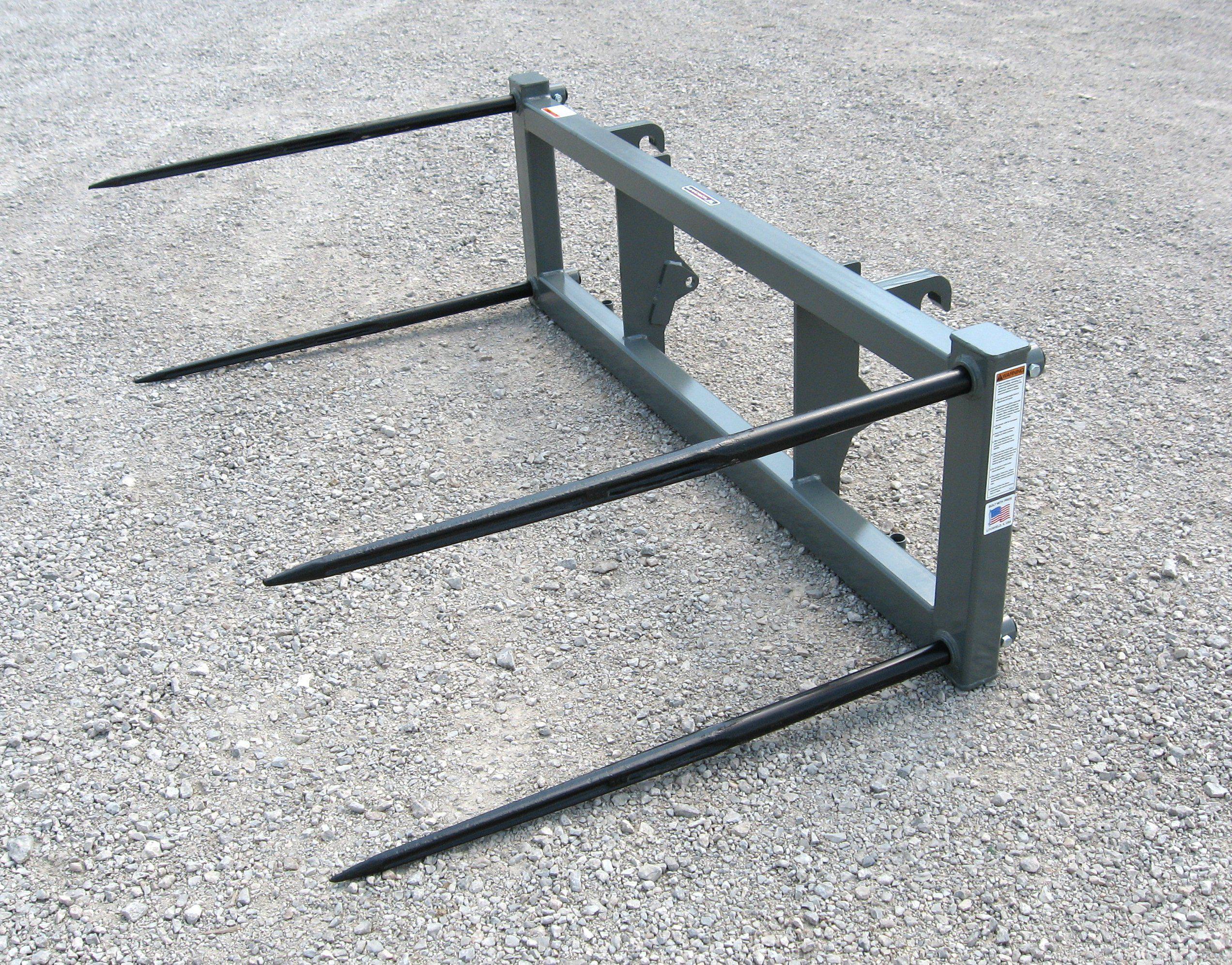

Model GDBH-6000
Designed to transport two round bales at once. Frame size 76" x 24" with 4 bolt-in spears with 42" useable length. Rated at 6,000 lbs. Item #834155, 265 lbs.
Optional upright kit (831095) must be used when handling two bales with ELB-330 / 340
Upright Kit 831095
Optional bolt-on upright kit for handling two square bales. Fits models ELB-330 & ELB-340.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
