Electric Sub-Compact Grapple
Electric Sub-Compact Grapple

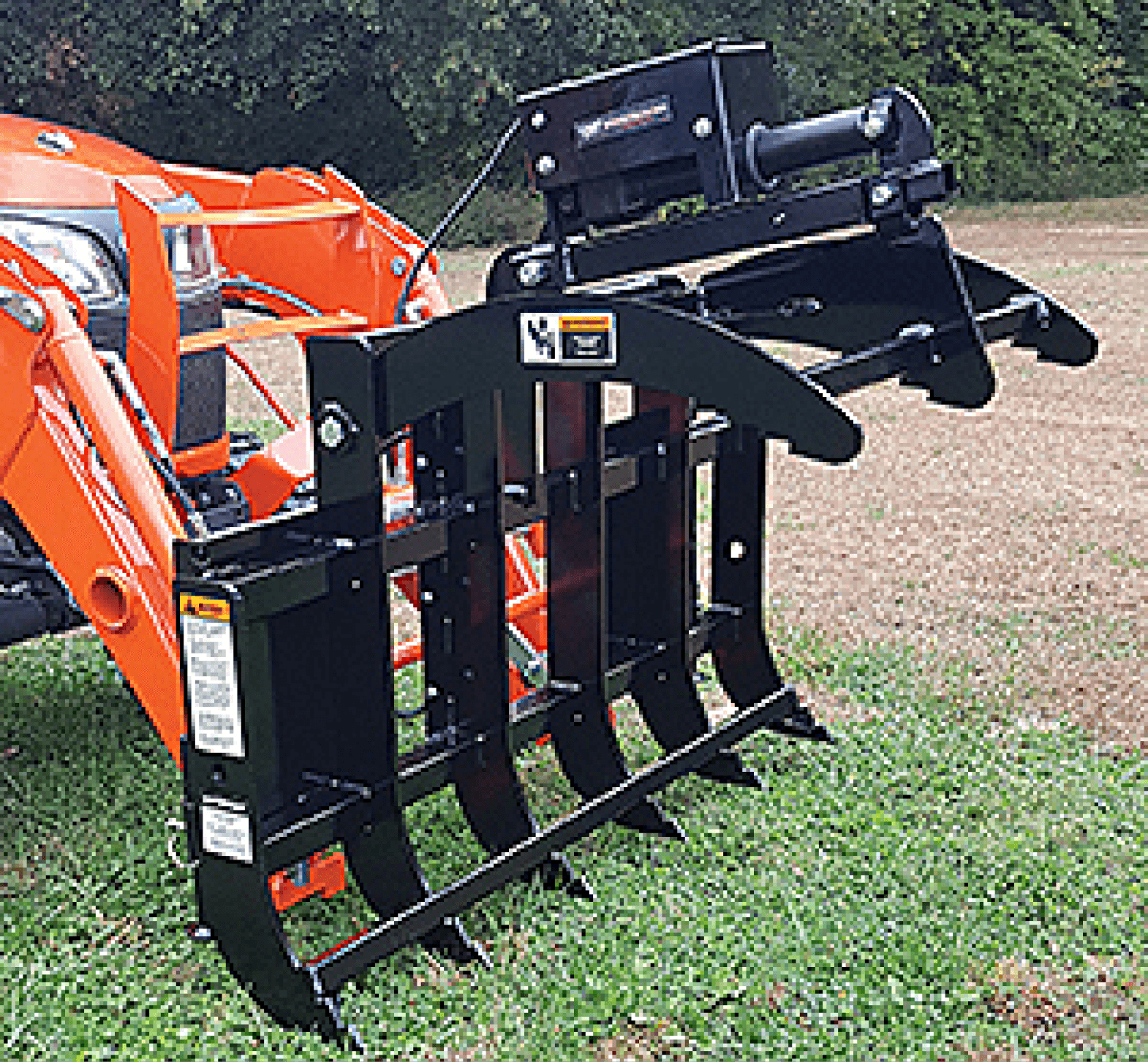

No auxiliary hydraulics to operate the clamp on a grapple? No problem with Worksaver’s (patent applied for) Electric Sub-Compact Grapple. All you need is a connection to the battery. Engineered for Sub-Compact tractors (up to 32-hp) with a loader to handle debris & so much more. The ESCGSS-48A and ESCGJD-48A are opening up possibilities never before available to large and small property owners.
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.

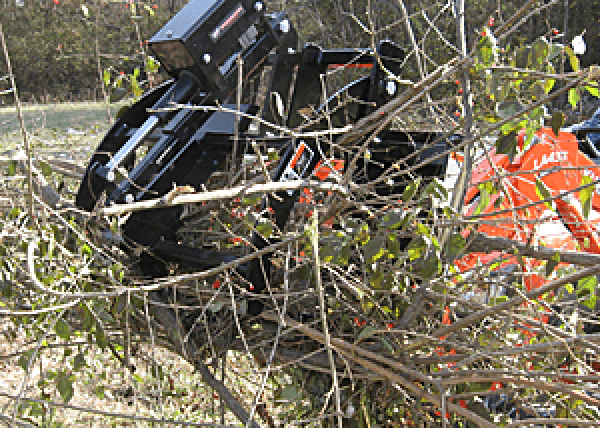

See the Electric Sub-Compact Grapple in Action
Now that's the perfect attachment for your tractor

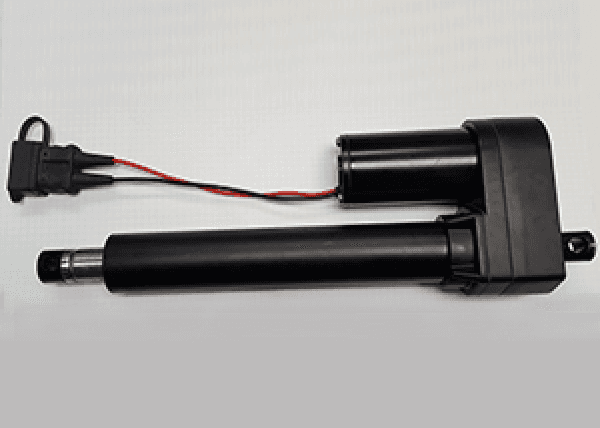

- 12-volt linear actuator with 8-inch stroke operates the grapple clamp
- Includes wiring harness for direct connection to the tractors’ battery

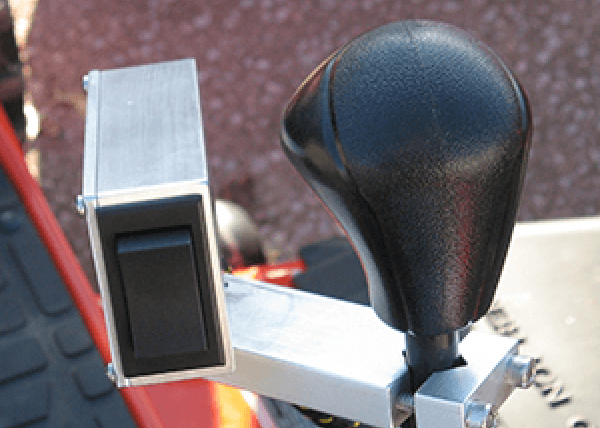

- Pre-wired push button switch controls the grapples’ linear actuator
- Designed for sub-compact tractors up to 32 horsepower
Electric Sub-Compact Grapple Specifications
Description
ESCGSS-48A
ESCGJD-48A
Overall Width (in/mm)
49 / 1245
49 / 1245
Mount Type
Skid Steer

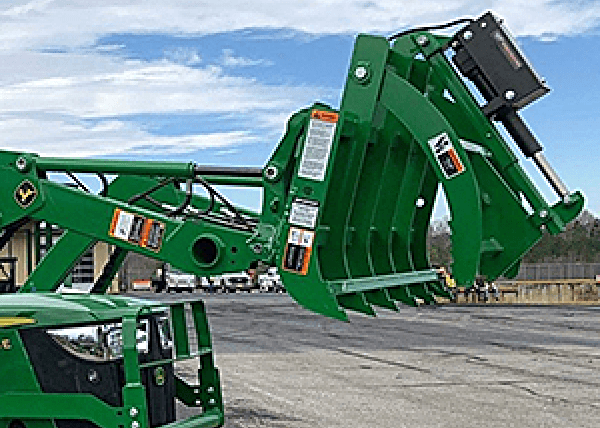

JD Hook & Pin
Overall Height Closed (in/mm)
41.5 / 1054
41.5 / 1054
Grapple Opening (in/mm)
31 / 787
31 / 787
Upper Grapple Width (in/mm)
28.25 / 718
28.25 / 718
Lower Grapple Width (in/mm)
49 / 1245
49 / 1245
Tine Spacing (in/mm)
9.25 / 235
9.25 / 235
Number of Tine/Grapple (lower/upper)
6 / 3
6 / 3
Type of Linear Actuator
12-volt, IP65 Rated
12-volt, IP65 Rated
Actuator Stroke (in/mm)
8/ 203
8 / 203
Weight (lbs/kg)
252 / 114
233 / 106
Product No.
812075
812095
Electric Sub-Compact Grapple Manual and Parts List
Download the Manual (prior to 1/1/2022)
Download the Manual (1/1/2022 to 8/31/2024))
Download the Manual (after 9/1/2024)
View Parts List (1/1/2022 to 8/31/2024)
View Parts List (after 9/1/2024)
Electric Sub-Compact Grapple Images
