Bale Clamping Attachments
Bale Clamping Attachments
Specialty front loader hay handling attachments. These attachments require that the front loader bucket be removed to install unit.

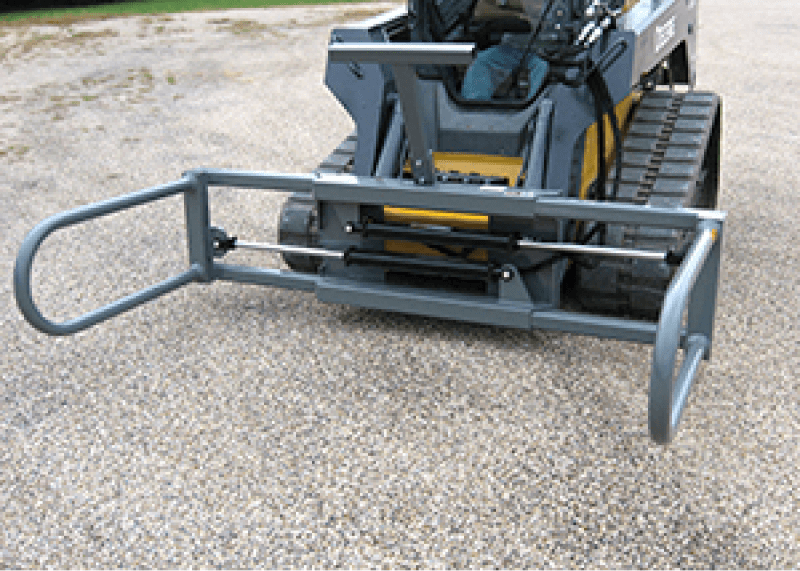

Large Rectangular Bale Squeeze
Model SSBS-48D
Bale squeeze for large rectangular bales, wrapped / unwrapped. Both arms open hydraulically to handle bales from 48” to 96” in width, up to 2,800 lbs. Unit handles wrapped / unwrapped large rectangular bales as well as round bales. Mounts to skid steer loaders & tractor front loaders that use the industry standard “universal” skid steer quick attach system. Unit is shipped with cylinders, hoses and flat-face couplers. Item #834200, 715 lbs
Model GLBS-48D
Designed for tractor loaders with the Euro/Global tool carrier. Both arms open on this bale squeeze to gently handle wrapped / unwrapped large rectangular bales as well as round bales. Arms open 48” to 96” and can handle bales up to 2,800 lbs. Unit is shipped with hydraulic cylinders, less hoses and couplings. Item #834210, 730 lbs.
UBH Series Bale Hand
Model UBH-2072
Shown with Optiona Brackets
Loader "Bale Hand" Designed to handle 4' to 6' round bales, wrapped or dry, up to 2,200 lbs. Both arms open to clamp the bale. Mates with pin-on brackets or interfacing quick-attach brackets for most popular loaders. These brackets will fit loaders with a center to center loader arm distance of 54" or less. Hydraulic cylinder is standard (less hoses). Item #832940, 520 lbs.
Skid Steer Bale
Model SSBH-2072
Skid Steer Bale Hand rated at 2,200 lbs., it is designed to handle 4-ft to 6-ft diameter round bales. Both arms open to gently clamp wrapped or unwrapped bales (less hoses). Item #832965, 572 lbs.
GLBH Series Bale Hand
Model GLBH-2072
Euro/Global Loader
Designed for tractor front loaders that use the Euro/Global quick attach system. Unit will gently handle wrapped and unwrapped round bales from 4-ft to 6-ft in diameter. Rated at 2,200 lbs. unit includes hydraulic cylinder less hoses. Item #832980, 555 lbs.

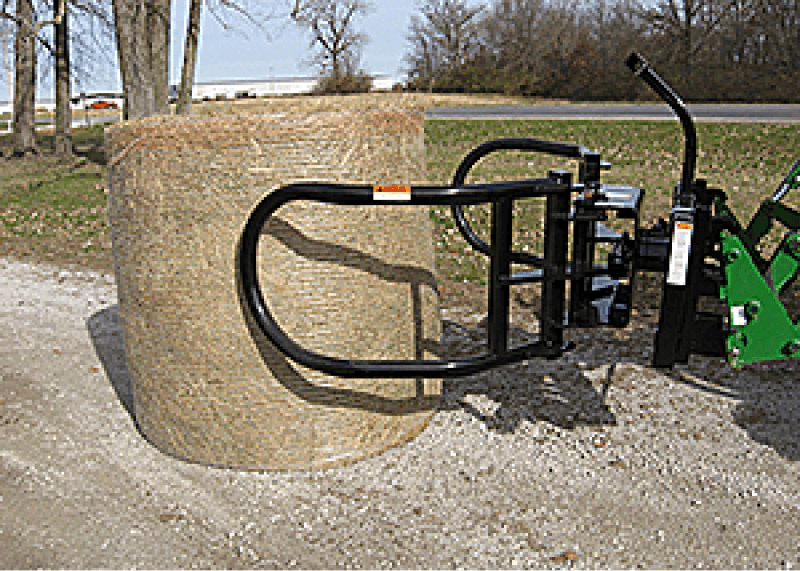

"R" Series Rotating Bale Hand
See the Series "R" Rotating Bale Hand in Action
UBH-2072R - Rotating Bale Hand rated at 2,200 lbs. for round bales 4-6 ft. Both arms open to clamp the bale. Includes cylinders (less hoses). Optional interfacing brackets for most loaders are available. Not for 3-pt. Item #832990. Weight 705 lbs.
GLBH-2072R - Rotating Bale Hand for tractor loaders with the Euro/Global quick attach. Rated at 2,200 lbs. for round bales 4-6 ft. Both arms open to clamp the bale. Includes cylinders (less hoses). Item #832985. Weight 735 lbs.
JDBH-2072R - Rotating Bale Hand for JD 400/500 Series quick attach systems. Rated at 2,200 lbs. for round bales 4-6 ft. Both arms open to clamp the bale. Includes cylinders (less hoses). Item #832975. Weight 740 lbs.
SSBH-2072R - Rotating Bale Hand, Skid Steer mount. Rated at 2,200 lbs. for round bales 4-6 ft. Both arms open to clamp the bale. Includes cylinders (less hoses). Item #832995. Weight 730 lbs.
UBH-2072R
The “R” series (UBH-2072R, GLBH-2072R, JDBH-2072R and SSBH-2072R) is leading the way in stacking bales. The “R” series allows the operator to pick up a bale rotate it up to 110⁰ and stack it like a soup can for increased versatility. All without having to place the bale down and re-position the clamps. This eliminates double handling, saving the operator time when unloading from a trailer. Optional solenoid kit for power units equipped with single auxiliary valve includes hoses & couplers (Item #832379)
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
