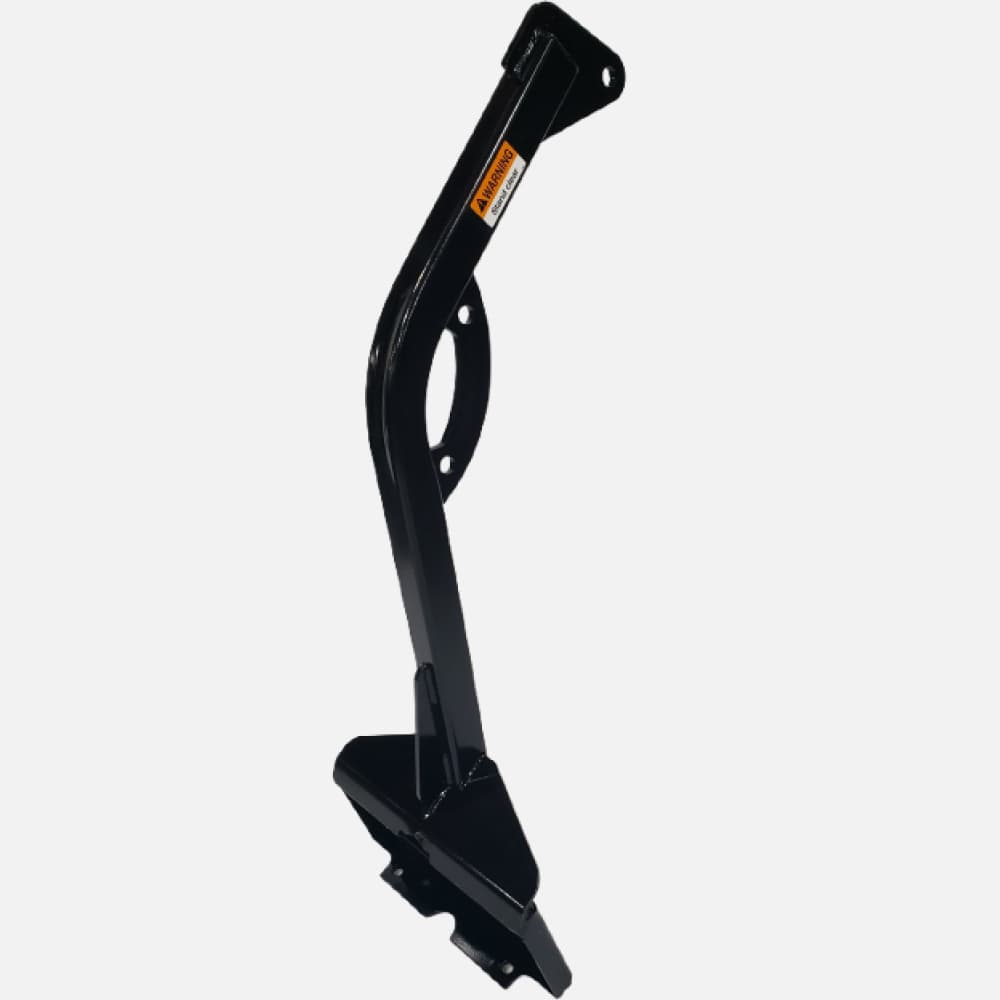

811650 Mini Skid Steer Crane Boom
Mini Skid Steer Crain Boom
Mini Skid Steer Crane Boom is designed for placing new trees, transporting cut trees or moving material on the jobsite. Boom’s overall length is 59.25 inches and features three lifting points for increased flexibility in loading and lifting. Rated capacity is 2,500 lbs.
Mini Skid Steer Crane Boom Specifications
Description
Details
Lifting Capacity at Farthest Attaching Point (lbs. /kg)
2500 / 1134
Lifting Capacity at Middle Attaching Point (lbs. / kg)
2700 / 1224.72
Lifting Capacity at Closest Attaching Point (lbs. / kg)
2900 / 1315.44
Boom Construction
3” Square Steel Tubing
Mount Type
Universal Mini Skid Steer
Overall Boom Length (in/mm)
59.25 / 1505
Boom Reach Over Mount (in/mm)
48 / 1219
Weight (lbs. / kg)
100 / 45.36
Product No.
811650
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
