65 Series Powered Landscape Rakes
65 Series Powered Landscape Rakes

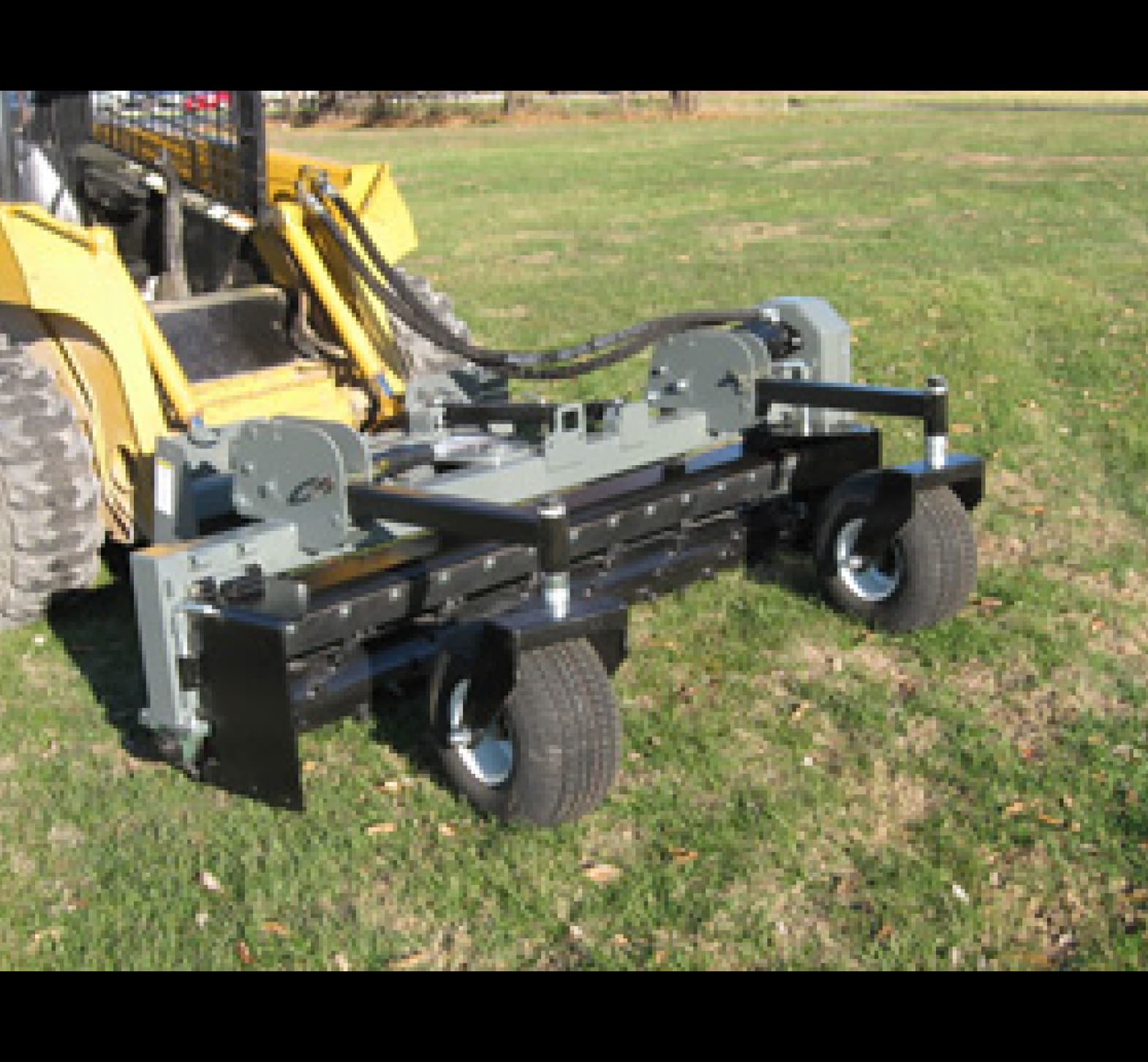

Consistently delivering high performance, the 65-series is designed for Skid Steers over 65 HP. Its rugged 4" x 4" x 1/4" frame supports dual flip-up gauge wheels (18.5 x 8.50-8) on 5-bolt hubs, flip-up side shields, adjustable material bars and operator friendly chain case.
A double #80 chain transfers the power to the rotor while chain tensioners of UMHW material provides the correct tension.
Product Features
- Flip-up side shields are self-storing on the unit allowing ease of windrowing rocks or debris.
- Flip-up gauge wheels (height adjustable) allows accurate control of working depth keeping machine level for smoother surface finish. Easily flip up out of the way for transport on a trailer.
- Replaceable bearing housings and triple seal bearings keep dirt out, providing more uptime.
- Choice of rotors - 2" Sabre tooth or 1-3/4" Carbide Tooth.
- Operator friendly chain case reduces maintenance as there is a minimal retained oil to contend with.
Specifications - 65-Series for Skid Steers over 65 HP
Description
PSHD-665
PSHD-765
PSHD-865
PSHD-665ST
PSHD-765ST
PSHD-865ST
Mount Type
Skid Steer
Skid Steer
Skid Steer
Skid Steer
Skid Steer
Skid Steer
Main Frame (in)
4 x 4 x 1/4
4 x 4 x 1/4
4 x 4 x 1/4
4 x 4 x 1/4
4 x 4 x 1/4
4 x 4 x 1/4
Overall Width (in/cm)
80 / 203
92 / 234
104 / 264
80 / 203
92 / 234
104 / 264
Working Width (in/cm)
72 / 183
84 / 214
96 / 244
72 / 183
84 / 214
96 / 244
Working Depth (in/cm)
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
Max. Angle
20° L/R
20° L/R
20° L/R
20° L/R
20° L/R
20° L/R
Hydraulic Angle
Optional
Optional
Optional
Optional
Optional
Optional
Drive System
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Rotor Drive
#80 Double Roller Chain
#80 Double Roller Chain
#80 Double Roller Chain
#80 Double Roller Chain
#80 Double Roller Chain
#80 Double Roller Chain
Chain Tensioner
Standard
Standard
Standard
Standard
Standard
Standard
Rotor Tooth
Carbide
Carbide
Carbide
2" Sabre
2" Sabre
2" Sabre
Gauge Wheel
Dual
Dual
Dual
Dual
Dual
Dual
Flip-Up Side Shields
Standard
Standard
Standard
Standard
Standard
Standard
Material Control Bar
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Weight (lbs/kg)
1060 / 481
1105 / 501
1145 / 519
1062 / 482
1107 / 502
1147 / 520
Product No.
360570
360575
360580
360585
360590
360595
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
