36-Series Snow Pusher
36-Series Snow Pusher
- Models designed for skid steers and tractors equipped with a loader, job matched for maximum performance.
- Adjustable & reversible 1.5” x 8” ultra rubber cutting edge.
- CNC formed 7-gauge moldboard, 5/16” end plates with 4-inch wide reversible skid shoes of abrasive resistant steel.
- Models for "universal" skid steer, John Deere 400/500 and Euro/Global quick attach.
- Optional Pull-Back kit available for all models features 1.5' x 8" ultra rubber cutting edge.
- Blank back models allow optional interfacing quick attach brackets to be welded on.
- Clamp-on models are engineered to quickly connect to a wide choice of loader buckets.
See the 36-Series Snow Pusher In Action

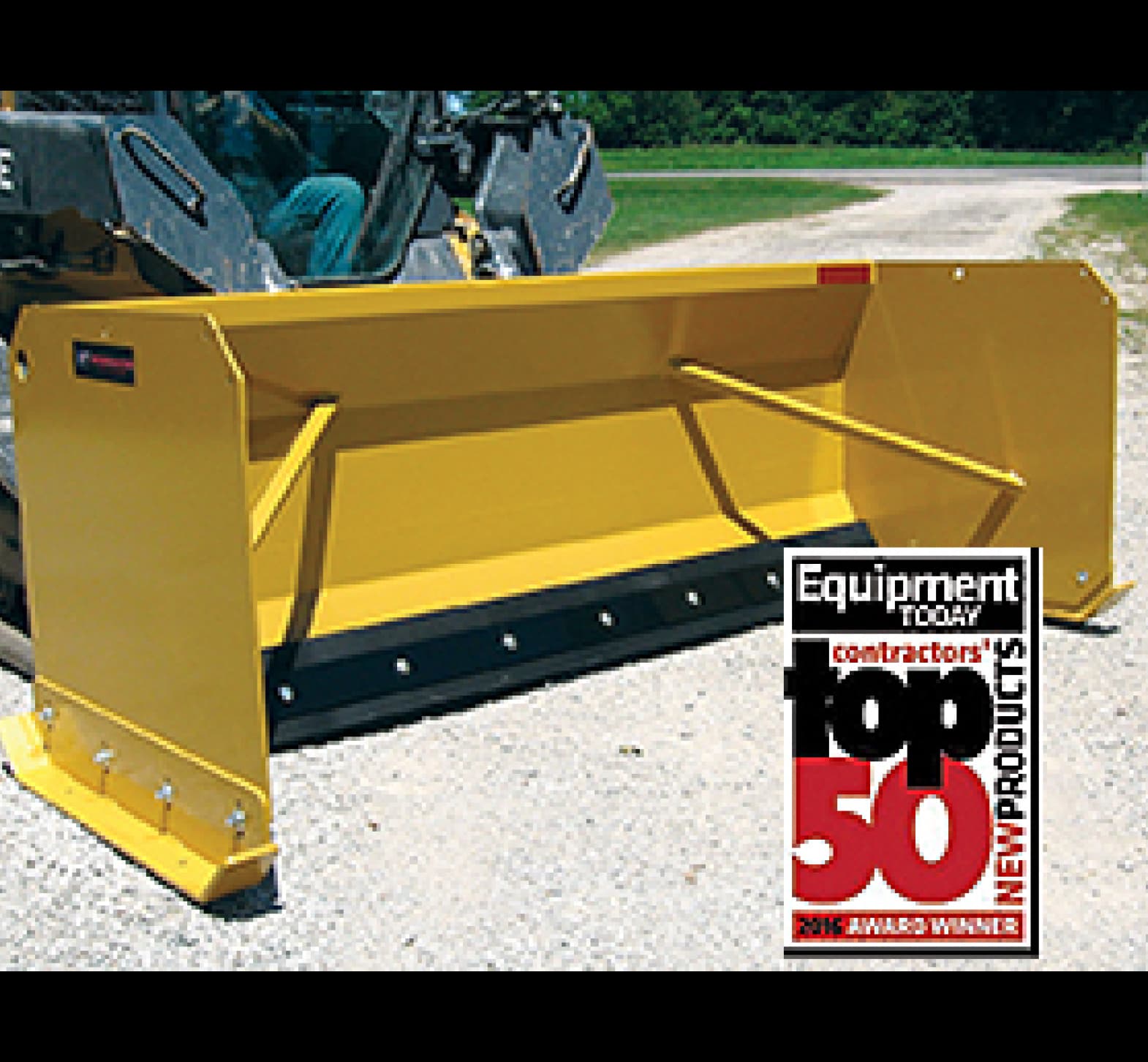

36-Series Snow Pusher
Shown with with optional pull-pack kit.
Clamp-on Bucket Mount 36-Series Snow Pusher
Shown with with optional pull-pack kit.
36-Series "Universal" Snow Pusher Specifications
For Tractors up to 50 HP, Max. “Universal” Skid Steer Attach
Description
SPS-3696R
SPG-3696R
SPS-36120R
SPG-36120R
SPC-3696R
SPC-3696R
SPB-3696R
SPB-36120R
Overall Width (in/cm)
104.5 / 265
104.5 / 265
128.5 / 326
128.5 / 326
104.5 / 265
128.5 / 326
104.5 / 265
128.5 / 326
Overall Height (in/cm)
37.37 / 95
37.37 / 95
37.37 / 95
37.37 / 95
37.37 / 95
37.37 / 95
37.37 / 95
37.37 / 95
Overall Depth (in/cm)
37.75 / 96
37.75 / 96
37.75 / 96
37.75 / 96
37.75 / 96
37.75 / 96
37.75 / 96
37.75 / 96
Moldboard Thickness
7-gauge
7-gauge
7-gauge
7-gauge
7-gauge
7-gauge
7-gauge
7-gauge
End Plate Thickness (in/cm)
5/16/0.795
5/16/0.795
5/16/0.795
5/16/0.795
5/16/0.795
5/16/0.795
5/16/0.795
5/16/0.795
Reinforced Endplates
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Rubber Cutting Edge
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Adjustable/Reversible Skid Shoes
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Horsepower Rating
50-90 HP
50-90 HP
50-125 HP
50-125 HP
50-90 HP
50-125 HP
50-90 HP
50-125 HP
Weight (lbs/kg)
815 / 370
810 / 367
905 / 410
900 / 408
845 / 383
935 / 424
775 / 351
865 / 392
Mounting
Skid Steer
Euro/Global
Skid Steer
Euro/Global
Bucket/ Chain-on
Bucket/ Chain-on
Mgt. Brt. Available*
Mgt. Brt. Available*
Product No.
358060
358080
358090
358110
358140
358150
358130
358135
OptionalPull-Back Kit
358120
358120
358125
358125
358120
358125
358120
358125
36-Series John Deere Snow Pusher Specifications
Description
SPJD-3696R
SPJD-36120R
Overall Width (in/cm)
104.5 / 265
128.5 / 326
Overall Height (in/cm)
37.37 / 95
37.37 / 95
Overall Depth (in/cm)
37.75 / 96
37.75 / 96
Moldboard Thickness
7-gauge
7-gauge
End Plate Thickness (in/cm)
5/16/0.795
5/16/0.795
Reinforced Endplates
Yes
Yes
Rubber Cutting Edge
Yes
Yes
Adjustable/Reversible Skid Shoes
Standard
Standard
Horsepower Rating
50-90 HP
50-125 HP
Weight (lbs/kg)
780 / 354
870 / 395
Mounting
JD 400/500
JD 400/500
Product No.
358070
358100
OptionalPull-Back Kit
358120
358125
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
