27-Series Snow Blade 7-1/2’ and 9’ Widths

Designed for skid steers and tractor front loaders, heavy-duty snow blades remove snow easily from driveways, parking lots or other large areas. Available in 7-1/2 or 9 foot widths, with 5 degree lateral oscillation allowing these blades to easily follow the ground contour.

Download the Brochure

Product Features

Ideal for residential or commercial snow removal. Use on driveways, parking lots, or other large areas.
7.5-ft. & 9-ft. models feature 5° lateral oscillation to allow blade to follow ground contours.
Two trip springs for controlled break over in snow.
Reinforced 27" high 10-gauge moldboards provide long service life.
3/8" x 6" cutting edge of 1044 steel.
Blade locks for light grading of loose dirt or gravel.
Step-through design allows for easy access to skid steer seat.
Quick hook up on skid steers or front loaders equipped with "Universal" mounting plate.
Blade angles right or left.
Adjustable skid shoes of AR steel are ½” thick and rotate for long life.
Select models integrate either the Euro/Global or John Deere 400/500 series mounting for easier hook up.
SBFL models can be paired with optional brackets for most tractor loaders.

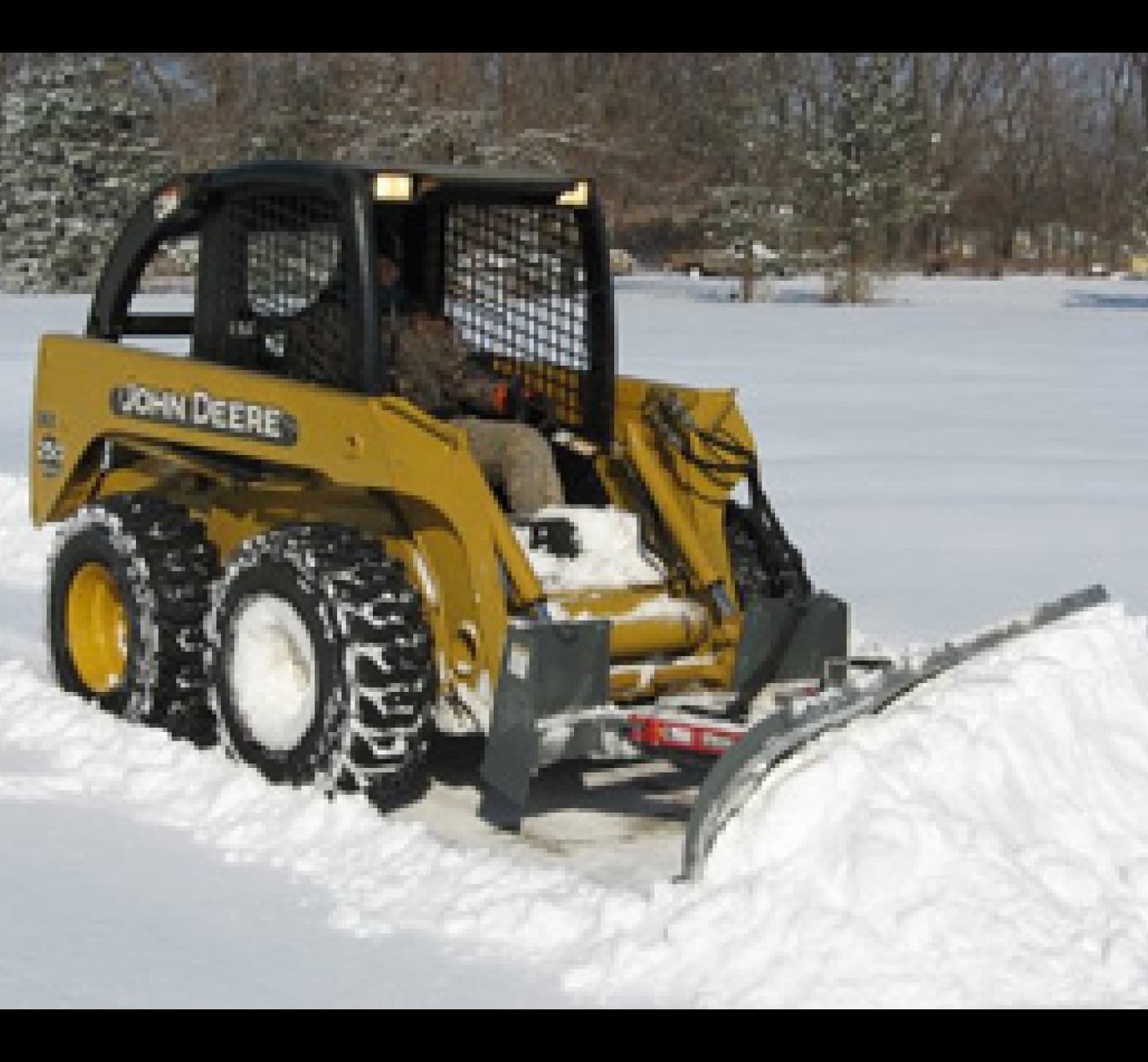

See Worksaver Snow Blades in Action

27-Series Snow Blade 7-1/2’ and 9’ Specifications

Description

SBFL-27108A

SBS-27108A

SBG-27108A

SBJD-27108A

SBFL-2790A

SBS-2790A

SBG-2790A

SBJD-2790A

Overall Width (in/cm)

108 / 274

90 / 229

Overall Height (in/cm)

27 / 69

Moldboard Thickness

10-gauge

Cutting Edge (in/mm)

3/8" x 6" / 9.525 x 152.4

Standard

5° Lateral Oscillation

Standard

Extension Trip Springs

Manual Angle Positions

Width @ Full Angle

96 / 244

80 / 203

Tractor Loader Mount

*Brackets Req.

Euro / Global

400 / 500 JD

*Brackets Req.

Euro / Global

400 / 500 JD

Skid Steer Mount

Universal

Adjustable Skid Shoes

Standard

Horse Power Rating

50-95 HP

40-80 HP

Weight (lb/kg)

748 / 339

735 / 333

717 / 325

765 / 347

660 / 299

646 / 293

630 / 286

675 / 306

Hydraulic Angle Kit

Standard

Optional

Crossover Rel. Valve

Standard

Optional

Optional Top Deflector

360230

360227

Opt. Sight Indicator

360235

Snow Blade Item No.

360075

360070

360078

360275

360085

360080

360090

360270

For Skid Steer and Tractors w/ Loader 40 – 95 HP, Max.

*Optional Interfacing Quick Attach brackets available for most popular loaders.

27-Series Snow Blade 7-1/2’ and 9’ Manual and Parts List

Download the Manual

View SBFL-27108A & SBFL-2790A Parts List

View SBS-27108A & SBS-2790A Parts List

View SBG-27108A & SBG-2790A Parts List

View SBJD-27108A & SBJD-2790A Parts List

Optional Interfacing Quick Attach Brackets Parts Lists

View Optional Hydraulic Angle Kit #360170 Parts List

View Optional Hydraulic Angle Kit #360165 Parts List

View Optional Hydraulic Angle Kit #360168 Parts List

View Crossover Relief Valve Kit #360165 Parts List

View Crossover Relief Valve Kit #360168 Parts List

View Optional Marker Kit Part List

NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
