25 Series Powered Landscape Rakes
25 Series Powered Landscape Rakes

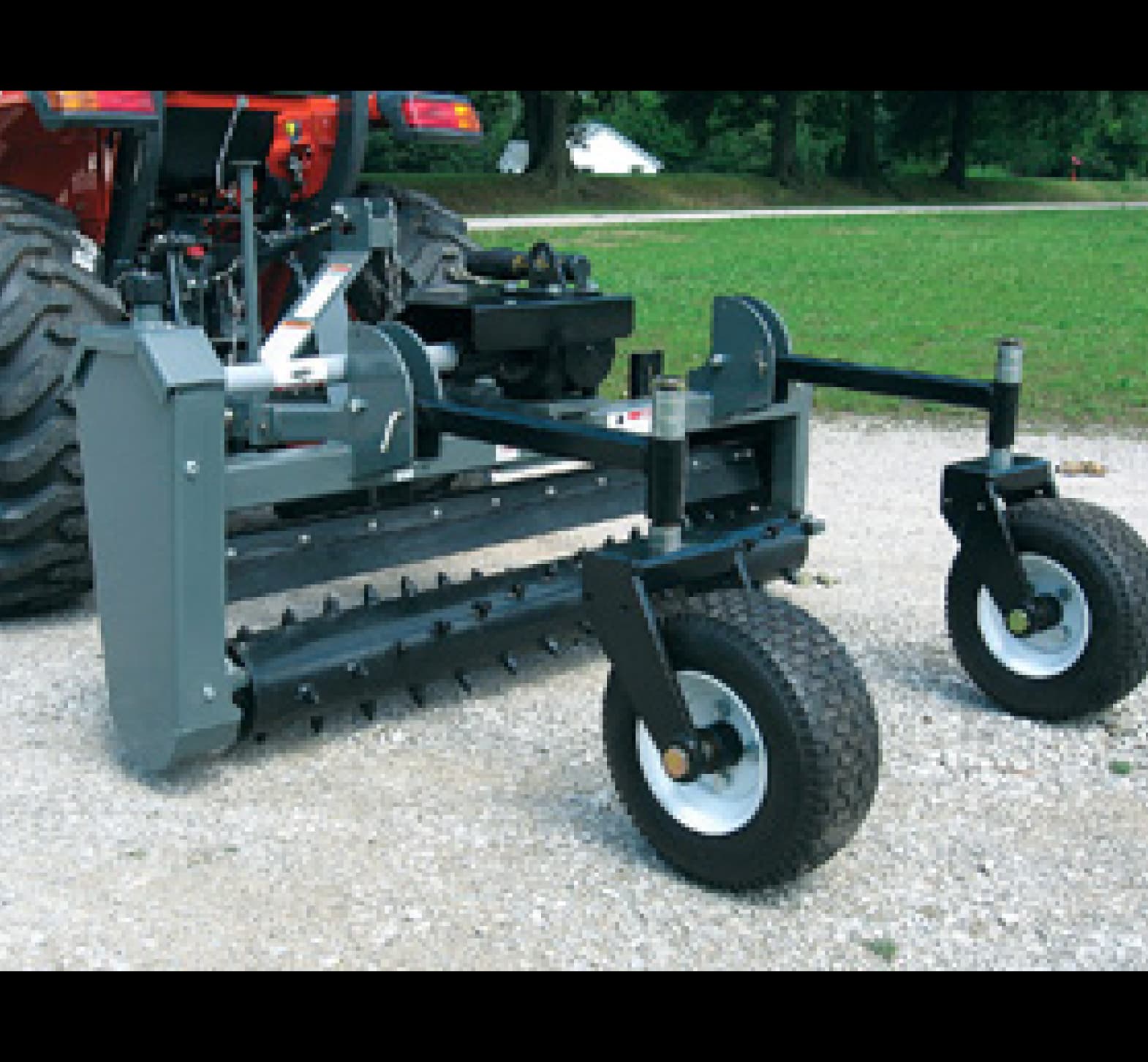

Get more done with a compact tractor when using one of our 25-Series Power Rakes designed for tractors of 24-40 HP.
Standard equipment includes a #80 drive chain for dependable power transfer, PTO with slip clutch, dual flip-up gauge wheels, flip-up side shields for easy storage on the machine and adjustable material bar for controlling processed material flow.
Product Features
- Flip-up side shields are self-storing on the unit allowing ease of windrowing rocks or debris.
- Flip-up gauge wheels (height adjustable) allows accurate control of working depth keeping machine level for smoother surface finish. Easily flip up out of the way for transport on a trailer.
- Replaceable bearing housings and triple seal bearings keep dirt out, providing more uptime.
- Choice of rotors - 2" Sabre tooth or 1-3/4" Carbide Tooth.
- Operator friendly chain case reduces maintenance as there is a minimal retained oil to contend with.
Specifications - 25-Series for Tractors 24-40 HP
Description
PTC-525
PTC-625
PTC-725
PTC-525ST
PTC-625ST
PTC-725ST
Mount Type
3-pt Cat.I
3-pt Cat.I
3-pt Cat.I
3-pt Cat.I
3-pt Cat.I
3-pt Cat.I
Main Frame (in)
3 x 3 x 3/16
3 x 3 x 3/16
3 x 3 x 3/16
3 x 3 x 3/16
3 x 3 x 3/16
3 x 3 x 3/16
Overall Width (in/cm)
68 / 173
80 / 203
92 / 234
68 / 173
80 / 203
92 / 234
Working Width (in/cm)
60 / 152
72 / 183
84 / 214
60 / 152
72 / 183
84 / 214
Working Depth (in/cm)
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
Max. Angle
20° L/R
20° L/R
20° L/R
20° L/R
20° L/R
20° L/R
Hydraulic Angle
Optional
Optional
Optional
Optional
Optional
Optional
Drive System
PTO
PTO
PTO
PTO
PTO
PTO
Rotor Drive
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
Chain Tensioner
Standard
Standard
Standard
Standard
Standard
Standard
Rotor Tooth
Carbide
Carbide
Carbide
2" Sabre
2" Sabre
2" Sabre
Gauge Wheel
Dual
Dual
Dual
Dual
Dual
Dual
Flip-Up Side Shields
Standard
Standard
Standard
Standard
Standard
Standard
Material Control Bar
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Weight (lbs/kg)
755 / 343
790 / 358
825 / 374
757 / 343
792 / 359
827 / 375
Product No.
360800
360805
360810
360815
360820
360825
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
