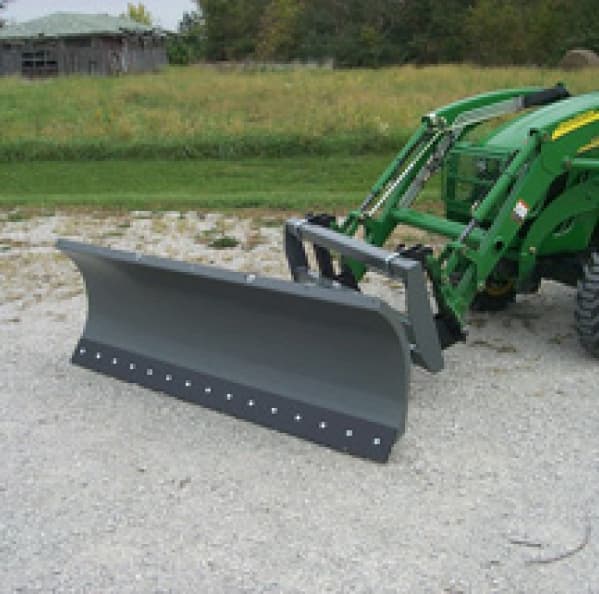

21-Series Snow Blade 5’ and 6’ Specifications

Available in 5-ft and 6-ft widths, performance matched to small skid steers and tractors with loaders from 25-45 hp. Reinforced 21” high moldboard of 10-gauge material for long service life. Blades angle right and left and are equipped with adjustable skid shoes of AR-400 steel for long life.

Download the Brochure

Product Features

Ideal for residential or commercial snow removal. Use on driveways, parking lots, or other large areas.
Available in 5-ft. & 6-ft. models.
Two trip springs for controlled break over in snow.
Reinforced 21" high 10-gauge moldboards provide long service life.
3/8" x 6" cutting edge of 1044 steel.
Blade locks for light grading of loose dirt or gravel.
Step-through design allows for easy access to skid steer seat.
Quick hook up on skid steers or front loaders equipped with "Universal" mounting plate.
Blade angles right or left.
Adjustable skid shoes of AR steel are ½” thick and rotate for long life.
Select models integrate either the skid steer or John Deere 200/300/400 series mounting for easier hook up.
Two bucket clamp-on models for compact tractors.
SBFL models can be paired with optional brackets for most tractor loaders.

See Worksaver Snow Blades in Action

21-Series Snow Blade 5’ and 6’ Specifications

Description

SBFL-2172

SBS-2172

SBC-2172

SBJD-2172

SBFL-2160

SBS-2160

SBC-2160

SBJD-2160

Overall width (in/cm)

72 / 183

60 / 152

Overall height (in/cm)

21 / 53

Moldboard Thickness

10-gauge

Cutting edge (in/mm)

3/8" x 6" / 9.525 x 152.4

Standard

Extension trip springs

Manual angle positions

Width @ Full angle

62 / 157

52 / 132

Tractor Loader Mount

*Brackets Req.

N/A

Clamp-On

200 / 400 JD

*Brackets Req.

N/A

Clamp-On

200 / 400 JD

Skid Steer Mount

N/A

Universal

N/A

Universal

N/A

Adjustable Skid Shoes

Standard

Horse Power Rating

<45 HP

<35 HP

<45 HP

<35 HP

<45 HP

Weight (lb/kg)

360 / 163

353 / 160

335 / 152

373 / 169

335 / 152

325 / 147

305 / 138

345 / 156

Hydraulic Angle Kit

Optional

Skid Steer Angle Hydraulic Kit

N/A

Optional

N/A

Crossover Rel. Valve

Optional

Optional Top Deflector

360223

360220

360223

Opt. Sight Indicator

360235

Product Number

360160

360130

360290

360255

360140

360100

360280

360250

For Skid Steer and Tractors w/ Loader 25 -45 HP, Max. Clamp-on Models for Tractors up to 35 HP, Max.

Be Sure tractor / skid steer is properly counterbalanced.

*Optional Interfacing Quick Attach brackets available for most popular models.

21-Series Snow Blade 5’ and 6’ Manual and Parts List

Download the Manual

View SBFL-2160 & SBFL-2172 Parts List

View SBS-2160 & SBS-2172 Parts List

View SBC-2160 & SBC-2172 Parts List

View SBJD-2160 & SBJD-2172 Parts List

Optional Interfacing Quick Attach Brackets Parts Lists

View Optional Hydraulic Angle Kit #360170 Parts List

View Optional Hydraulic Angle Kit #360165 Parts List

View Optional Hydraulic Angle Kit #360168 Parts List

View Crossover Relief Valve Kit #360165 Parts List

View Crossover Relief Valve Kit #360168 Parts List

View Option al Marker Kit Part List

NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
