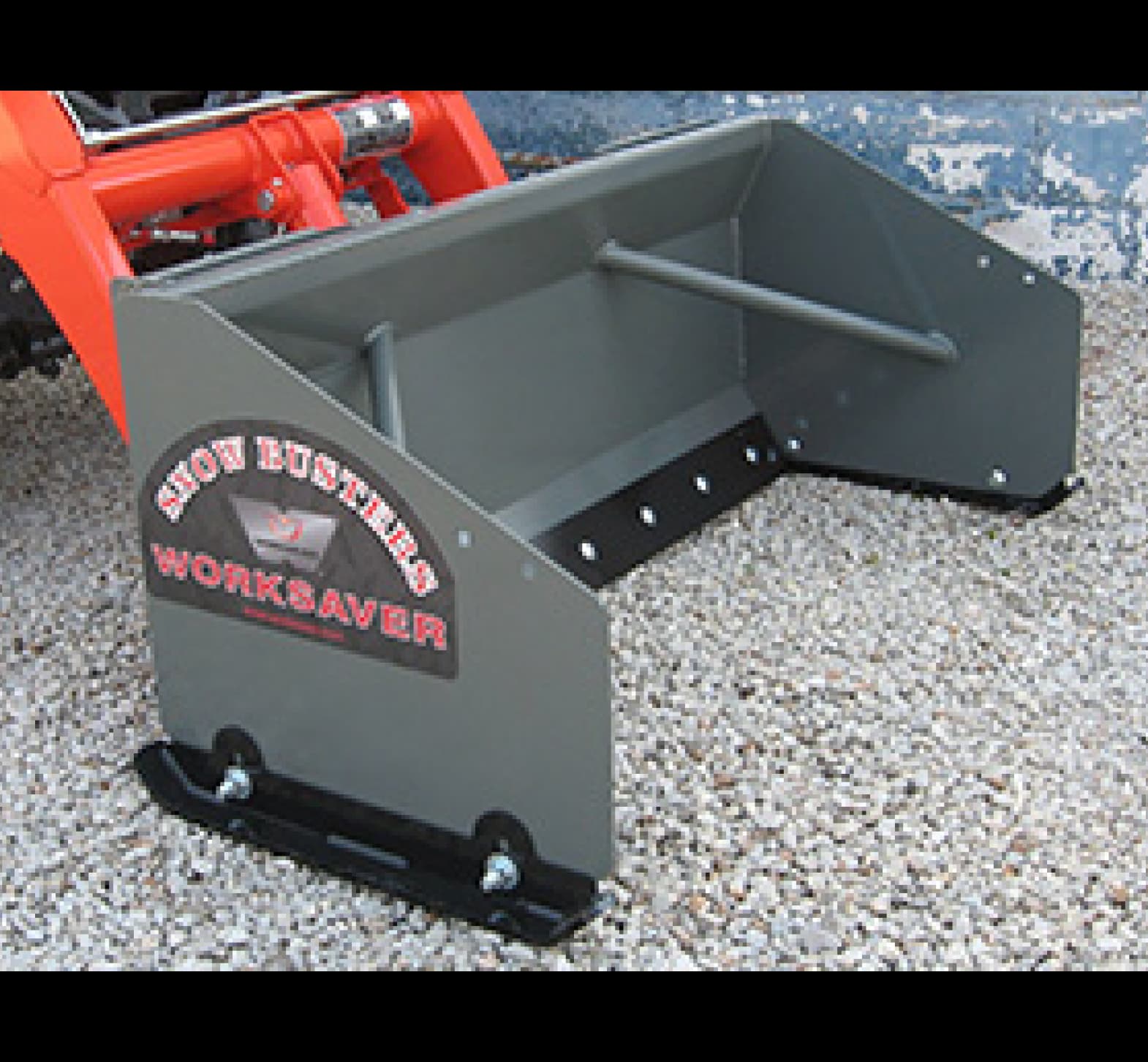

20-Series Snow Pusher
20-Series Snow Pusher
- Models designed for Sub-Compact tractors up to 32 HP.
- Adjustable skid shoes of AR-400 material.
- End plates with gentle slope design.
- Models are available to fit “Universal” skid steer attaching system and John Deere hook & pin quick attach.
- Optional Pull-Back kit available for all models.
- Available in widths of 4' or 5' with either a ultra rubber edge or alloy steel cutting edge.
- CNC formed 11-gauge moldboard with formed 10-gauge back brace for strength and durability.
20-Series Snow Pusher

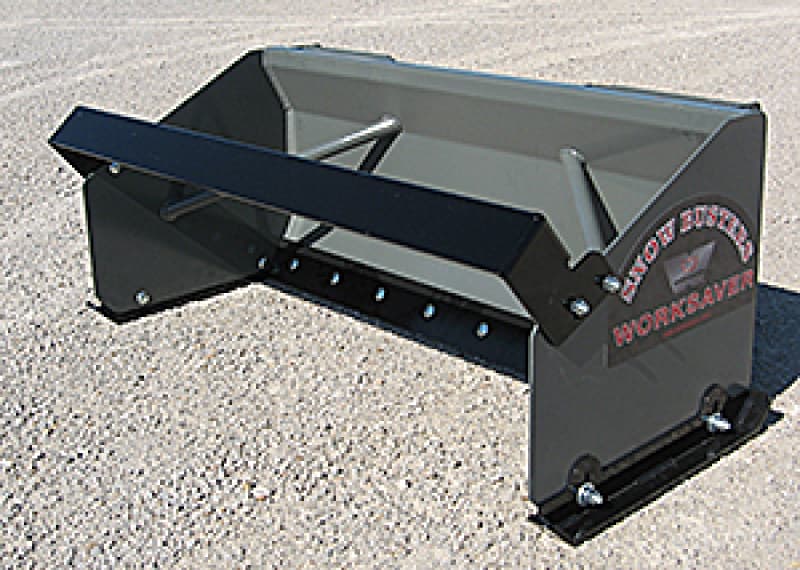

Show with an optional metal pull-back kit.
20-Series "Universal" Snow Pusher Specifications
For Sub-Compact Tractors up to 32 HP, Max. “Universal” Skid Steer Attach
Description
SPS-2048R
SPS-2048M
SPS-2060R
SPS-2060M
Overall Width (in/cm)
52 / 132
52 / 132
64 / 163
64 / 163
Overall Height (in/cm)
21.5 / 55
21.5 / 55
21.5 / 55
21.5 / 55
Overall Depth (in/cm)
21 / 53
21 / 53
21 / 53
21 / 53
Moldboard Thickness
11-gauge
11-gauge
11-gauge
11-gauge
End Plate Thickness
7-gauge
7-gauge
7-gauge
7-gauge
Inside Angle Bracing
Yes
Yes
Yes
Yes
Rubber Cutting Edge
Yes (1" x 4")
No
Yes (1" x 4")
No
Alloy Steel Cutting Edge
No
Yes (3/8" x 4")
No
Yes (3/8" x 4")
Skid Shoes of AR-400
Yes
Yes
Yes
Yes
Horsepower Rating
Up to 32 HP
Up to 32 HP
Up to 32 HP
Up to 32 HP
Operating Weight of Power Unit
1,800 lbs. Max.
1,800 lbs. Max.
1,800 lbs. Max.
1,800 lbs. Max.
Weight (lbs/kg)
146 / 66
163 / 74
159 / 72
180 / 82
Product No.
358160
358165
358170
358175
Optional Rubber Edged Pull-Back Kit
358200
358200
358205
358205
Optional Metal Edged Pull-Back Kit
358230
358230
358235
358235
Optional Poly Skid Shoes
358240
358240
358240
358240
20-Series John Deere Snow Pusher Specifications
For John Deere Sub-Compact Tractors up to 32 HP, Max. John Deere Hook & Pin Quick Attach for 200/300, D120, H120, H130
Description
SPJD-2048R
SPJD-2048M
SPJD-2060R
SPJD-2060M
Overall Width (in/cm)
52 / 132
52 / 132
64 / 163
64 / 163
Overall Height (in/cm)
21.5 / 55
21.5 / 55
21.5 / 55
21.5 / 55
Overall Depth (in/cm)
21 / 53
21 / 53
21 / 53
21 / 53
Moldboard Thickness
11-gauge
11-gauge
11-gauge
11-gauge
End Plate Thickness
7-gauge
7-gauge
7-gauge
7-gauge
Inside Angle Bracing
Yes
Yes
Yes
Yes
Rubber Cutting Edge
Yes (1" x 4")
No
Yes (1" x 4")
No
Alloy Steel Cutting Edge
No
Yes (3/8" x 4")
No
Yes (3/8" x 4")
Skid Shoes of AR-400
Yes
Yes
Yes
Yes
Horsepower Rating
Up to 32 HP
Up to 32 HP
Up to 32 HP
Up to 32 HP
Operating Weight of Power Unit
1,800 lbs. Max.
1,800 lbs. Max.
1,800 lbs. Max.
1,800 lbs. Max.
Weight (lbs/kg)
131 / 59
148 / 67
145 / 66
166 / 75
Product No.
358180
358185
358190
358195
Optional Rubber Edged Pull-Back Kit
358200
358200
358205
358205
Optional Metal Edged Pull-Back Kit
358230
358230
358235
358235
Optional Poly Skid Shoes
358240
358240
358240
358240
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
