20 Series Powered Landscape Rakes
20 Series Powered Landscape Rakes

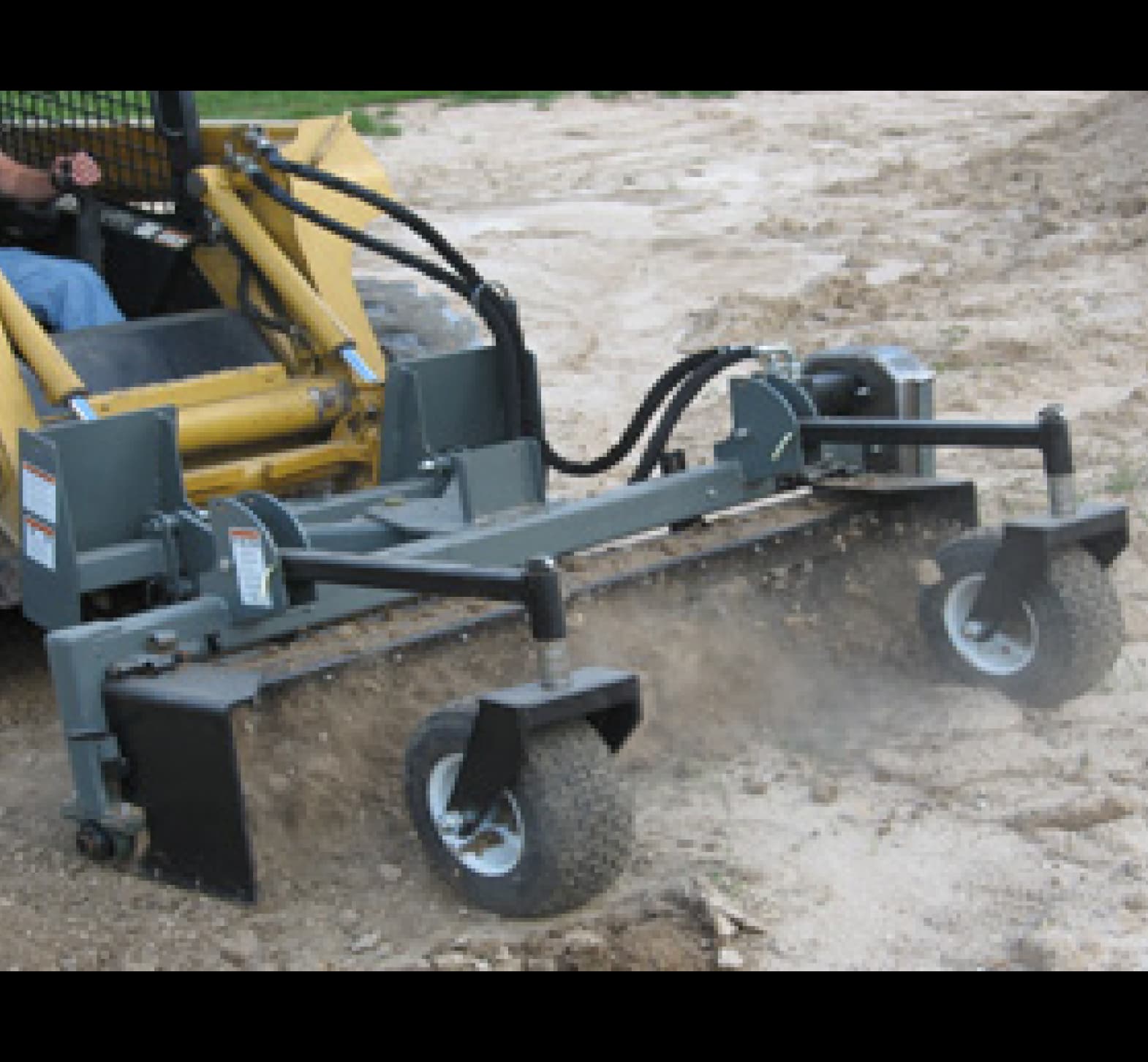

Responsive and reliable, the 20-Series is designed for Skid Steers up to 65 HP. Features a #80 chain drive, dual flip-up gauge wheels, flip-up side shields and an all-welded frame constructed of 3" x 4" x 1/4" tubing.
Also standard are reliable gauge wheels (16 x 6.50-8) mounted to 4-bolt hubs and a "Flex & Float" System offering the operator flexibility to choose maximum down pressure or float position for site prep.
Product Features
- Flip-up side shields are self-storing on the unit allowing ease of windrowing rocks or debris.
- Flip-up gauge wheels (height adjustable) allows accurate control of working depth keeping machine level for smoother surface finish. Easily flip up out of the way for transport on a trailer.
- Replaceable bearing housings and triple seal bearings keep dirt out, providing more uptime.
- Choice of rotors - 2" Sabre tooth or 1-3/4" Carbide Tooth.
- Operator friendly chain case reduces maintenance as there is a minimal retained oil to contend with.
Specifications - 20-Series for Skid Steers under 65 HP
Description
PSS-620
PSS-720
PSS-620ST
PSS-720ST
Mount Type
Skid Steer
Skid Steer
Skid Steer
Skid Steer
Main Frame (in)
3 x 4 x 1/4
3 x 4 x 1/4
3 x 4 x 1/4
3 x 4 x 1/4
Overall Width (in/cm)
80 / 203
92 / 234
80 / 203
92 / 234
Working Width (in/cm)
72 / 183
84 / 214
72 / 183
84 / 214
Working Depth (in/cm)
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
Max. Angle
20° L/R
20° L/R
20° L/R
20° L/R
Hydraulic Angle
Optional
Optional
Optional
Optional
Drive System
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Rotor Drive
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
Chain Tensioner
Standard
Standard
Standard
Standard
Rotor Tooth
Carbide
Carbide
2" Sabre
2" Sabre
Gauge Wheel
Dual
Dual
Dual
Dual
Flip-Up Side Shields
Standard
Standard
Standard
Standard
Material Control Bar
Adjustable
Adjustable
Adjustable
Adjustable
Weight (lbs/kg)
830
866
832
868
Product No.
360850
360855
360860
360865
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
