10 Series Powered Landscape Rakes
10 Series Powered Landscape Rakes

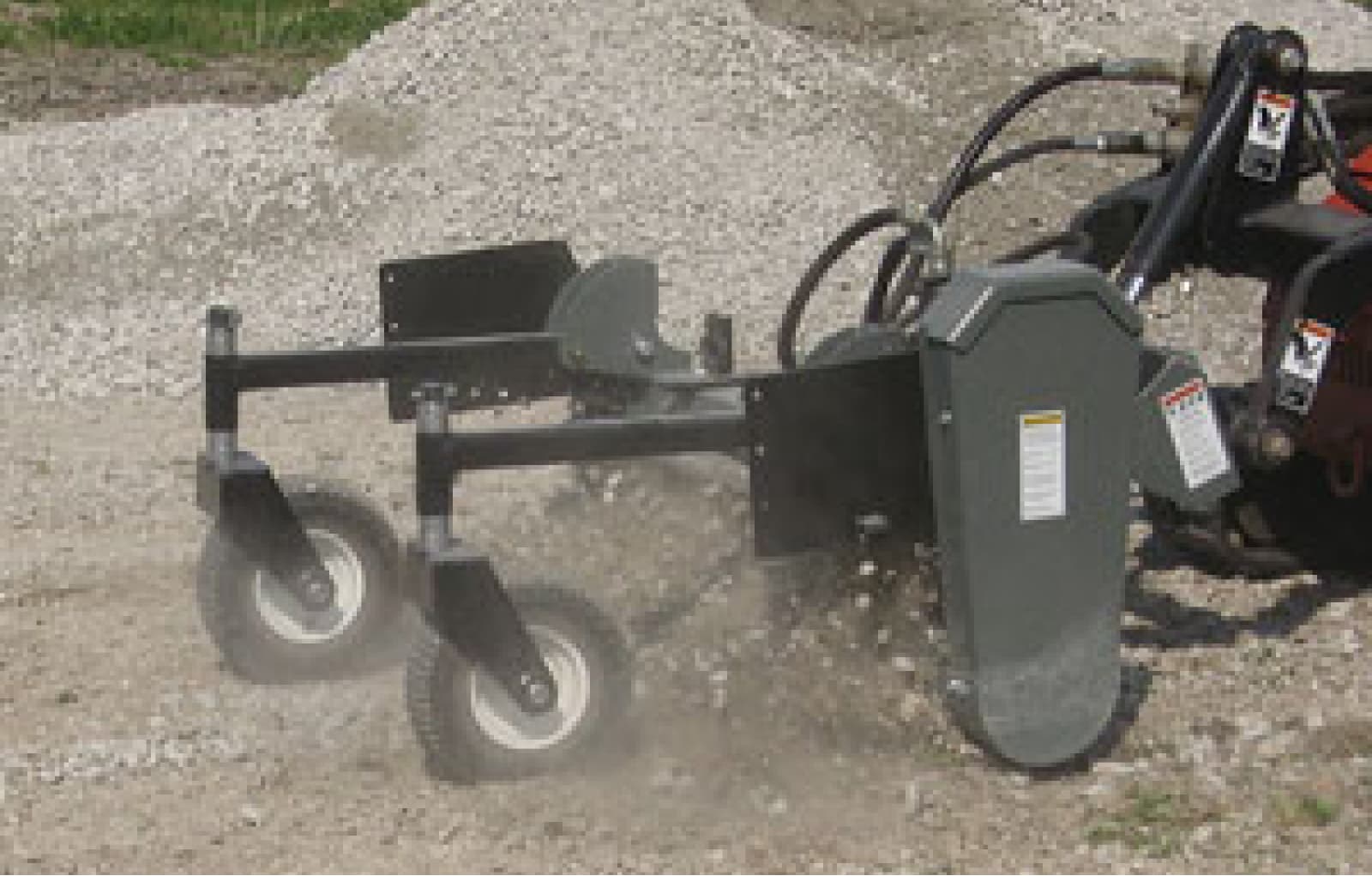

Elevating productivity, the 10-Series Power Rakes for Mini / Compact Skid Steers features a #80 chain drive, flip-up side shields, dual gauge wheels, adjustable material bar and optional hydraulic angle.
As with all Power Rakes, bearing protectors and operator friendly chain case are standard equipment.
Product Features
- Flip-up side shields are self-storing on the unit allowing ease of windrowing rocks or debris.
- Flip-up gauge wheels (height adjustable) allows accurate control of working depth keeping machine level for smoother surface finish. Easily flip up out of the way for transport on a trailer.
- Replaceable bearing housings and triple seal bearings keep dirt out, providing more uptime.
- Choice of rotors - 2" Sabre tooth or 1-3/4" Carbide Tooth.
- Operator friendly chain case reduces maintenance as there is a minimal retained oil to contend with.
Specifications - 10-Series for Mini Skid Steers with Universal Mount
Description
PXS-410
PXS-510
PXS-610
PXS-410ST
PXS-510ST
PXS-610ST
Mount Type
Mini-SS
Mini-SS
Mini-SS
Mini-SS
Mini-SS
Mini-SS
Main Frame (in)
3 x 3 x 3/16
3 x 3 x 3/16
3 x 3 x 3/16
3 x 3 x 3/16
3 x 3 x 3/16
3 x 3 x 3/16
Overall Width (in/cm)
56 / 142
68 / 173
80 / 203
56 / 142
68 / 173
80 / 203
Working Width (in/cm)
48 / 122
60 / 152
72 / 183
48 / 122
60 / 152
72 / 183
Working Depth (in/cm)
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
0-3.0 / 0-8
Max. Angle
20° L/R
20° L/R
20° L/R
20° L/R
20° L/R
20° L/R
Hydraulic Angle
Optional
Optional
Optional
Optional
Optional
Optional
Drive System
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Rotor Drive
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
#80 Roller Chain
Chain Tensioner
Standard
Standard
Standard
Standard
Standard
Standard
Rotor Tooth
Carbide
Carbide
Carbide
2" Sabre
2" Sabre
2" Sabre
Gauge Wheel
Dual
Dual
Dual
Dual
Dual
Dual
Flip-Up Side Shields
Standard
Standard
Standard
Standard
Standard
Standard
Material Control Bar
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Weight (lbs/kg)
524 / 238
560 / 254
596 / 270
526 / 239
562 / 255
598 / 271
Product No.
360600
360605
360610
360615
360620
360625
* Mounts for Bobcat MT & Gehl available
NOTICE: Worksaver Inc. has a corporate policy of continuous product improvement and development: Therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this site and the actual equipment.
