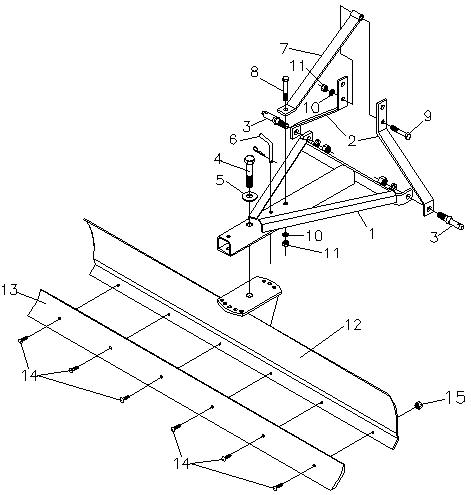

Rear Blades MCRB 72 Parts List
Rear Blades MCRB 72 Parts List
Ref. #
Part #
Description
# Req.
346775
MCRB-72 Assembly
1
1
345140
3 Pt. Mount Weldment
1
2
345147
Toplink Side Bar
2
3
590108
AK-578 Draw Pin
2
4
2503028
Bolt, Hex 1"-8NC x 5" Gr.2
1
5
2501001
Washer, 1" Medium Flat
1
6
343185
Pin, Shift (1-1/2" x 4") w/Clip
1
7
345145
Weldment, Toplink Brace
1
8
2503066
Bolt, Hex 5/8"-11NC x 4.00" G2
1
9
2503049
Bolt, 5/8"-11NC x 3.50" G2" Hex Head
1
10
2502007
Washer, 5/8" Spring Lock
2
11
2500013
Nut, Hex 5/8"-11NC
2
346706
Moldboard Assembly (Items 12 thru 16)
1
12
346710
Moldboard Weldment
1
13
350405
Cutting Edge, 1/2" x 6" x 71.5"
1
14
2503045
Bolt, Plow 5/8"-11NC x 1.50" G5
6
15
2500094
Nut, 5/8"-11NC Hex Toplock G5
6
NS
101033
Safety Sign - Caution (Blades)
1
NS
101263
Safety Sign - Notice (35 H.P. Rating)
1
