Worksaver

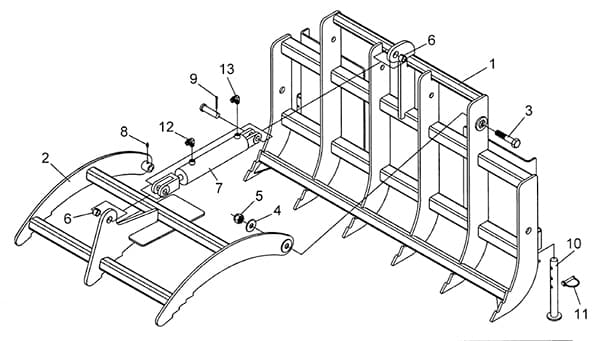

Sub-Compact Tractor Mini Tine Grapple SCG-48S Diagram and Parts List

Ref #

Part #

Description

# Req'd

1

811691

Main Frame Weldment SCG-48S

1

2

811680

SCG Clamp Weldment

1

3

2503308

Bolt 3/4"-10NC x 3-1/2" Hex Head Gr. 5

2

4

2501032

Washer 3/4" SAE Flat

2

5

2500037

Nut 3/4"-10NC Hex Nylock

2

6

803185

Spring Bushing 1" x 3/4" x 5/8"

2

7

2505822

Hydraulic Cylinder 1-1/2" x 8

1

8

2504049

Grease Zerk 5/16" Drive

2

9

2504015

Cotter Pin 1/8" x 1-1/2"

2

10

811686

Stand Weldment

2

11

590194

Lock Pin 5/16" (AK-2907)

2

12

2505712

90° Adjustable Elbow 9/16" to 9/16"

1

13

2505831

90° Adjustable Elbow 9/16" to 9/16" w/Orifice

1

N/S

101122

Safety Sign, Warning (Hi-Pressure)

1

N/S

101297

Safety Sign, Warning (Crush/Pinch)

1

N/S

101129

Safety Sign, Warning (Injury)

1

N/S

101295

Safety Sign, Warning (Crushing Hazard)

1

N/S

101221SM

Safety Sign, Warning

1

N/S

101204SM

Safety Sign, Warning

1

N/S

101313

Safety Sign, Warning

1
