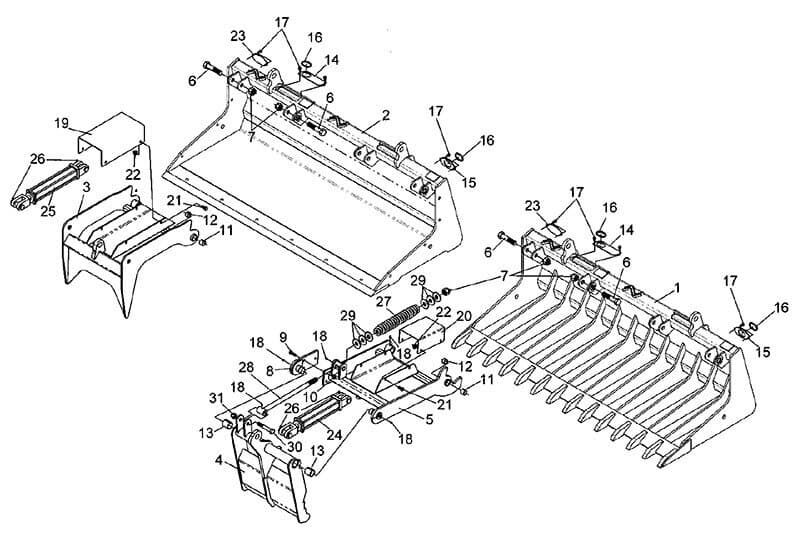

SATG Sweep Action Tine Grapple Diagram and Parts List

1

812588

Main Frame Weldment (LPTG-72A/SATG-72)

1

812589

Main Frame Weldment (LPTG-78A/SATG-78)

1

812590

Main Frame Weldment (LPTG-84A/SATG-84)

1

2

812591

Main Frame Weldment (LPSB-72A/SASB-72)

1

812592

Main Frame Weldment (LPSB-78A/SASB-78)

1

812593

Main Frame Weldment (LPSB-84A/SASB-84)

1

3

812561

Clamp Weldment (LP Models)

2

4

812532

Rake Weldment (SA Models)

2

5

812541

Rear Clamp Weldment (SA Models)

2

6

2503310

Bolt 1"-8NC x 5" Hex Head Gr. 5

4

7

2500045

Nut 1"-8NC Hex Nylock

Var.

8

812526

Bolted Stub End Weldment (SA Models)

2

9

2503145

Bolt 1/2"-13NC x 1-1/2" Hex Head Gr. 5 (SA Models)

6

10

2500054

Nut 1/2"-13NC Hex Stamplock (SA Models)

6

11

2505035

Spring Bushing (1-1/4" x 1" x 1")

8

12

2505034

Spring Bushing (1-1/4" x 1" x 5/8")

4

13

2505049

Spring Bushing (1-3/4" x 1-1/2" x 1-3/4") (SA Models)

4

14

811789

Plate, Long Grommet Cover

2

15

811785

Plate, Short Grommet Cover

1

16

2505790

Grommet

3

17

2503356

Screw, Thread Cutting 5/16"-18NC x 3/4" Slotted Hex Head

8

18

2504049

Grease Zerk 5/16" Drive

Var.

19

811788

Cover, Cylinder Channel (LP Models)

1

20

812531

Cover, Cylinder Channel (SA Models)

1

21

2503062

Bolt 1/2"-13NC x 1" Hex Head Gr. 2

8

22

2500040

Nut 1/2"-13NC Whiz Flange Hex

8

23

811797

Blank Cover Plate

1

24

2505690

Cylinder, Hydraulic 2 x 10 (SA Models)

1

25

2504230

Cylinder, Hydraulic 2 x 8 (LP Models)

1

26

2504121

Cotter Pin 3/16" x 1-1/2"

4

27

812161

Spring (SA Models)

2

28

812154

Spring Shaft Weldment (SA Models)

2

29

2501014

Flat Washer 1", Medium SAE (SA Models)

12

30

2503254

Bolt 3/4"-10NC x 4-1/2" Hex Head Gr. 5 (SA Models)

2

31

2500037

Nut 3/4"-10NC Hex Nylock (SA Models)

2
