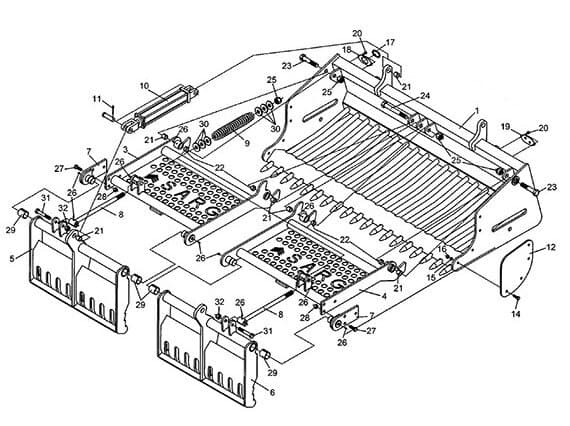

SARG 72/84 Sweep Action Rock Grapple Diagram and Parts List
SARG 72/84 Sweep Action Rock Grapple Diagram and Parts List
Ref #
Part #
Description
# Req'd
1
812121
Main Frame (SARG-72)
1
812163
Main Frame (SARG-84)
1
3
812132
RH Rear Clamp Weldment (SARG-72)
1
812168
RH Rear Clamp Weldment (SARG-84)
1
4
812141
LH Rear Clamp Weldment (SARG-72)
1
812171
LH Rear Clamp Weldment (SARG-84)
1
5
812142
RH Rake Weldment (SARG-72)
1
812172
RH Rake Weldment (SARG-84)
1
6
812150
LH Rake Weldment (SARG-72)
1
812175
LH Rake Weldment (SARG-84)
1
7
812151
Bolted Stub End
2
8
812154
Spring Shaft Weldment
2
9
812161
Spring
2
10
2504275
Hydraulic Cylinder 2 x 14
2
11
2504121
Cotter Pin 3/16" x 1-1/2"
4
12
812157
Side Plate, Bolt-On (SARG-72 / SARG-84)
2
14
2503145
Bolt 1/2"-13NC x 1-1/2" Hex Head Gr. 5
8
15
2502002
Washer 1/2" Spring Lock
8
16
2500003
Nut 1/2"-13NC Full Hex
8
17
2505790
Grommet
1
18
811785
Plate, Short Grommet Cover
1
19
812149
Cover Plate w/Fitting Holes
1
20
2503356
Screw, Thread Cutting 5/16"-18 x 3/4" Slotted Hex Head
4
21
2505035
Spring Bushing 1.25 x 1.00 x 1.00
8
22
2505034
Spring Bushing 1.25 x 1.00 x 0.63
4
23
2503310
Bolt 1"-8NC x 5" Hex Head Gr. 5
2
24
2503259
Bolt 1"-8NC x 8" Hex Head Gr. 5
1
25
2500045
Nut 1"-8NC Nylock Hex
5
26
2504049
Drive Zerk 5/16"
12
27
2503175
Bolt 5/8"-11NC x 1-3/4" Hex Head Gr. 5
6
28
2500094
Nut 5/8"-11NC Toplock Hex Gr. 5
6
29
2505047
Spring Bushing 2.00 x 1.75 x 2.00
4
30
2501001
Washer 1" Flat
12
31
2503254
Bolt 3/4"-10NC x 4-1/2" Hex Head Gr. 5
2
32
2500037
Nut 3/4"-10NC Nylock Hex
2
