Pallet Forks PF-448 Diagram and Parts List

Pallet Forks PF-448 Diagram and Parts List

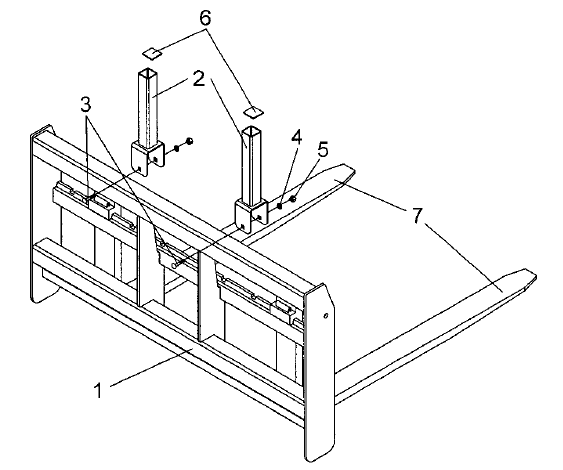

Pallet Forks PF-448 Diagram

Ref #

Part #

Description

# Req'd

1

831831

Frame Weldment (PF-448)

1

2

831835

Backstop Weldment (PF-448)

2

3

2503217

Bolt, Carriage 1/2"-13NC x 4.50" Gr.2

2

4

2502002

Washer, 1/2" Spring Lock

2

5

2500003

Nut, Hex 1/2"-13NC

2

6

2504309

Cap, Plastic (2 x 2)

2

7

831375

Pallet Fork, 48" (4,000# / Pair Capacity)

2

N/S

101037

Safety Sign, Caution (Capacity)

1

N/S

101310

Safety Sign, Warning (Owner's Manual)

1

N/S

101314

Safety Sign, Caution (Fork Limit)

1

N/S

101317

Safety Sign, Warning (Falling Objects)

1

N/S

2504274

Fork Latch Repair Kit
