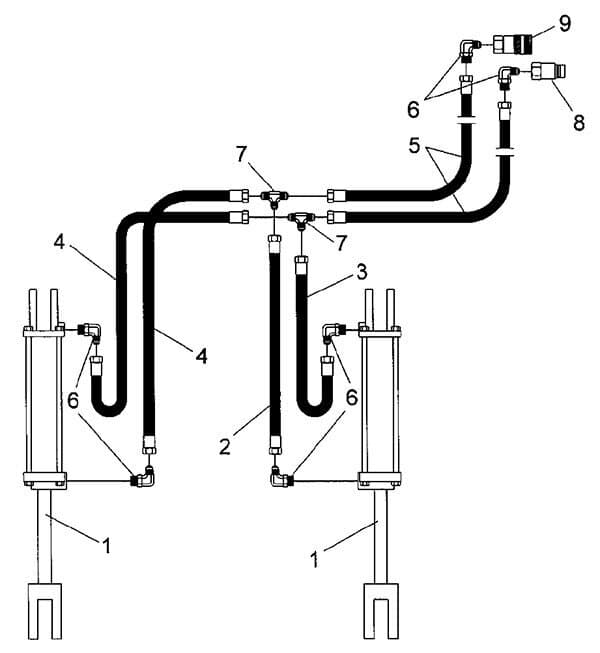

Low Profile Tine Grapple Hydraulic Diagram and Parts List
Low Profile Tine Grapple Hydraulic Diagram and Parts List
Ref #
Part #
Description
# Req'd
1
2504230
Hydraulic Cylinder 2 x 8 (LP Models)
2
2505690
Hydraulic Cylinder 2 x 10 (SA Models)
2
2
2505796
Hose, Hydraulic 1/4" ID x 18"
1
3
2505794
Hose, Hydraulic 1/4" ID x 28"
1
4
2505804
Hose, Hydraulic 1/4" ID x 54"
2
5
2505679
Hose, Hydraulic 1/4" ID x 84"
2
6
2505681
Elbow, 90º Adj. 9/16"-18 to 3/4"-16
6
7
2505685
Tee, Tube 9/16"-18
2
8
2505688
Coupling, SAE 1/2" Male - 3/4"-16 O-Ring
1
9
2505689
Coupling, SAE 1/2" Female - 3/4"-16 O-Ring
1
