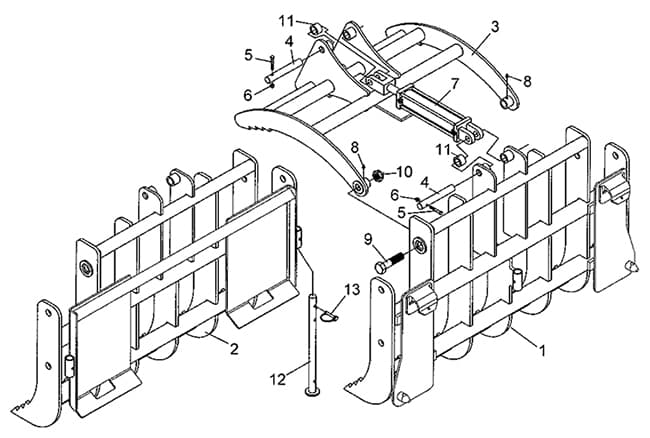

Compact Tractor Tine Grapple Diagram and Parts List
Compact Tractor Tine Grapple Diagram and Parts List
CTMG-48JD & CTMG-48S
Ref #
Part #
Description
# Req'd
1
811856
Mini-Grapple Main Frame (CMTG-48JD only)
1
2
811851
Mini-Grapple Main Frame (CMTG-48S only)
1
3
811834
Clamp Weldment
1
4
811744
Cylinder Pin
2
5
2503119
Bolt 5/16" - 18NC x 2" Hex Head Gr. 5
2
6
2500046
Nut 5/16" - 18NC Hex Nylock
2
7
2504230
Hydraulic Cylinder 2 x 8
1
8
2504049
Zerk, Drive 5/16"
2
9
2503309
Bolt 1"- 8NC x 4" Hex Head Gr. 5
2
10
2500085
Nut 1" - 8NC Jam Nylock
2
11
814462
Spacer, Pin
2
12
343430
Stand Rod Weldment
Var.
13
590194
5/16" Lock Pin (AK-2907)
Var.
NS
101122
Safety Sign - Warning (Hi-Pressure)
1
NS
101288
Safety Sign - Warning (Crushing/Pinching)
1
NS
101289
Safety Sign - Warning (Avoid Injury)
1
NS
101295
Safety Sign - Warning (Crushing Hazard)
