Worksaver

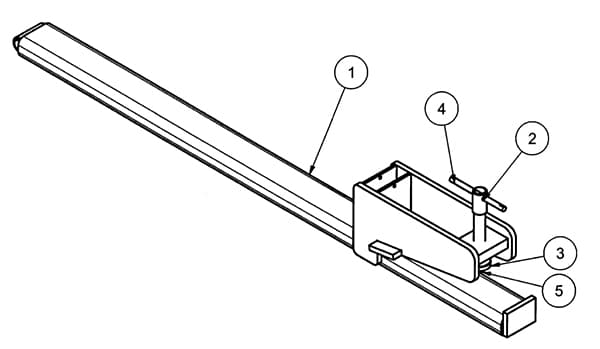

Clamp-On Bucket Pallet Forks BF-1000 Diagram and Parts List

Ref #

Part #

Description

# Req'd

1

831946

Fork Weldment

1

2

831970

Screw Weldment

1

3

831972

Swivel Pad

1

4

590145

Handle, Knock-in

1

5

2503011

Bolt 3/8"-16NC x 1" Hex Head

1

831975

Handle Repair Kit (#'s 2,3,4,5)

1

101408

Safety Sign - Warning

1

101412

Safety Sign - Danger

1

101409

Safety Sign - Capacity (1000 Lbs.)

1
