Snow Blade Optional Hydraulic Angle Kit 360165 Parts List
Snow Blade Optional Hydraulic Angle Kit 360165 Parts List
For Skid Steer Power Units (For Model SBS-2790A only)

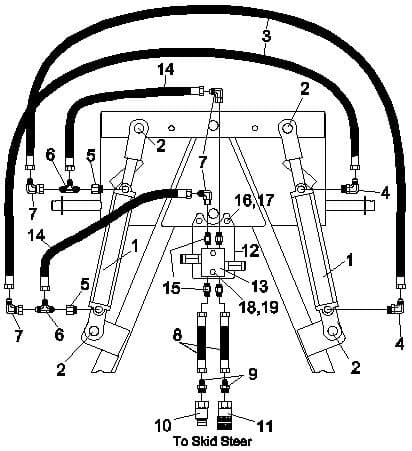

Optional Hydraulic Angle Kit
Ref. #
Part #
Description
# Req.
1
2504230
Hydraulic Cylinder 2 x 8
2
2
2504007
Cotter Pin, 3/16" x 1-3/4"
4
3
2505673
Hose, Hydraulic 1/4" ID x 36"
2
4
2505681
Elbow, 90 Deg. Adj. 9/16"-18 to 3/4"-16
2
5
2505710
Bushing, 3/4"-16 to 9/16"-18
2
6
2505711
Tee, Adjustable 9/16"-18
2
7
2505682
Elbow, 90 deg Swivel 9/16"-18
2
8
2505678
Hose, Hydraulic 1/4" ID x 72"
2
9
2505684
Straight Connector, 9/16"-18 to 3/4"-16
2
10
2505688
Coupling, SAE 1/2" Male - 3/4"-16 O-Ring
1
11
2505689
Coupling, SAE 1/2" Female - 3/4"-16 O-Ring
1
