Worksaver

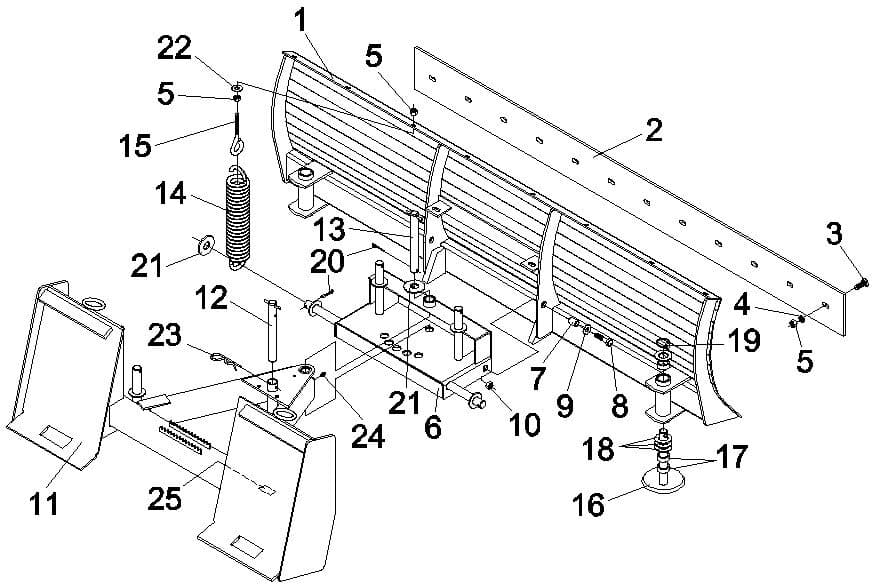

Snow Blade Models SBS-2172 and SBS-2160 Parts List

Skid Steer Mount

Ref. #

Part #

Description

# Req.

1

360101

Moldboard Assembly w/Cutting Edge 60"

1

1

360131

Moldboard Assembly w/Cutting Edge 72"

1

2

360104

Cutting Edge - 60"

1

2

360110

Cutting Edge - 72"

1

3

2503102

Bolt, 1/2"-13NC x 1-1/2" Carriage Head

Var.

4

2502002

Washer, 1/2" Springlock

Var.

5

2500003

Nut, 1/2"-13NC Full Hex

Var.

6

360146

Pivot Box Weldement

1

7

2504249

Bushing, Pivot (3/4" OD x 1/2" ID x 1" Lg)

2

8

2503152

Bolt, 5/8"-11NC x 2" Hex Head Gr.5

2

9

2501005

Washer, 5/8" Flat

2

10

2500094

Nut, 5/8"-11NC Hex Toplock

2

11

360105

Skid Steer / A-Frame Weldment

1

12

360060

Adjustment Pin Assembly

1

13

360062

Main Pivot Pin Assembly

1

14

2504248

Spring, Extension (2-3/4" OD x 14" Lg)

2

15

2503328

Eye Bolt, 1/2"-13NC x 4 3/8"

2

16

346751

Skid Shoe Weldment

2

17

346749

Spacer, Adjustment 3/4"

6

18

2501034

Washer, 1-1/4" SAE Flat

8

19

590006

Linch Pin, 7/16" (AK-14)

2

20

2504068

Cotter Pin, 1/4" x 1-3/4"

3

21

2501014

Washer, 1" Flat

3

22

2501003

Washer, 1/2" Flat

2

23

590000

Clip, Hair Pin 1/4" (A-74740)

1

24

2504049

Drive Zerk, 5/16"

1

25

101386

Serial Number Plate - SBS-2160 (located on tube)

1

25

101387

Serial Number Plate - SBS-2172 (located on tube)

1
