Snow Blade Models SBFL-2160/2172 and SBJD-2160/2172 Parts List
Snow Blade Models SBFL-2160/2172 and SBJD-2160/2172 Parts List

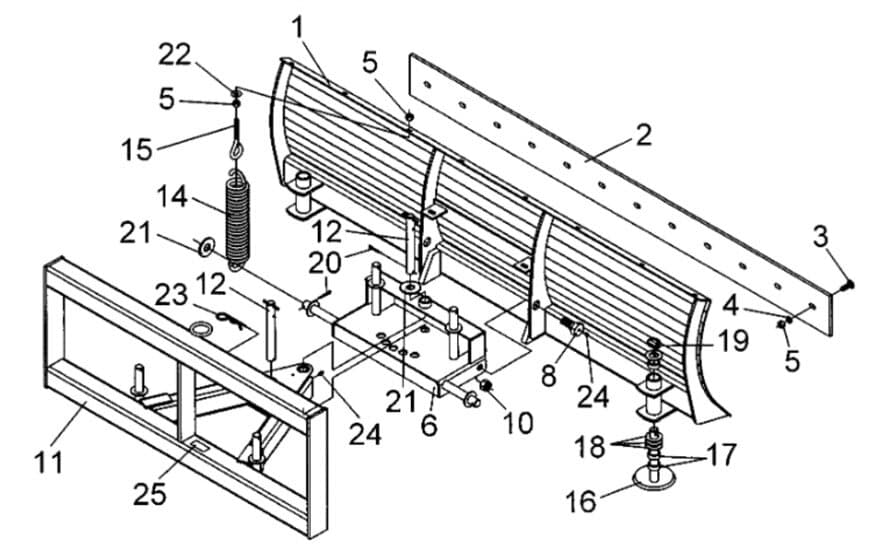

Front Loader Mount Snow Blade
Ref. #
Part #
Description
# Req.
1
360101
Moldboard Assembly w/cutting edge - 60"
1
360131
Moldboard Assembly w/cutting edge -72"
1
2
360104
Cutting Edge - 60"
1
360110
Cutting Edge - 72"
1
3
2503102
Bolt 1/2" - 13NC x 1 1/2" Carriage Head
Var.
4
2502002
Washer 1/2" Springlock
Var.
5
2500003
Nut 1/2" - 13NC Full Hex
Var.
6
360146
Pivot Box Weldment
1
8
360018
Special Pivot Bolt
2
10
2500037
Nut 3/4" - 10NC, Hex Nylock
2
11
360115
Front Loader/A-Frame Weldment
1
NS
360240
John Deere/A-Frame Weldment
1
12
360060
Adjustment Pin Assembly
2
14
2504248
Spring, Extension 2 3/4" OD x 14"Lg
2
15
2503328
Eye Bolt 1/2" - 13NC x 4 3/8"
2
16
346751
Skid Shoe Weldment
2
17
346749
Collar, Adjustment 3/4"
6
18
2501034
Washer 1 1/4" SAE Flat
8
19
590006
Linch Pin 7/16" (AK-14)
2
20
2504068
Cotter Pin 1/4" x 1 3/4"
3
21
2501014
Washer 1" Medium Flat SAE
3
22
2501003
Washer 1/2" Flat
2
23
590000
Clip, Hair Pin 1/4" (A-74740)
1
24
2504049
Drive Zerk 5/16"
3
25
101388
Serial Number Plate - SBFL-2160
1
101389
Serial Number Plate - SBFL-2172
1
