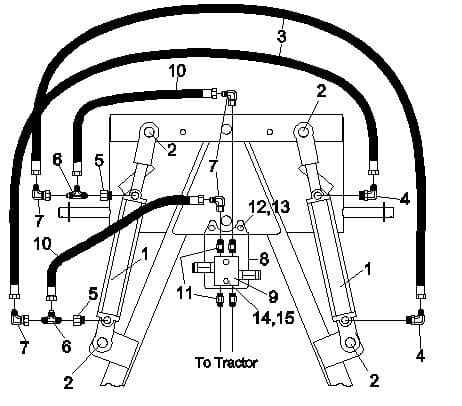

Snow Blade Hydraulic Angle Kit 360168 With Cross-Over Relief Valve Kit 360065 Parts List
Snow Blade Hydraulic Angle Kit 360168 With Cross-Over Relief Valve Kit 360065 Parts List
For Skid Steer Power Units (Standard on Model SBS-27108A and Optional on Model SBS-2790A)
Optional Hydraulic Angle Kit
Ref. #
Part #
Description
# Req.
1
2504230
Hydraulic Cylinder 2 x 8
2
2
2504007
Cotter Pin 3/16" x 1 3/4" Coated
4
3
2505673
Hose, Hydraulic 1/4" ID x 36"
2
4
2505681
Elbow, 90º Adj. 9/16" -16 to 3/4"-16
2
5
2505710
Bushing 3/4"-16 to 9/16"-18
2
6
2505711
Tee, Adjustable 9/16" - 18
2
7
2505682
Elbow, 90º Swivel 9/16" - 18
4
8
360060
Plate, Mounting (Cross-Over Relief)
1
9
2505713
Valve, Cross Over Relief
1
10
2505671
Hose, Hydraulic 1/4" ID x 24"
2
11
2505683
Straight Connector 9/16" - 18
4
12
2503011
Bolt 3/8" - 16NC x 1" Hex Head Gr. 2
2
13
2500061
Nut 3/8" -16NC Whlz Flange Hex
2
14
2503111
Bolt 5/16" -16NC x 1 3/4" Hex Head Gr2
2
15
2500080
Nut 5/16"- 16NC Whlz Flange Hex
2
