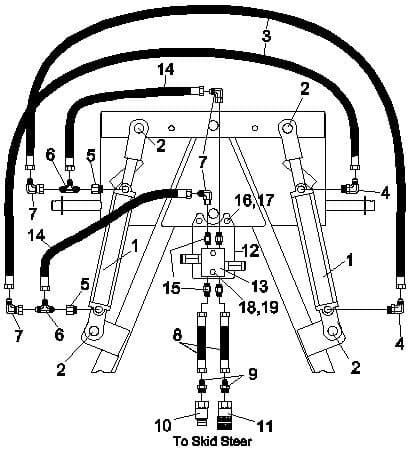

Snow Blade Hydraulic Angle Kit 360165 Shown With Optional Cross-Over Relief Valve Kit 360065 Parts List
Snow Blade Hydraulic Angle Kit 360165 Shown With Optional Cross-Over Relief Valve Kit 360065 Parts List
For Skid Steer Power Units (Standard on Model SBS-27108A and Optional on Model SBS-2790A)
Optional Hydraulic Angle Kit
Ref. #
Part #
Description
# Req.
1
2504230
Hydraulic Cylinder 2 x 8
2
2
2504121
Cotter Pin 3/16" x 1 1/2"
4
3
2505673
Hose, Hydraulic 1/4" ID x 36"
2
4
2505681
Elbow, 90 Deg. Adj. 9/16"-18 to 3/4"-16
2
5
2505710
Bushing, 3/4"-16 to 9/16"-18
2
6
2505711
Tee, Adjustable 9/16" - 18
2
7
2505682
Elbow, 90º Swivel 9/16" - 18
2
8
2500676
Hose, Hydraulic 1/4" ID x 72"
2
9
2505684
Straight Connector 9/16" -16 to 3/4 -16
2
10
2505688
Coupling, SAE 1/2" Male - 3/4"16 O-ring
1
11
2505689
Coupling, SAE 1/2" Female-3/4"16 O-ring
1
12
360066
Plate, Mounting (Cross-Over Relief)
1
13
2505713
Valve, Cross Over Relief
1
14
2505671
Hose, Hydraulic 1/4" ID x 24"
2
15
2505683
Straight Connector 9/16" - 18
4
16
2503011
Bolt 3/8" - 16NC x 1" Hex Head Gr. 2
2
17
2500061
Nut 3/8" - 16NC Whlz Flange Hex
2
18
2503111
Bolt 5/16"- 18NC x 1 3/4" Hex Head Gr2
2
19
2500060
Nut 5/16" - 18NC Whlz Flange Hex
2
