Skid Steer Rotary Broom Parts List

Skid Steer Rotary Broom Parts List

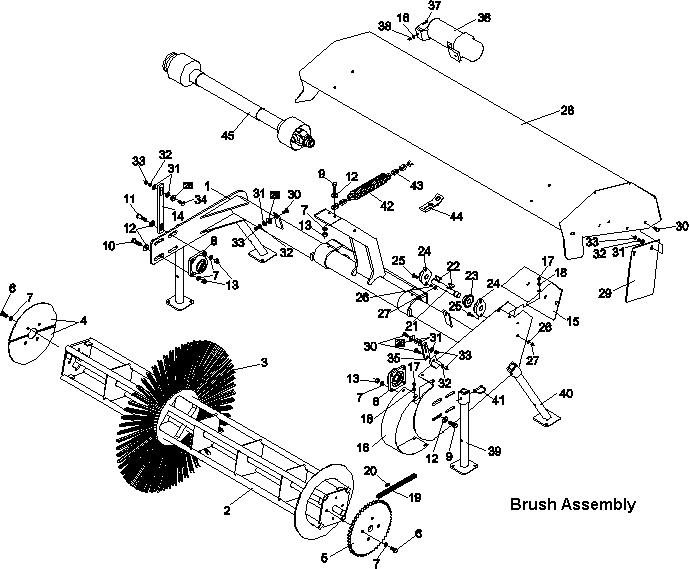

Skid Steer Rotary Broom Diagram

Skid Steer Rotary Broom Specifications

Ref #

Part #

Description

# Reqd

1

610866

Frame Weldment (6 Ft.)

1

1

610715

Frame Weldment (7 Ft.)

1

2

610735

Brush Core Weldment (6 ft)

1

2

610740

Brush Core Weldment (7 ft)

1

3

610860

Wafer, 10x32 Poly

Var.

3

610865

Wafer, 10x32 Wire (PW Models Only)

Var.

4

610721

Retainer Plate, Wafer Lock

2

5

2506021

Sprocket, Large 60A48

1

6

2503332

Bolt, 1/2"-13NC x 1" Hex Head Gr.5

6

7

2502002

Washer, 1/2" Springlock

18

8

2505043

Bearing, 4-Bolt Flange

2

9

2503145

Bolt, 1/2"-13NC x 1-1/2" Hex Head Gr.5

6

10

2503265

Bolt, 1/2"-13NC x 1-3/4" Hex Head Gr.5

3

11

2503118

Bolt, 1/2"-13NC x 2" Hex Head Gr.5

1

12

2501003

Washer, 1/2" Flat

10

13

2500003

Nut, 1/2"-13NC Full Hex

10

14

610799

Strap, Shield Adjustment

1

15

610722

Shield, Upper chain

1

16

610723

Shield, Lower chain

1

17

2503326

Bolt, 1/4"-20NC x 3/4" Flange Hex

6

18

2501006

Washer, 1/4" Flat

10

19

610846

Chain, #60 Roller

1

20

2506022

Master Link #60

1

21

610773

Jack Shaft, ¢1.00" x 7.00"

1

22

2505701

Key, Woodruff #22

2

23

2506019

Sprocket, small 60B11

1

24

2505041

Bearing, 2-Bolt Flange

2

25

2503110

Bolt, 5/16"-18NC X 1" Carriage Head

4

26

2502011

Washer, 5/16" Springlock

4

27

2500011

Nut, 5/16"-18NC Full Hex

4

28

610861

Brush Guard Weldment (6 Ft.)

1

28

610781

Bruch Guard Weldment (7 Ft)

1

29

610749

Shield, Bristle

1

30

2503055

Bolt, 3/8"-16NC x 1" Carriage Head

6

31

2501004

Washer, 3/8" Flat

9

32

2502008

Washer, 3/8" Springlock

7

33

2500004

Nut, 3/8"-16NC Full Hex

7

34

2503178

Bolt, 3/8"-16NC x 1-1/4" Carriage Head

1

35

610837

Head Support Bracket

1

36

2504225

Manual Holder, Plastic

1

37

2503116

Bolt, 1/4"-20NC x 1" Hex Head Gr.2

2

38

2500008

Nut, 1/4"-20NC Full Hex

2

39

610726

Stand Tube (Rear)

2

40

610731

Stand Tube (Front)

2

41

590194

Lock Pin, 5/16" (AK-2907)

4

42

610849

Spring, Extension

1

43

610851

Chain, Boom Pivot Limit (33 Links)

2

44

610879

Bracket, Chain Adjustment

1

45

610790

Driveline, Gearbox to Brush

1

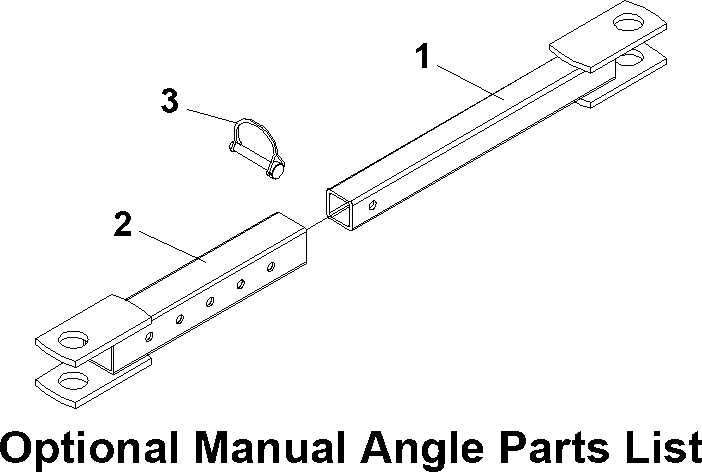

adjustment link skid steer diagram

Optional Manual Angle Specifications

Ref #

Part #

Description

# Reqd

610702

Complete Manual Angle Kit

1

1

610826

Link, Manual Angle Male

1

2

610831

Link, Manual Angle Female

1

3

590194

Lock Pin 5/16" (AK-2907)

1
