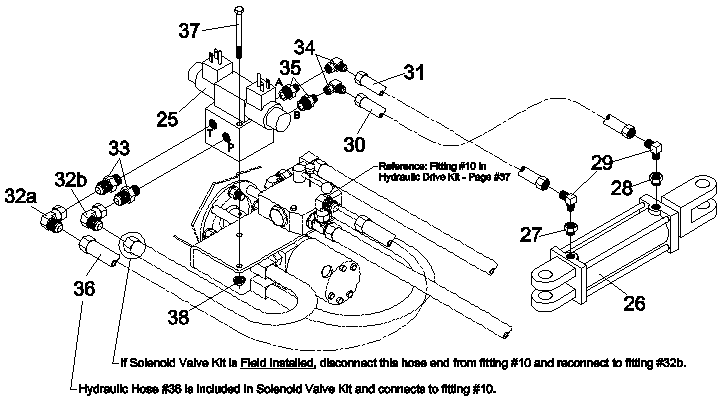

Optional Hydraulic Swing Solenoid Valve Kit Parts List

25

2505720

Solenoid Valve w/Harness

1

26

2504256

Hydraulic Cylinder 2 x 6

1

27

2505626

Reducer Bushing 3/8" - 1/4" w/.040 Orifice

1

28

2505517

Reducer Bushing 3/8" - 1/4"

1

29

2505715

Elbow, 90º Male 9/16" - 18 (JIC) to 1/4" NPTF

2

30

2505732

Hose, Hydraulic 1/4" ID x 42"

1

31

2505733

Hose, Hydraulic 1/4" ID x 48"

1

32

2505724

Elbow, 90º Swivel 7/8" - 14

2

33

2505728

Straight Connector 7/8" - 14 (JIC) to 3/4" - 16 O-Ring

2

34

2505682

Elbow, 90º Swivel 9/16" - 18

2

35

2505684

Straight Connector 9/16" - 18 (JIC) to 3/4" - 16 O-Ring

2

36

2505729

Hose, Hydraulic 1/2" ID X 30"

1

37

2503208

Bolt 3/8" - 16NC x 4" Hex Head Gr. 2

2

38

2500081

Nut 3/8" - 16NC Whiz Flange Hex

2
