Worksaver

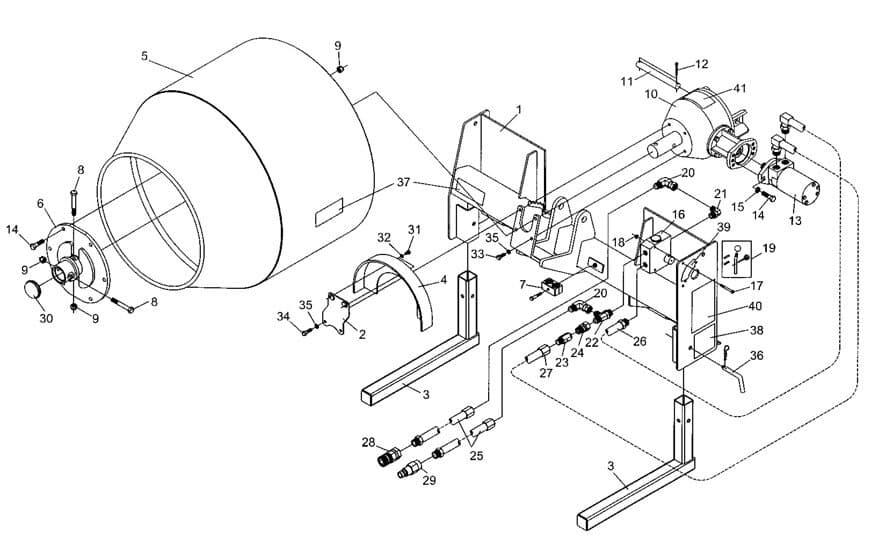

Hydraulic Concrete Mixer Model SS-590 Parts List

Ref. #

Part #

Description

# Req.

1

780965

Main Frame Weldment (SS-590 Mixer)

1

2

780977

Guard Support Weldment

1

3

780975

Mixer Leg Weldment

2

4

780970

Guard Weldment

1

5

780945

Drum Weldment

1

6

780951

Hub Weldment

1

7

2505586

Hose Clamp Assembly

1

8

2503264

Bolt 1/2" - 13NC x 3 1/2" Hex Head Gr. 5

2

9

2500039

Nut 1/2" - 13NC Nylock Hex

8

10

706403

Gearbox w/Input Flange Assembly

1

11

706096

Gearbox Pin

1

12

706097

Cotter Pin 3/16" x 2"

2

13

2505704

Hydraulic Motor (Parker)

1

14

2503265

Bolt 1/2" -13NC x 1 3/4" Hex Head Gr. 5

8

15

2502002

Washer 1/2" Springlock

2

16

2505583

Valve, Flow Control (Prince)

1

17

2503249

Bolt 1/4" -20NC x 2 1/4" Hex Head Gr. 2

2

18

2500008

Nut 1/4" -20NC Whix Flange Hex

2

19

2505590

Handle Hardware Kit for Flow Control Valve

1

20

2505736

Elbow, 90° Swivel 3/4"

2

21

2505737

Elbow, 90° Adjustable 3/4"

1

22

2505738

Tee, Adjustable 3/4"

1

23

2505757

Valve, Check

1

24

2505758

Connector 3/4"

1

25

2505739

Hose, Hydraulic 1/2" ID x 120"

2

26

2505740

Hose, Hydraulic 1/2" ID x 24" w/90° Fitting

1

27

2505741

Hose, Hydraulic 1/2" ID x 20" w/90° Fitting

1

28

2505689

SAE Coupling 1/2" Female - 3/4" 16 ORB

1

29

2505688

SAE Coupling 1/2" Male - 3/4" 16 ORB

1

30

2506024

Dust Cap

1

31

2503105

Bolt 5/16" -18NC x 1/2" Hex Head Gr. 2

2

32

2502011

Washer 5/16" Springlock

2

33

2503011

Bolt 3/8" -16NC x 1" Hex Head Gr. 2

2

34

2503020

Bolt 3/8" - 16NC x 1 1/4" Hex Head Gr. 5

2

35

2502008

Washer 3/8" Springlock

4

36

341857

Shift Pin w/Hair Clip Pin

2

37

101027

Safety Sign - Warning (Stand Clear)

2

38

101122

Safety Sign - Warning (Hi-Pressure)

1

39

101197

Decal - Speed Control

1

40

101307

Safety Sign - Mixer Instructions

1

41

101188

Decal - Gearbox Notice

1
