Standard Duty Auger

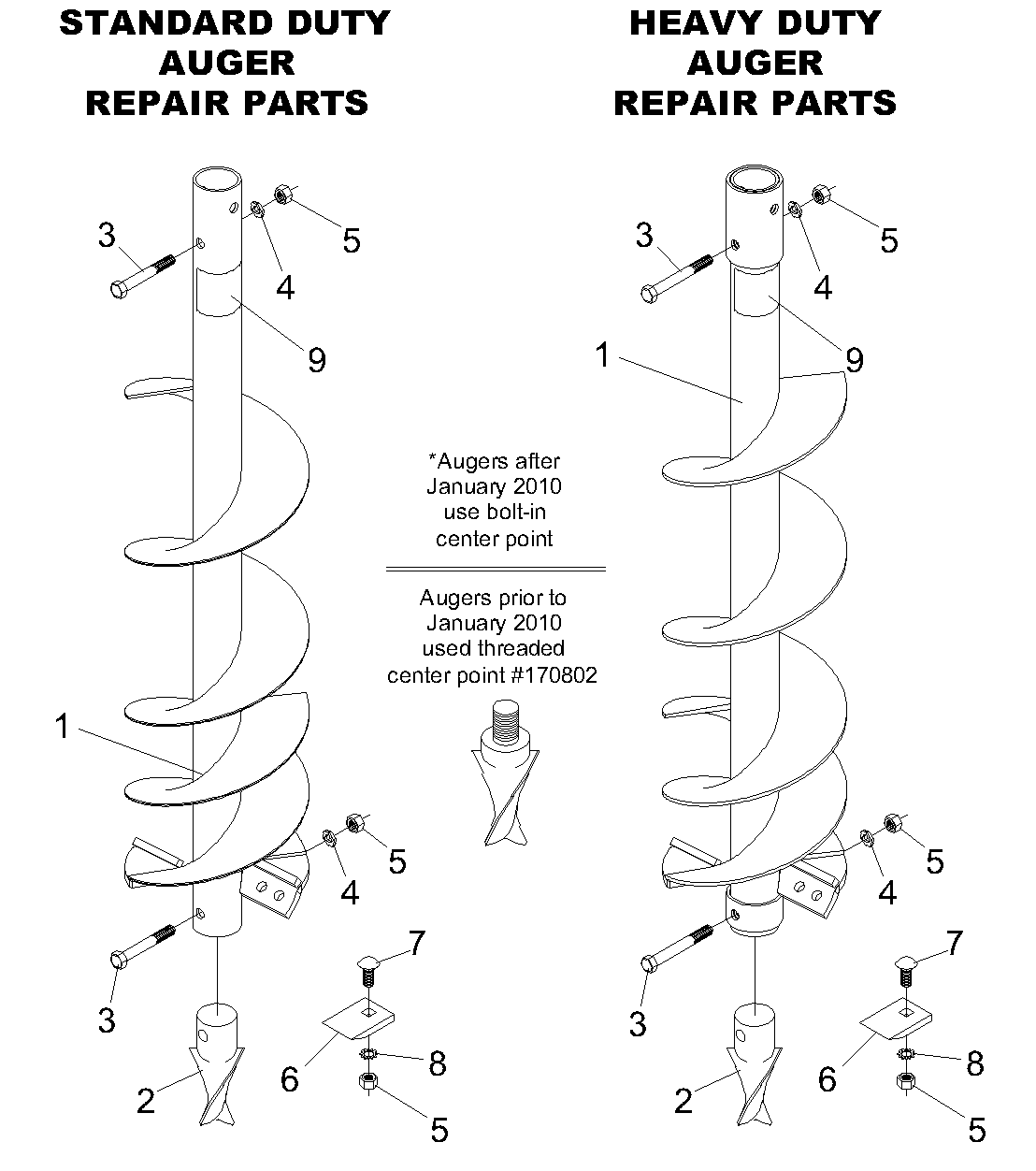

Standard Duty Auger Repair Parts List
Standard Duty Auger Specifications
Ref #
Part #
Description
# Reqd
1
170585
6" Dia. Standard Duty Auger (Complete)
1
170710
9" Dia. Standard Duty Auger (Complete)
1
170720
12" Dia. Standard Duty Auger (Complete)
1
2
170430
Fishtail Auger Point (Bolt-in)
1
170802
Fishtail Auger Point (Threaded)
1
3
2503012
Bolt 1/2" - 13NC x 3" Hex Head Gr. 2
3
4
2502002
Washer 1/2" Springlock
3
5
2500003
Nut 1/2" - 13NC Full Hex
Var.
6
706021
Red Claw Digger Tooth
Var.
7
2503166
Bolt 1/2" -13NC x 1 1/4" Carriage Head Gr. 2
Var.
8
2502003
1/2" External Star Lockwasher
Var.
9
101131
Safety Sign - Danger (Guard Missing)
1
