Optional 12" Auger Extension

Optional 12" Auger Extension Parts List

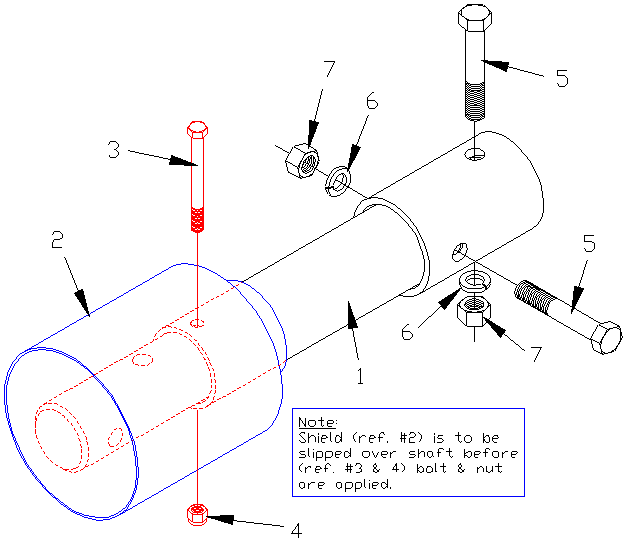

Optional 12" Auger Extension Diagram

Optional 12" Auger Extension Specifications

Ref #

Part #

Description

# Reqd

1

170701

12" Ext. Weldment

1

2

170706

Guard Assembly Weldment

1

3

2503114

Bolt, 5/16"-18NC x 3" Hex Head Gr.2

1

4

2500046

Nut, 5/16"-18NC Nylock Hex

1

5

2503012

Bolt, 1/2"-13NC x 3" Hex Head Gr.2

2.

6

2502002

Washer, 1/2" Springlock

2

7

2500003

Nut, 1/2"-13NC Full Hex

2
